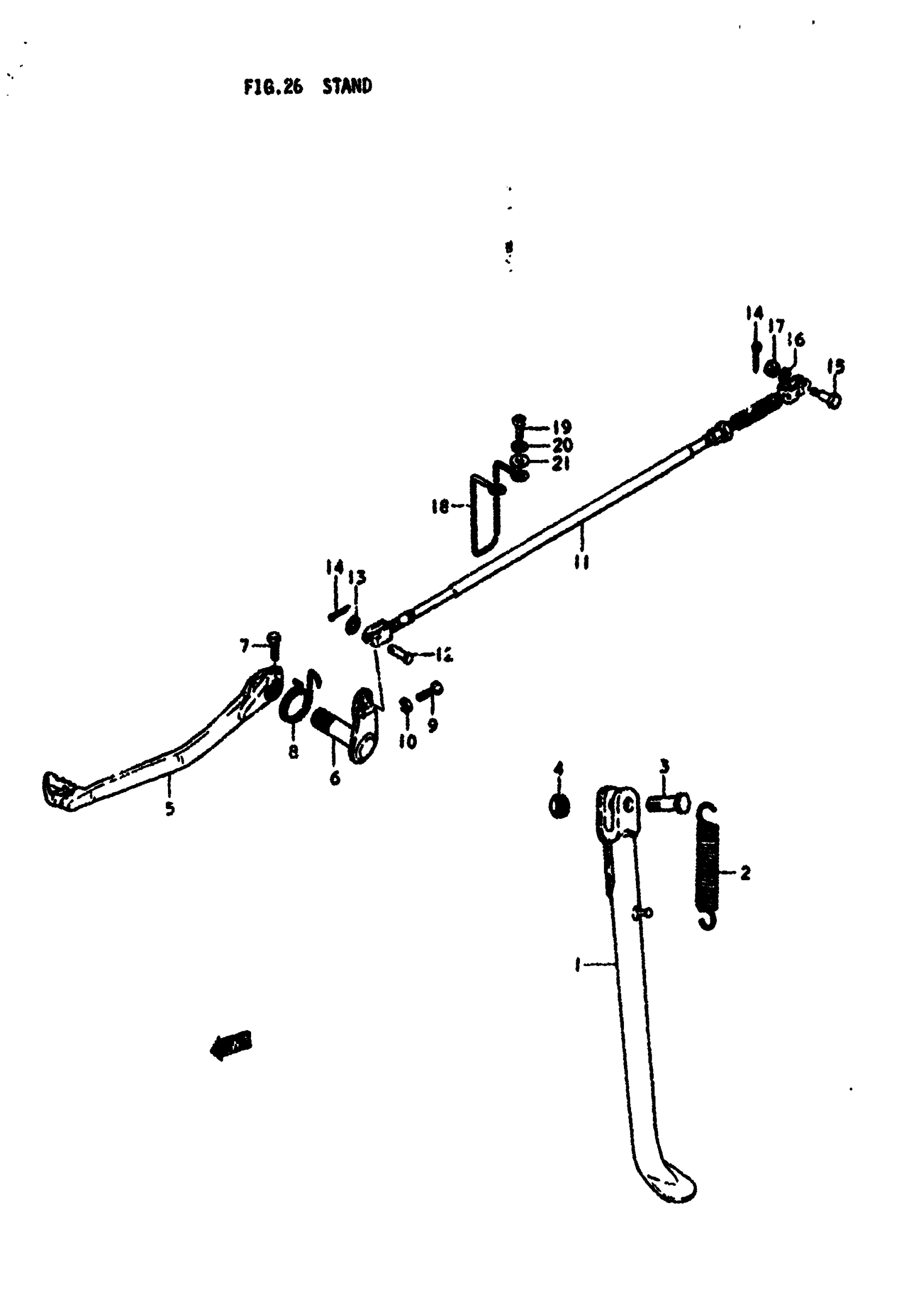

Suzuki SP370 (1979) STAND Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 42310-32400.

42310-48700-019

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT | 10x30

09100-10067

$2.61

4

NUT This part replaces 08310-22108.

08310-00107

$2.19

5

PEDAL, BRAKE

43110-32400

Unavailable

6

ARM, PADAL

43120-32400

Unavailable

7

BOLT This part replaces 01107-06208.

01500-06207

$2.28

8

NO DESCRIPTION AVAILABLE This part replaces 09448-25005.

09448-25005-XC0

Unavailable

9

BOLT | 6x27

09100-06009

$1.91

10

.NUT This part replaces 08310-11068.

08310-00067

$2.13

11

CABLE, REAR BRAKE

58510-32400

Unavailable

12

PIN

09200-05001

$1.65

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

15

BOLT

09111-06024

Unavailable

16

SHIM

09181-08002

Unavailable

17

NUT This part replaces 08319-31068.

08319-31067

$2.03

18

GUIDE, BRAKE CABLE

58642-32400

Unavailable

19

BOLT This part replaces 01107-06128.

01500-06127

$1.97

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13
