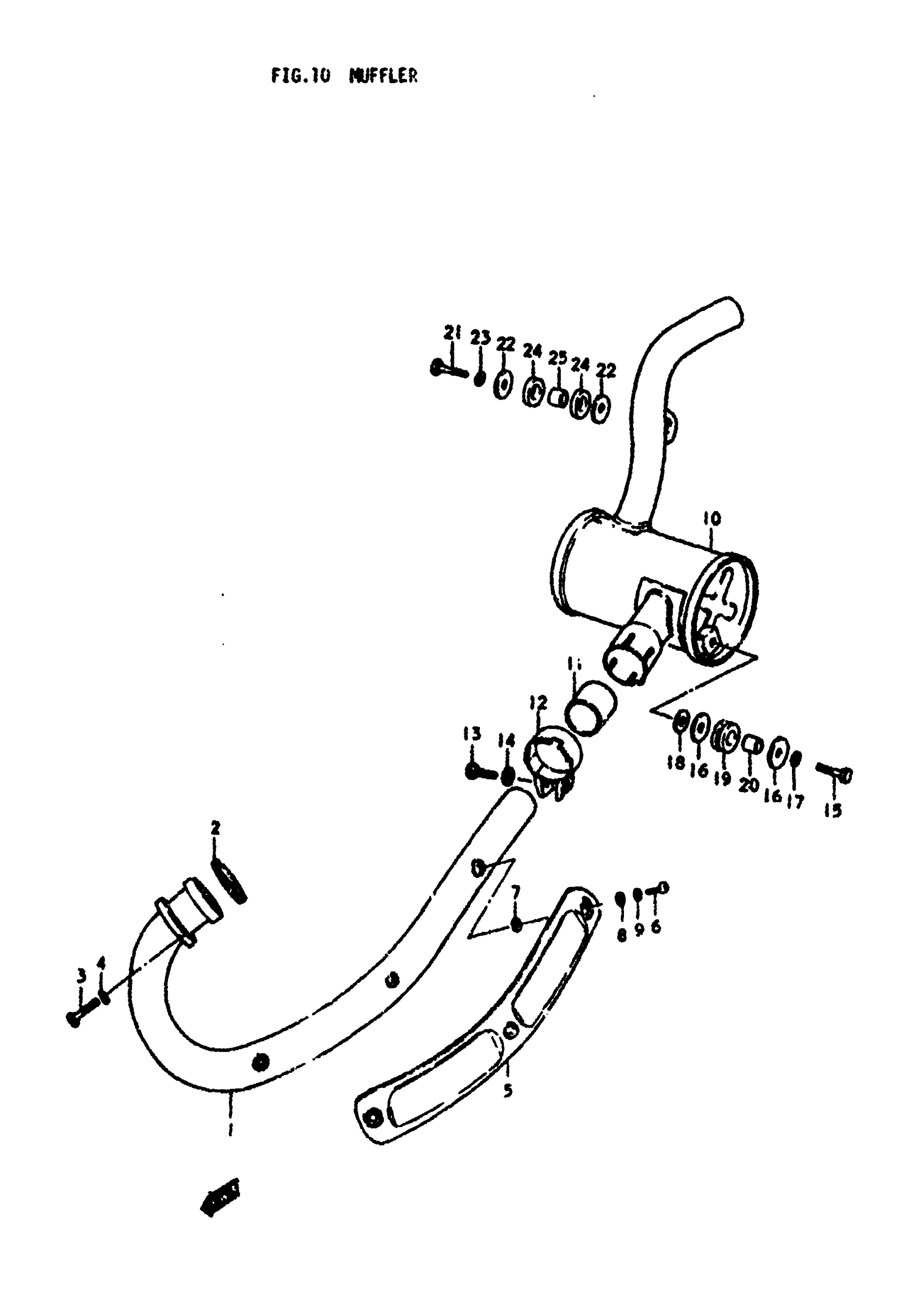

Suzuki SP370 (1979) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-32400

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

3

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

COVER

14186-32400

Unavailable

6

SCREW This part replaces 02112-05108.

02112-05107

$1.49

7

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

8

WASHER This part replaces 08322-21058.

08322-01057

$2.13

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

NO DESCRIPTION AVAILABLE This part replaces 14310-32400.

14310-32400-H01

Unavailable

11

CONNECTOR,MUFFL This part replaces 14771-32400.

14771-38200-H17

Unavailable

12

CLAMP

14469-32400

Unavailable

13

BOLT | 8x35 This part replaces 09100-08148.

01500-0835B

$3.04

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

BOLT This part replaces 01107-08308.

01500-08307

$3.04

16

WASHER, EXHAUST SUPPORT | 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

GASKET

09168-08010

Unavailable

19

CUSHION This part replaces 09320-14008.

09320-13007

$3.49

20

SPACER | 8.6x13.8x13

09180-08076

Unavailable

21

BOLT | 8x27

09100-08083

$2.72

22

WASHER, EXHAUST SUPPORT | 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

CUSHION

09320-14009

Unavailable

25

SPACER | 8.6x13.8x13

09180-08076

Unavailable
