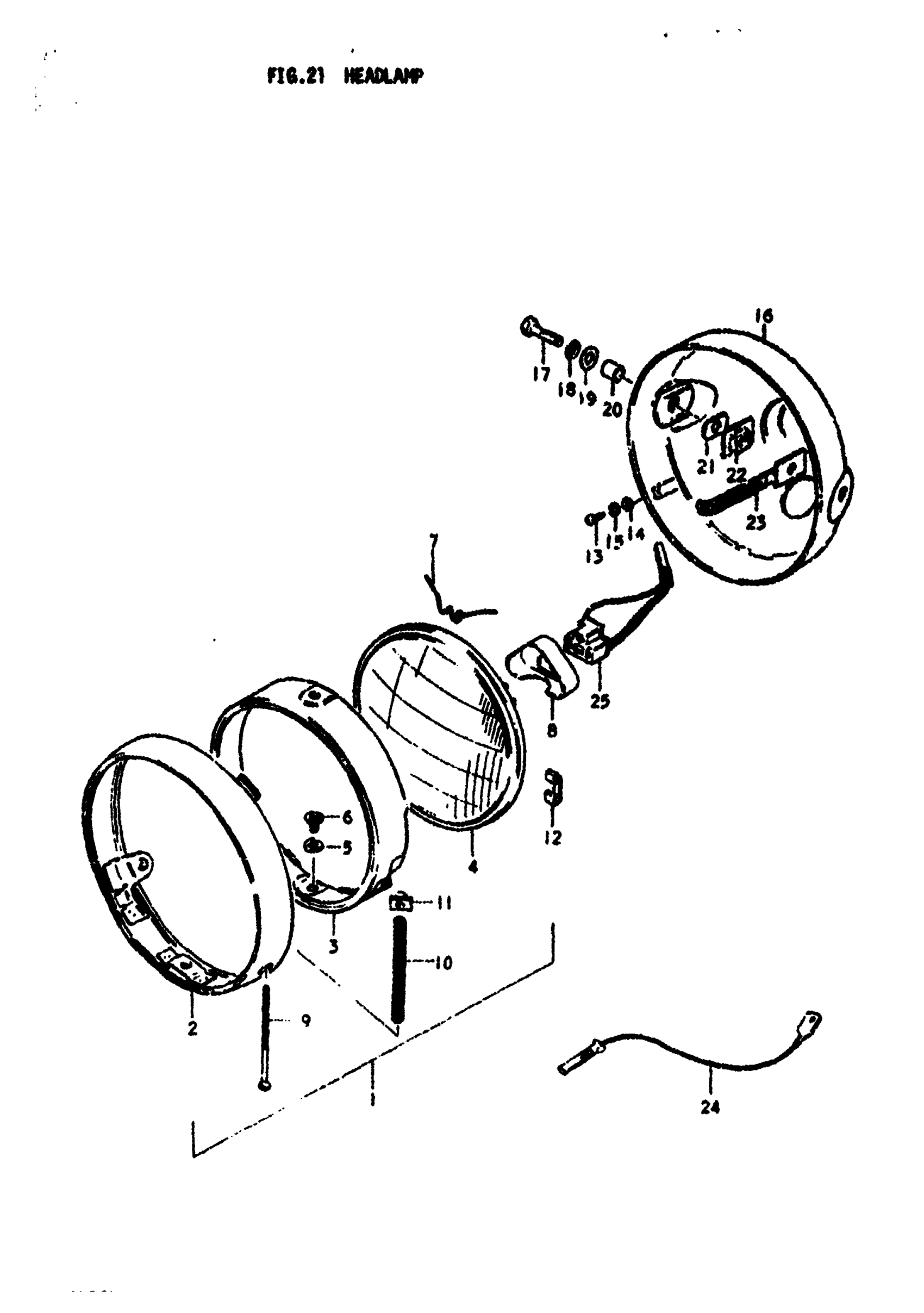

Suzuki SP370 (1979) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 12

35100-32410

Unavailable

2

RIM This part replaces 35111-29610.

35111-29611

Unavailable

3

RING

35127-29610

Unavailable

4

UNIT | 6V, 35/35W

35121-32410

Unavailable

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

SCREW

35136-29610

Unavailable

7

SPRING

35128-29611

Unavailable

8

COVER, SOCKET

35173-29610

Unavailable

9

SCREW

35151-31610

Unavailable

10

SPRING This part replaces 35154-29610.

35154-33630

Unavailable

11

NUT

35152-15611

$3.25

12

COVER

35174-29610

Unavailable

13

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

14

WASHER This part replaces 08322-21048.

08322-01047

$1.86

15

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

16

HOUSING, HEAD LAMP

51811-29302-291

Unavailable

17

BOLT

01204-08257

$1.96

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

SPACER, TAIL COVER RR RR This part replaces 09180-08050.

09180-08199

$2.12

21

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

22

PLATE, RH

51860-45000

$4.43

23

PLATE,HEADLAMP This part replaces 51820-45000.

51820-45001

$5.50

24

LEAD WIRE, DC LIGHTING

36811-27610

Unavailable

25

LEAD WIRE, HEADLAMP This part replaces 36852-34000.

36853-30500

$11.63
