Partiron

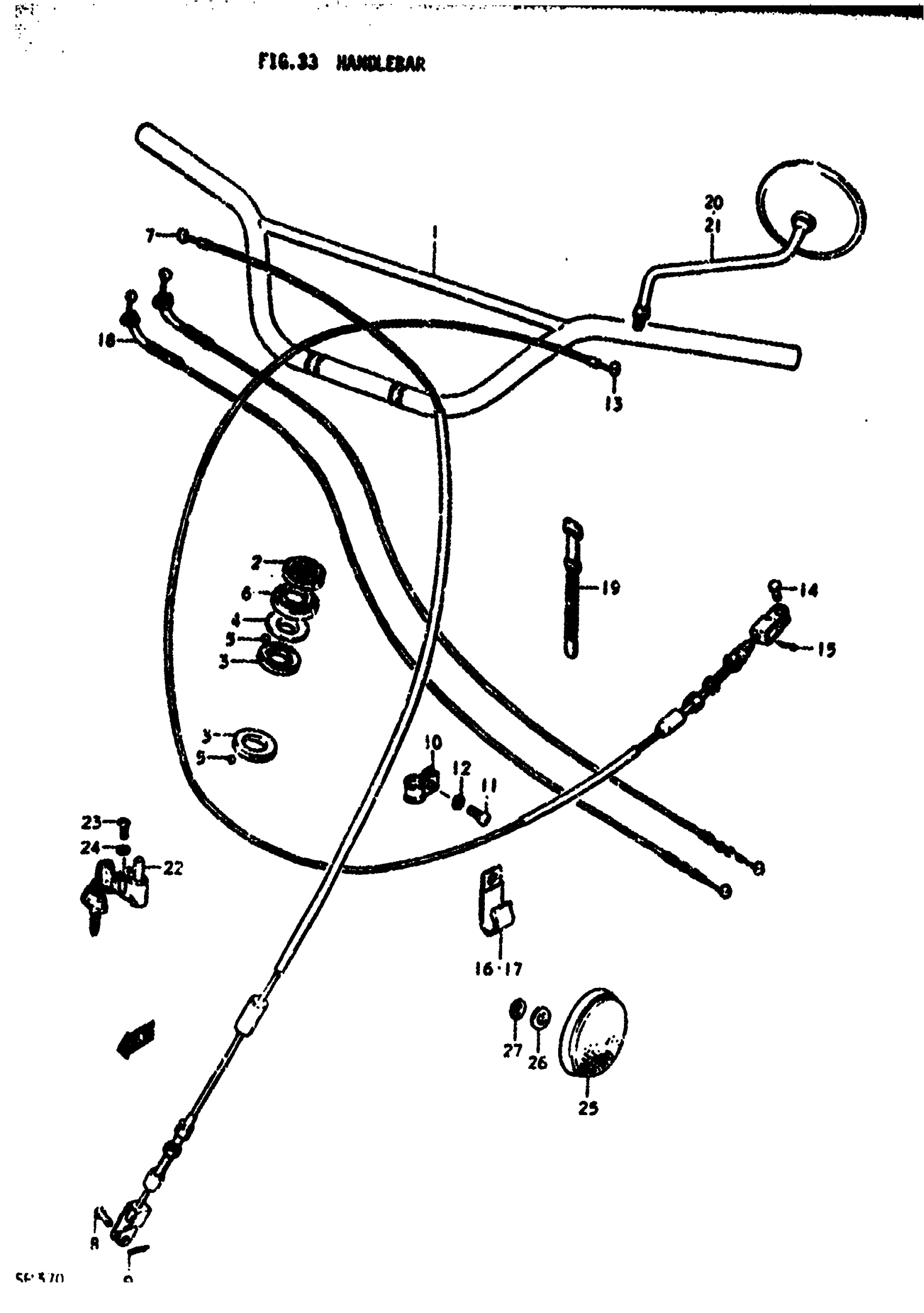

Suzuki SP370 (1979) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-32400

Unavailable

2

NUT, STEERING STEM

51631-28000

$17.37

3

INNER RACE | C

51611-33002

$13.81

4

OUTER RACE, UPPER

51621-30001

Unavailable

5

STEEL BALL

06111-08003

$1.49

6

DUST SEAL

51643-30000

Unavailable

7

CABLE, FRONT BRAKE | L:1160, L:145 This part replaces 58100-32400.

58100-32401

Unavailable

8

PIN

09200-05001

$1.65

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

10

GUIDE, CABLE This part replaces 58621-32400.

58621-40401

Unavailable

11

SCREW This part replaces 02112-06108.

02112-06107

$1.49

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

CABLE, CLUTCH | C; L:1090, L:144 This part replaces 58200-32400.

58200-37330

Unavailable

13

CABLE, CLUTCH | N; L:134 This part replaces 58200-32401.

58200-37330

Unavailable

14

PIN

09200-06011

Unavailable

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

16

CLAMP This part replaces 09403-00059.

09404-08420

$3.16

17

CLAMP This part replaces 09403-00069.

09404-06037

Unavailable

18

CABLE,THROTTLE This part replaces 58300-32400.

58300-32402

Unavailable

19

BAND | C; L:120N; L:120

09407-12402

$3.04

20

MIRROR ASSY,RR This part replaces 56500-47010.

56500-45014

$64.82

21

MIRROR ASSY,RR This part replaces 56600-47010.

56600-45014

$64.82

22

LOCK ASSY, STEERING This part replaces 51910-25310.

51910-25311

$40.33

23

SCREW This part replaces 02112-05128.

02112-05127

$1.97

24

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

25

REFLEX REFLECTOR, FRONT SIDE

35950-45010

$17.09

26

WASHER This part replaces 08322-21058.

08322-01057

$2.13

27

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
