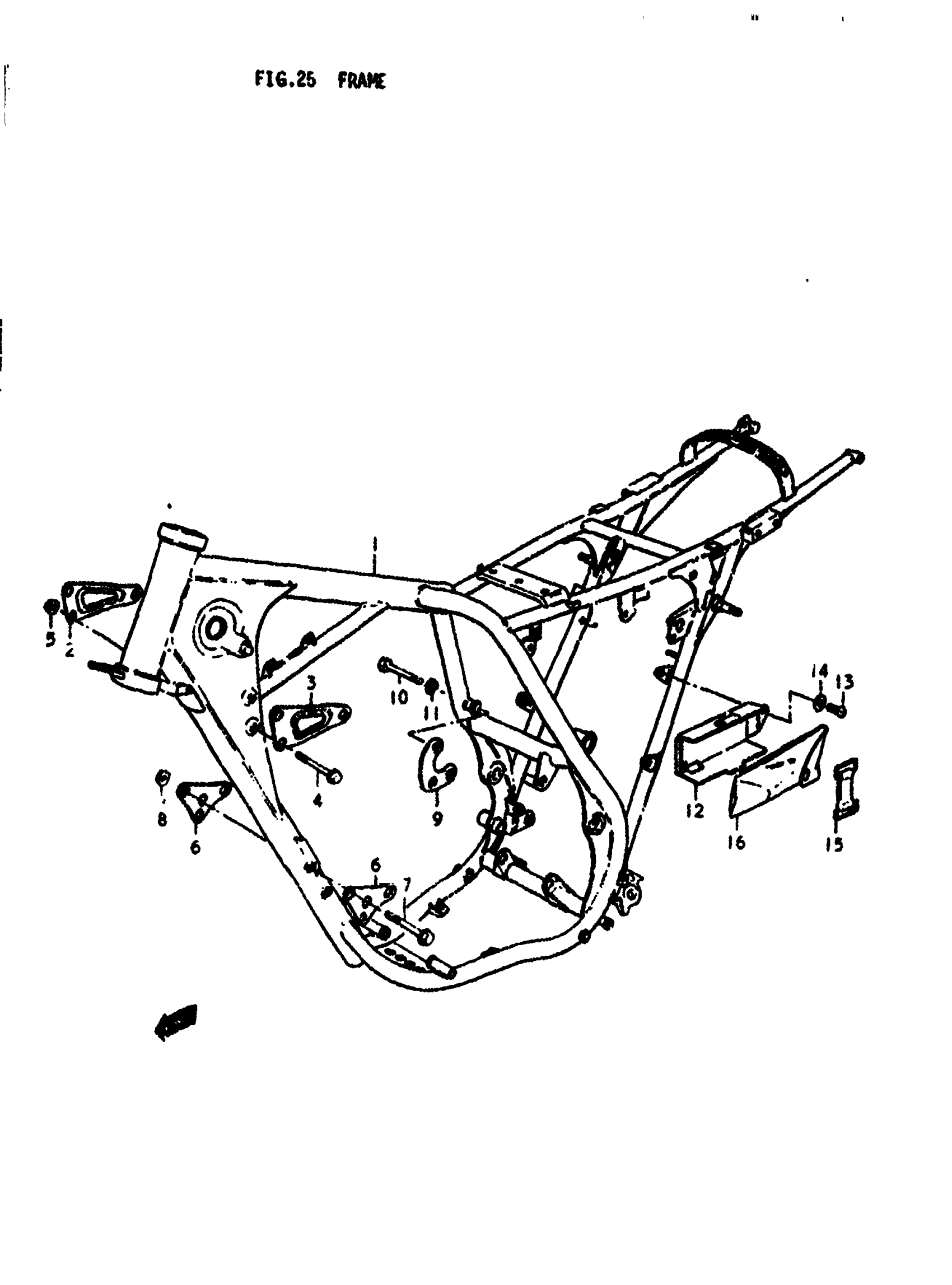

Suzuki SP370 (1979) FRAME Diagram

#

Description
Price

1

FRAME | C

41100-32400-019

Unavailable

1

FRAME | N This part replaces 41100-32401-019.

41100-32402-019

Unavailable

2

PLATE, ENGINE MOUNTING UPPER R

41991-32400

Unavailable

3

PLATE, ENGINE MOUNTING UPPER L

41992-32400

Unavailable

4

BOLT This part replaces 01517-06708.

01550-06707

$4.30

5

NUT This part replaces 08319-31068.

08319-31067

$2.03

6

PLATE, ENGINE MOUNTING LOWER

41993-32400

Unavailable

7

BOLT This part replaces 01517-08708.

01550-08707

$3.91

8

NUT This part replaces 08319-31088.

08319-3108A

$2.32

9

PLATE, ENGINE MOUNTING REAR | N

41990-32400

Unavailable

10

BOLT | N This part replaces 01107-08608.

01500-0860B

$3.49

11

.LOCK WASHER | N This part replaces 08321-21088.

08321-01087

$2.13

12

HOLDER, TOOL

41550-32400

Unavailable

13

SCREW This part replaces 02112-06108.

02112-06107

$1.49

14

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

15

BAND

09462-00017

$3.23

16

TOOL ASSY This part replaces 09800-00185.

09800-21028

$33.02
