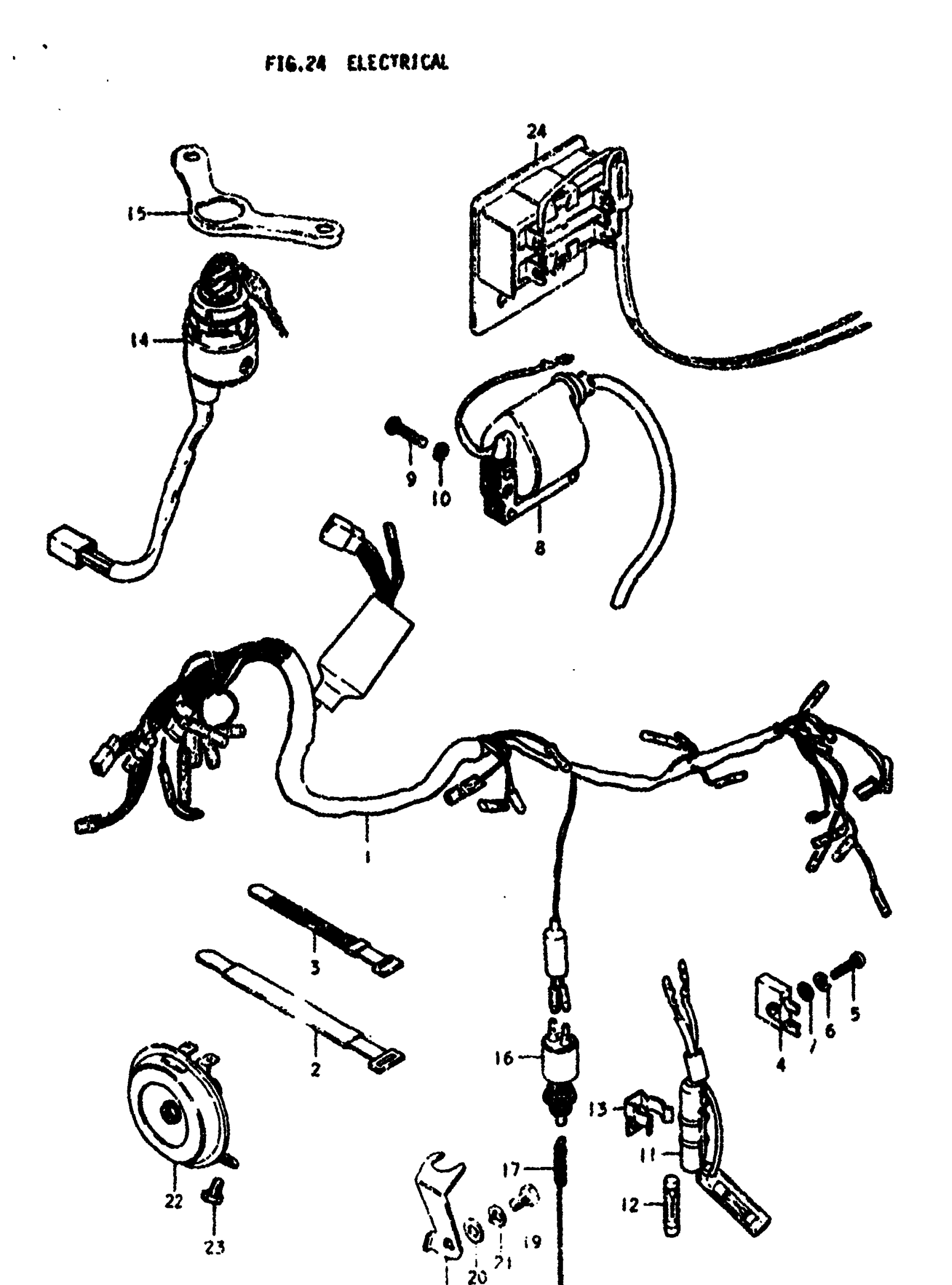

Suzuki SP370 (1979) ELECTRICAL Diagram

#

Description
Price

1

WIRING HARNESS | C This part replaces 36610-32400.

36610-32402

Unavailable

1

WIRING HARNESS | N

36610-32402

Unavailable

2

CLAMP | L:110 This part replaces 09407-11302.

09407-18302

$2.28

2

CLAMP | L:180 This part replaces 09407-18301.

09407-18302

$2.28

3

CLAMP

09407-12402

$3.04

4

DIODE This part replaces 32800-19063.

32800-16A00

$23.07

5

SCREW This part replaces 02112-05208.

02112-05207

$1.97

6

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

7

WASHER This part replaces 08322-21058.

08322-01057

$2.13

8

COIL ASSY,IGNIT This part replaces 33410-43010.

33410-43011

Unavailable

9

SCREW This part replaces 02112-06208.

02112-06207

$1.78

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

FUSE CASE ASSY | Includes Item(s) 12 This part replaces 36740-15010.

36740-15011

$9.38

12

FUSE | 15A

09481-15001

$2.06

13

HOLDER

36791-25001

Unavailable

14

SWITCH ASSY, IGNITION This part replaces 37110-25318.

37110-25319

$97.62

15

BRACKET, IGNITION SWITCH This part replaces 37115-48000.

37115-36001

Unavailable

16

SWITCH ASSY, STOP LAMP

37610-53011

$30.75

17

SPRING

09443-06019

$3.42

18

BRACKET | N

43251-32400

Unavailable

19

BOLT | N This part replaces 01107-06108.

01500-06107

$2.06

20

WASHER | N This part replaces 08322-21068.

08322-01067

$2.13

21

LOCK WASHER | N This part replaces 08321-21068.

08321-01067

$2.13

22

HORN ASSY This part replaces 38500-32470.

38500-32472

Unavailable

23

BOLT This part replaces 01107-06108.

01500-06107

$2.06

24

NO DESCRIPTION AVAILABLE | OPT This part replaces 36510-32411.

36510-32412

Unavailable
