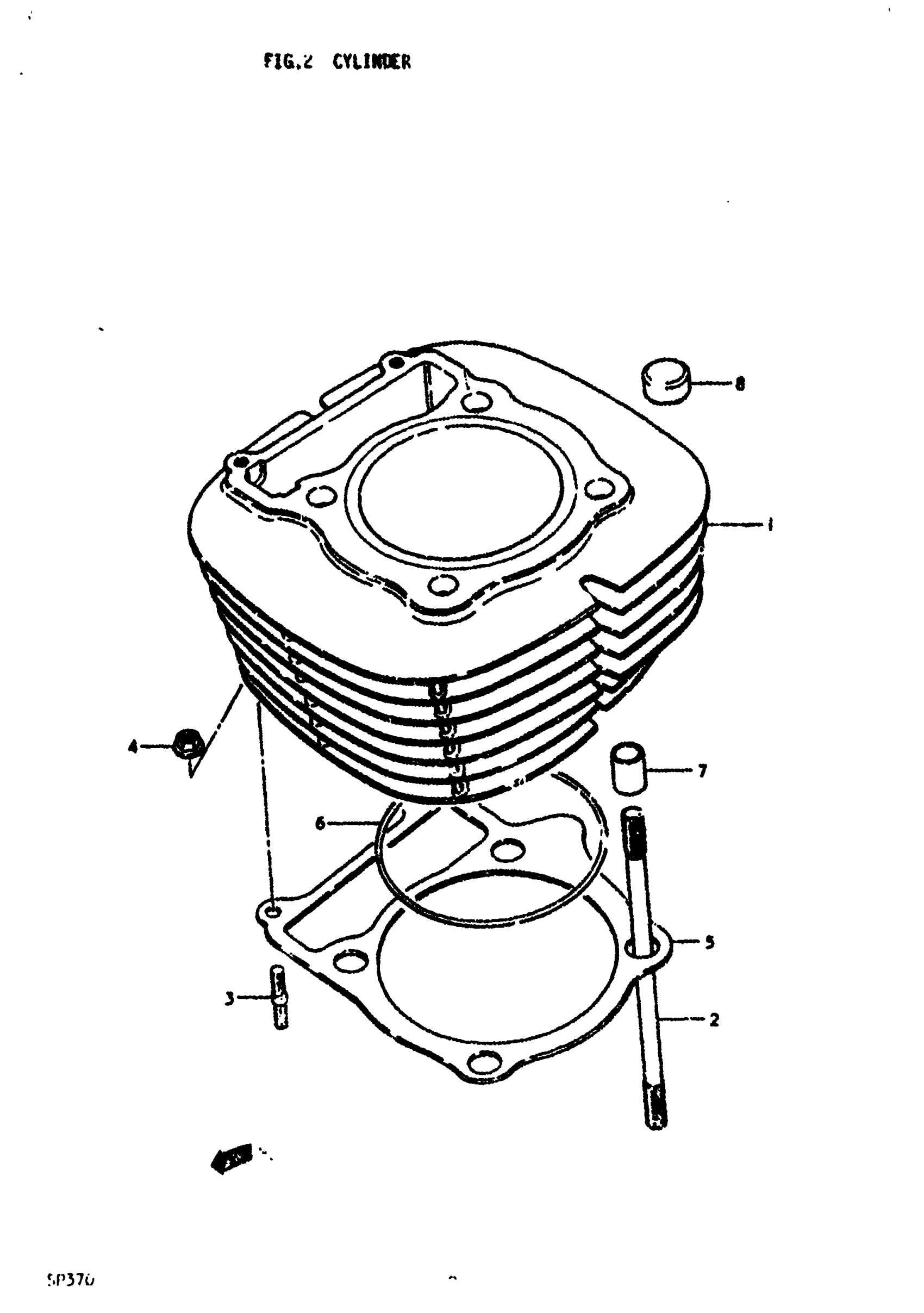

Suzuki SP370 (1979) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11210-32400

Unavailable

2

STUD BOLT (L:144) This part replaces 09108-10024.

09108-10097

Unavailable

3

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

4

NUT This part replaces 08316-16068.

08319-31067

$2.03

5

GASKET,CYLINDER This part replaces 11241-32400.

11241-37100-H17

Unavailable

6

O RING

09280-87001

Unavailable

7

PIN This part replaces 09206-13001.

04211-13189

$2.19

8

RUBBER PAD, CYLINDER

11252-38001

$3.78
