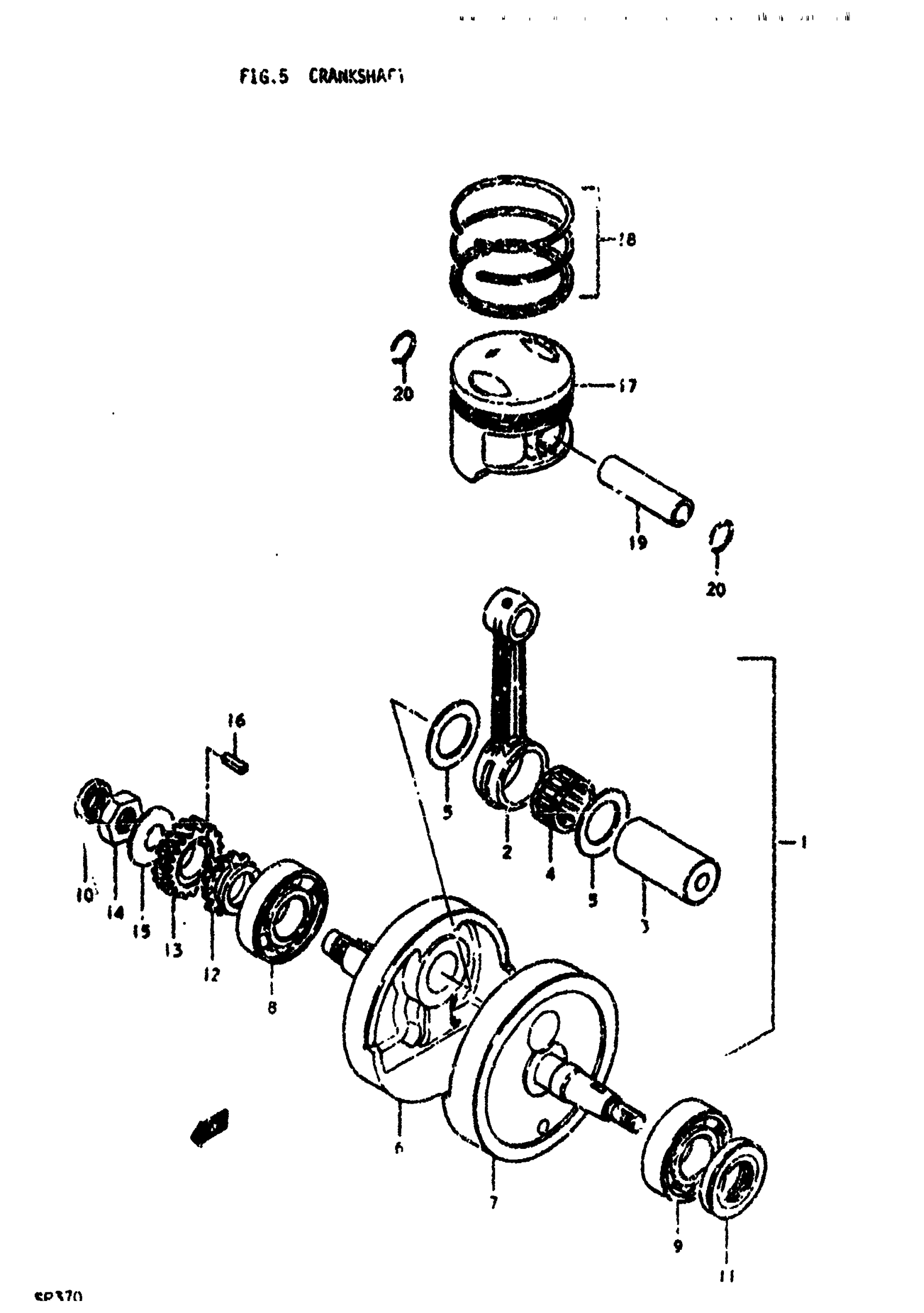

Suzuki SP370 (1979) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

12200-32400

Unavailable

2

ROD, CONNECTING

12161-32402

Unavailable

3

PIN

12211-32402

Unavailable

4

BEARING

09263-32004

Unavailable

5

WASHER | 32x50x1

09160-32003

Unavailable

6

ORANKSHAFT RH

12221-32402

Unavailable

7

CRANKSHAFT, LH

12261-32402

Unavailable

8

BEARING, LH This part replaces 09262-30043.

09262-30076

Unavailable

9

BEARING, RH (30x72x19) This part replaces 08113-63060.

09262-30077

$58.43

10

OIL SEAL (16X30X6)

09282-16002

$9.60

11

OIL SEAL, LH

09283-30024

Unavailable

12

SPROCKET, CHAIN DRIVE | NT:17

12731-32400

Unavailable

13

GEAR, PRIMARY DRIVE | NT:23

21111-32401

Unavailable

14

NUT This part replaces 09140-20008.

09140-20013

$4.26

15

LOCK WASHER

09164-20003

$3.85

16

KEY

09421-07001

Unavailable

17

PISTON

12111-32400

Unavailable

17

NO DESCRIPTION AVAILABLE | OS:0.5 This part replaces 12111-32400-050.

12103-32810-050

Unavailable

17

PISTON | OS:1.0

12111-32400-100

Unavailable

18

RING SET, PISTON

12140-32401

Unavailable

18

RING SET, PISTON | OS:0.5

12140-32401-050

Unavailable

18

RING SET, PISTON | OS:1.0

12140-32401-100

Unavailable

19

PIN

12151-32400

Unavailable

20

CIRCLIP This part replaces 09381-20001.

09381-20004

$1.65
