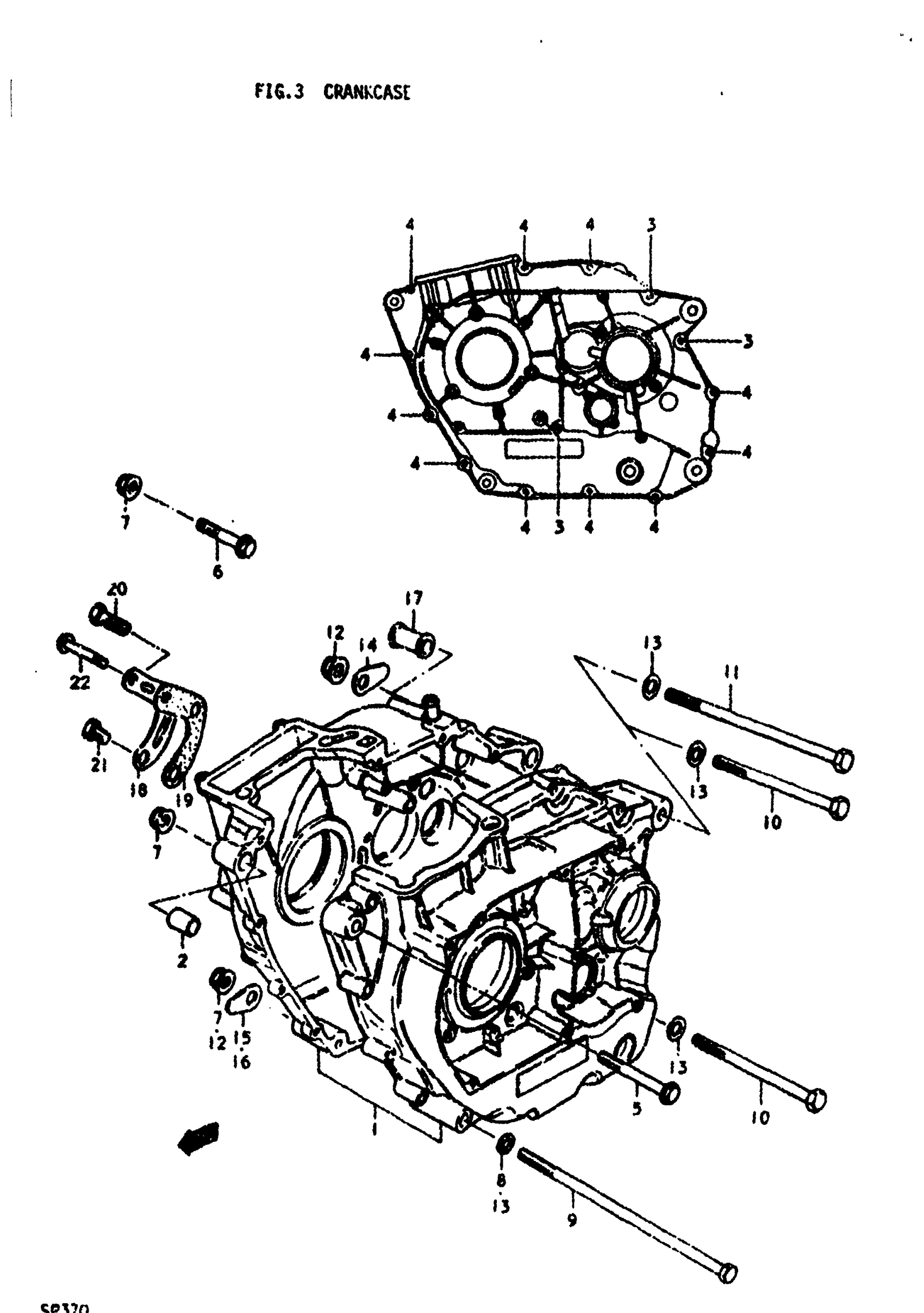

Suzuki SP370 (1979) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | C This part replaces 11300-32830.

11300-32832

Unavailable

1

NO DESCRIPTION AVAILABLE | N; Includes Item(s) 2 - 4 This part replaces 11300-32831.

11300-32832

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

4

SCREW This part replaces 02112-06358.

02112-06357

$1.78

5

BOLT This part replaces 01517-08708.

01550-08707

$3.91

6

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

7

NUT | CN This part replaces 08319-31088.

08319-3108A

$2.32

8

WASHER | C This part replaces 08322-11088.

08322-01087

$2.13

9

BOLT, ENGINE MOUNTING | C; 8x190

09100-08063

Unavailable

9

BOLT, ENGINE MOUNTING | N; 10x190

09100-10121

Unavailable

10

NO DESCRIPTION AVAILABLE | C; 10x115N; 10x115 This part replaces 09100-10116.

09116-10042

Unavailable

11

BOLT, ENGINE MOUNTING | N; 10x155

09100-10120

Unavailable

12

NUT | CN This part replaces 08319-31108.

08319-31107

$2.73

13

WASHER | CN This part replaces 08322-11108.

08322-01107

$2.15

14

SHIM, REAR | C; T:1.0

09169-10011

Unavailable

14

SHIM, REAR | C; T:0.6

09169-10012

Unavailable

15

SHIM, FRONT | C; T:10

09169-08022

Unavailable

15

SHIM, FRONT | C; T:0.6

09169-08023

Unavailable

16

SHIM, FRONT | N; T:1.0

09169-10011

Unavailable

16

SHIM, FRONT | N; T:0.6

09169-10012

Unavailable

17

SPACER | N

11610-32400

Unavailable

18

CAP, OIL GALLERY

11394-32400

Unavailable

19

GASKET

11497-32400

Unavailable

20

UNION This part replaces 09360-10003.

09360-10017

$3.42

21

BOLT

09247-10001

$2.20

22

BOLT This part replaces 01517-06558.

01550-06557

$3.30
