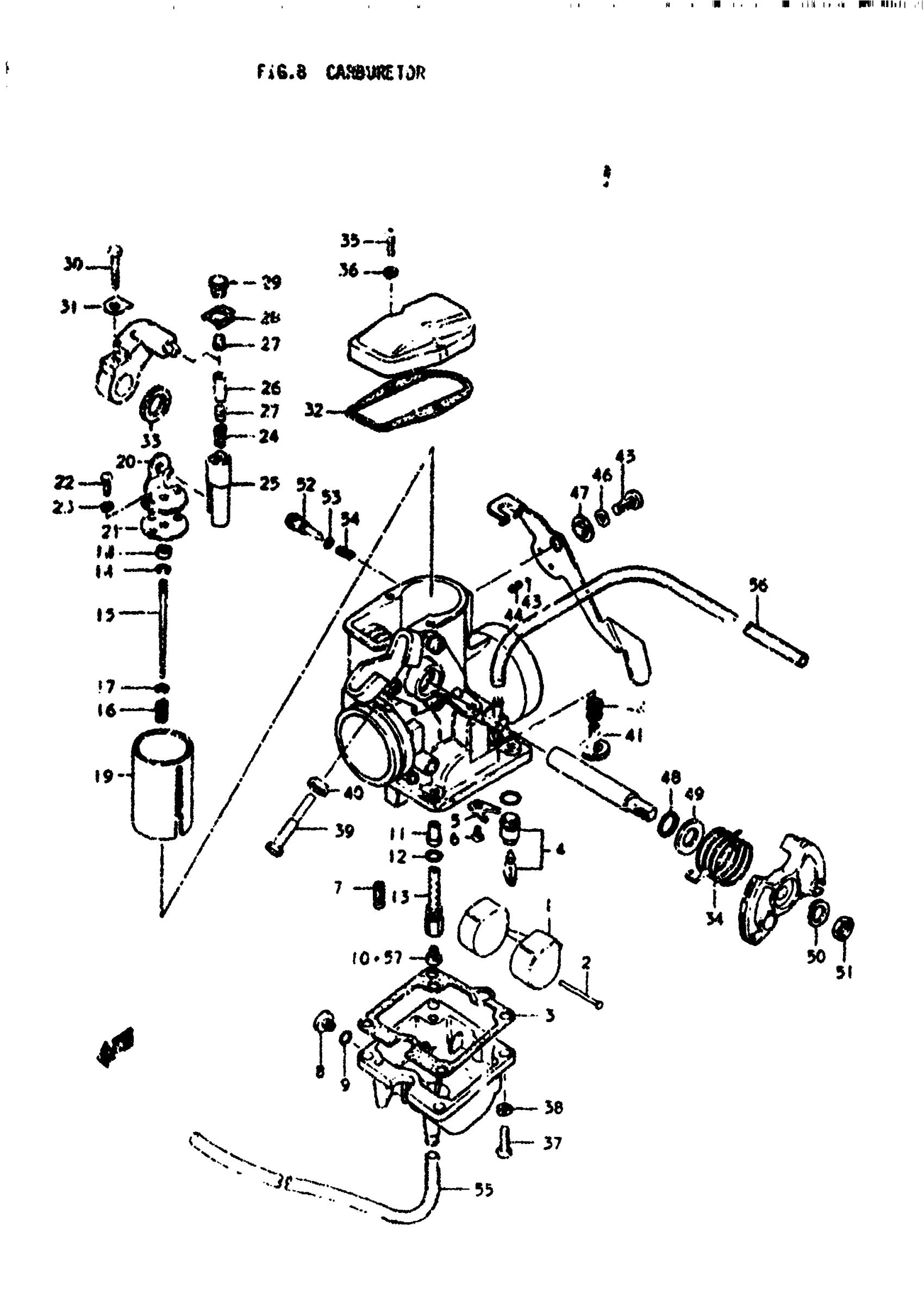

Suzuki SP370 (1979) CARBURETOR Diagram

#

Description
Price

0

CARBUPETOR ASSY | Includes Item(s) 1 - 18

13200-32400

Unavailable

1

FLOAT

13252-32410

Unavailable

2

PIN, FLOAT

13254-92311

$2.07

3

GASKET

13251-32410

Unavailable

4

VALVE ASSY, NEEDLO

13370-32410

Unavailable

5

PLATE

13373-39110

$6.64

6

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

7

JET, PILOT | #25

09492-25005

$9.55

8

PLUG, DRAIN

13247-45010

Unavailable

9

.O RING This part replaces 13246-43010.

13246-43011

$4.34

10

JET, MAIN | #125

09491-25010

$11.02

11

PIPE, BREATHER

13385-32410

Unavailable

12

.O RING This part replaces 13246-43010.

13246-43011

$4.34

13

JET, NEEDLE | C, NP-7

09494-00227

Unavailable

14

CLIP

13394-10010

$5.45

15

NEEDLE, JET | 6CH2-3

13383-32400

Unavailable

16

SPRING

13388-47010

$6.91

17

WASHER

13382-47010

$3.56

18

RING

13387-47010

$7.22

19

VALVE, PISTON | CA:2.5; Includes Item(s) 20 - 51

13551-32400

Unavailable

20

BRACKET

13398-30650

Unavailable

21

PLATE

13581-29320

Unavailable

22

SCREW This part replaces 02111-03108.

02112-03107

$1.49

23

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

24

SPRING

13543-32410

Unavailable

25

CONNECTOR

13545-32212

Unavailable

26

PIN

13546-30650

Unavailable

27

PIN

13544-43010

Unavailable

28

PLATE

13547-43010

Unavailable

29

SCREW

13548-32212

Unavailable

30

BOLT

13613-30650

Unavailable

31

PLATE

13576-30650

Unavailable

32

GASKET

13266-30650

Unavailable

33

RING

13574-30650

Unavailable

34

SPRING

13574-32410

Unavailable

35

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

36

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

37

SCREW This part replaces 02112-05168.

02112-05167

$1.97

38

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

39

ADJUSTER, THROTTLE

13605-32410

Unavailable

40

NUT

13607-31610

Unavailable

41

ADJUSTER, THROTTLE

13267-32410

Unavailable

42

SPRING

13268-31210

$5.33

43

BALL

13596-93010

$4.43

44

SPRING

13434-43010

$6.47

45

SCREW This part replaces 02112-06128.

02112-06127

$1.84

46

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

47

RING

13424-30650

$5.32

48

SEAL

13556-32410

Unavailable

49

RING

13574-32410

Unavailable

50

.LOCK WASHER | C This part replaces 13614-30650.

08321-01087

$2.13

50

.LOCK WASHER | N This part replaces 08321-21088.

08321-01087

$2.13

51

NUT | C This part replaces 13607-37010.

08310-00087

$2.13

51

NUT | N This part replaces 08310-21088.

08310-00087

$2.13

52

SCREW, AIR ALLOT

13269-15011

Unavailable

53

O RING

13295-33010

$4.48

54

SPRING

13268-01010

$5.28

55

HOSE (3.5X6.5X6OO) This part replaces 13683-32410.

13683-45070

$11.80

56

HOSE(4.5X8.5X60 | C This part replaces 13687-18656.

09355-45001-600

$9.48
