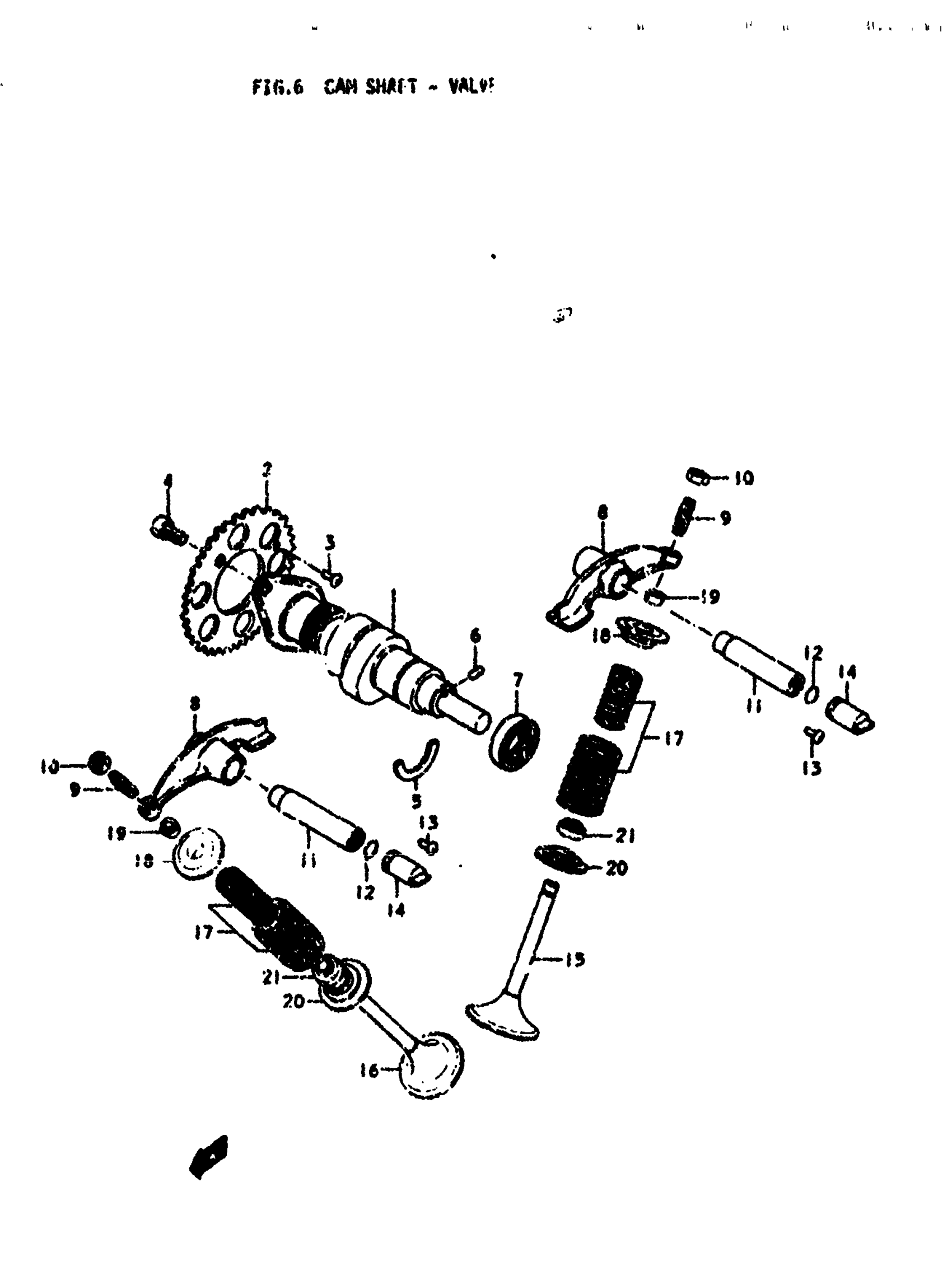

Suzuki SP370 (1979) CAR SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHART

12711-32400

Unavailable

2

SPROCKET (NT:34) | NT:34 This part replaces 12741-32401.

12741-32402

Unavailable

3

SCREW This part replaces 02142-05067.

09125-05117

$2.72

4

BOLT, NO.3 This part replaces 09106-06024.

07130-0610B

$3.21

5

O RING

09390-25003

$2.48

6

PIN This part replaces 06211-03052.

04221-03059

$1.72

7

OIL SEAL, LH

09283-18003

Unavailable

8

ARM, VALVE ROCKER EX. | Includes Item(s) 9 - 10 This part replaces 12840-32400.

12850-37110

Unavailable

9

.SCREW, TAPPET ADJUSTING This part replaces 12842-32400.

12842-32411

$5.24

10

.NUT, ADJUSTING SCREW

12843-32400

$2.79

11

SHAFT, ROCKER ARM

12861-32400

Unavailable

12

.O RING (D:1.9,ID:8.6) This part replaces 09280-09004.

09280-09005

$3.70

13

SCREW

02142-05107

$1.49

14

CAP, SHAFT This part replaces 12862-32400.

12862-32401

Unavailable

15

VALVE,INTAKE This part replaces 12911-32430.

12911-32431

Unavailable

16

VALVE,EXHAUST This part replaces 12912-32430.

12912-32431

Unavailable

17

VALVE SPRING SET This part replaces 12900-32810.

12920-32420

Unavailable

18

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$8.12

19

COTTER, VALVE This part replaces 12900-45820.

12932-45010

$2.37

20

SEAT, SPRING

12933-45001

$6.27

21

OIL SEAL

09289-07002

$7.98
