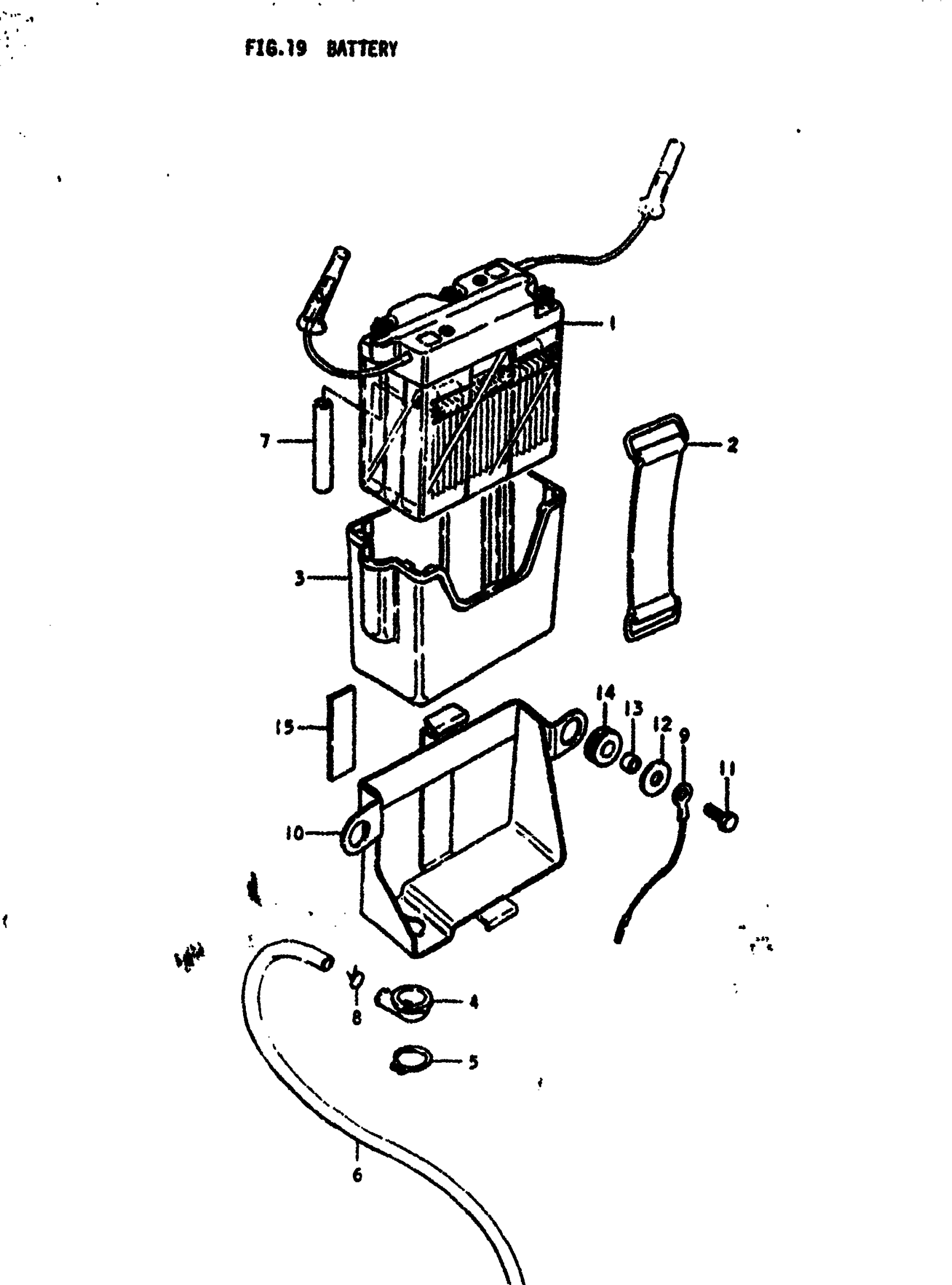

Suzuki SP370 (1979) BATTERY Diagram

#

Description
Price

1

6N4B-2A BATTERY | 6V, 4AH This part replaces 33610-32620.

33610-03611

$79.23

2

BAND

09462-00067

$5.11

3

CASE

33661-32400

Unavailable

4

FUNNEL, EXHAUST

33662-32401

Unavailable

5

CIRCLIP This part replaces 08331-31178.

08331-31179

$1.90

6

HOSE,BATTERY EX This part replaces 33680-47001.

33680-16A11

$6.78

7

HOSE,BATTERY EX This part replaces 33681-47000.

33680-16A11

$6.78

8

CLIP

09401-08301

$1.65

9

LEAD WIRE, BATTERY (-)

36862-27690

$5.20

10

HOLDER, BATTERY

41540-32400

Unavailable

11

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

11

BOLT This part replaces 01107-06208.

01500-06207

$2.28

12

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

13

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

14

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

15

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48
