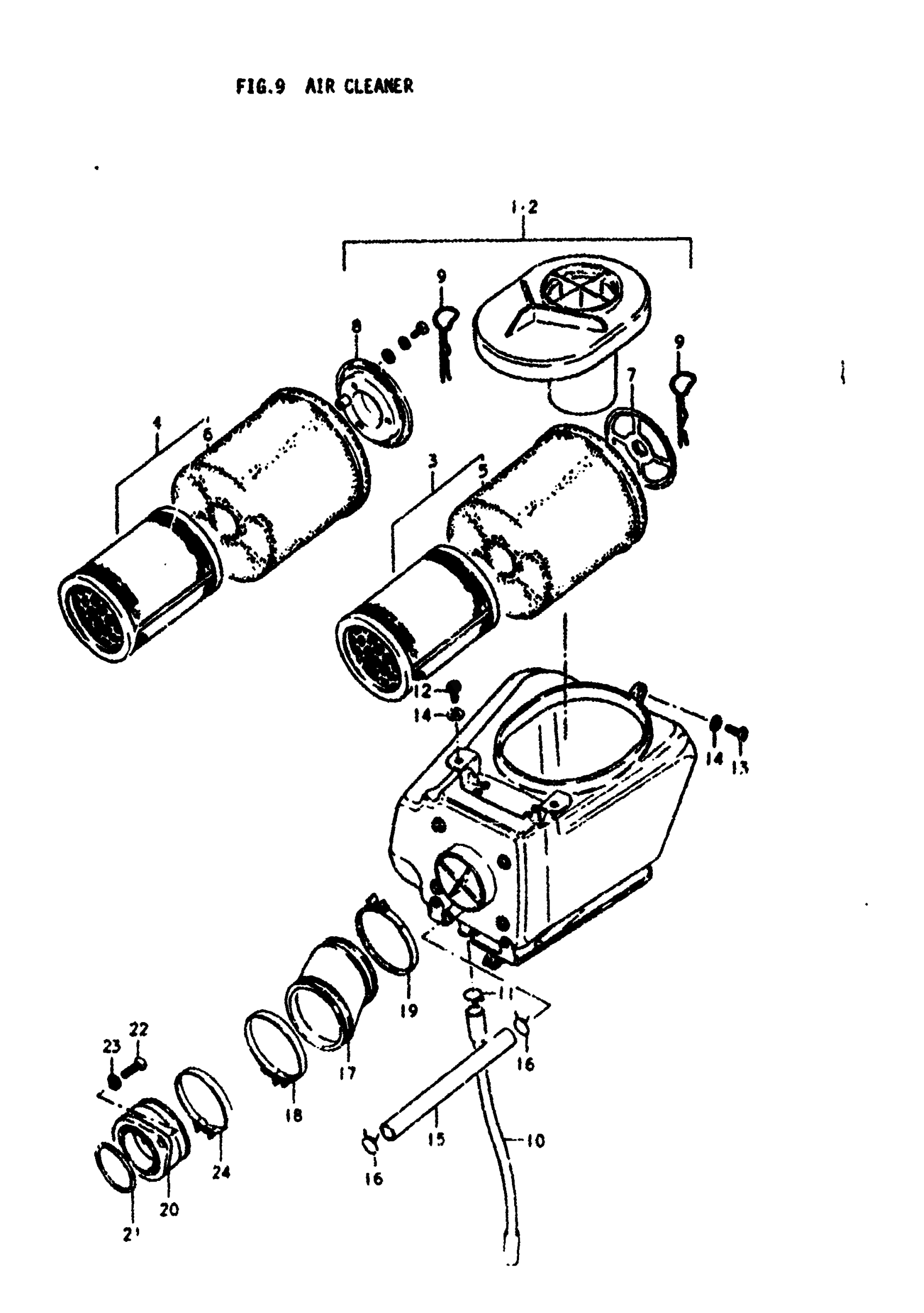

Suzuki SP370 (1979) AIR CLEANER Diagram

#

Description
Price

1

AIR CLEANER ASSY | C This part replaces 13700-32400.

13700-32401

Unavailable

2

AIR CLEANER ASSY | Includes Item(s) 3 - 11

13700-32401

Unavailable

3

FILTER ASSY | C This part replaces 13780-32400.

13780-32401

Unavailable

4

FILTER ASSY

13780-32401

Unavailable

5

FILTER | C

13781-32400

Unavailable

6

FILTER

13781-32401

Unavailable

7

HOLDER | C

13791-32400

Unavailable

8

HOLDER

13791-32401

Unavailable

9

SNAP PIN

13731-41310

Unavailable

10

TUBE, DRAIN

13790-32400

Unavailable

11

CLIP This part replaces 13795-44010.

09401-14301

$2.35

12

SCREW This part replaces 02112-06108.

02112-06107

$1.49

13

SCREW This part replaces 02112-06168.

02112-06167

$1.49

14

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

15

HOSE, BREATHER | 1:147

09343-11010

Unavailable

16

CLIP

09401-14301

$2.35

17

HOSE, AIR INLET

13881-32400

Unavailable

18

..CLAMP This part replaces 09402-60306.

09402-60208

$5.11

19

CLAMP

09402-66306

$6.42

20

PIPE, INTAKE

13110-32400

Unavailable

21

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

22

SCREW This part replaces 02112-06168.

02112-06167

$1.49

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

CLAMP

09402-54303

$3.91
