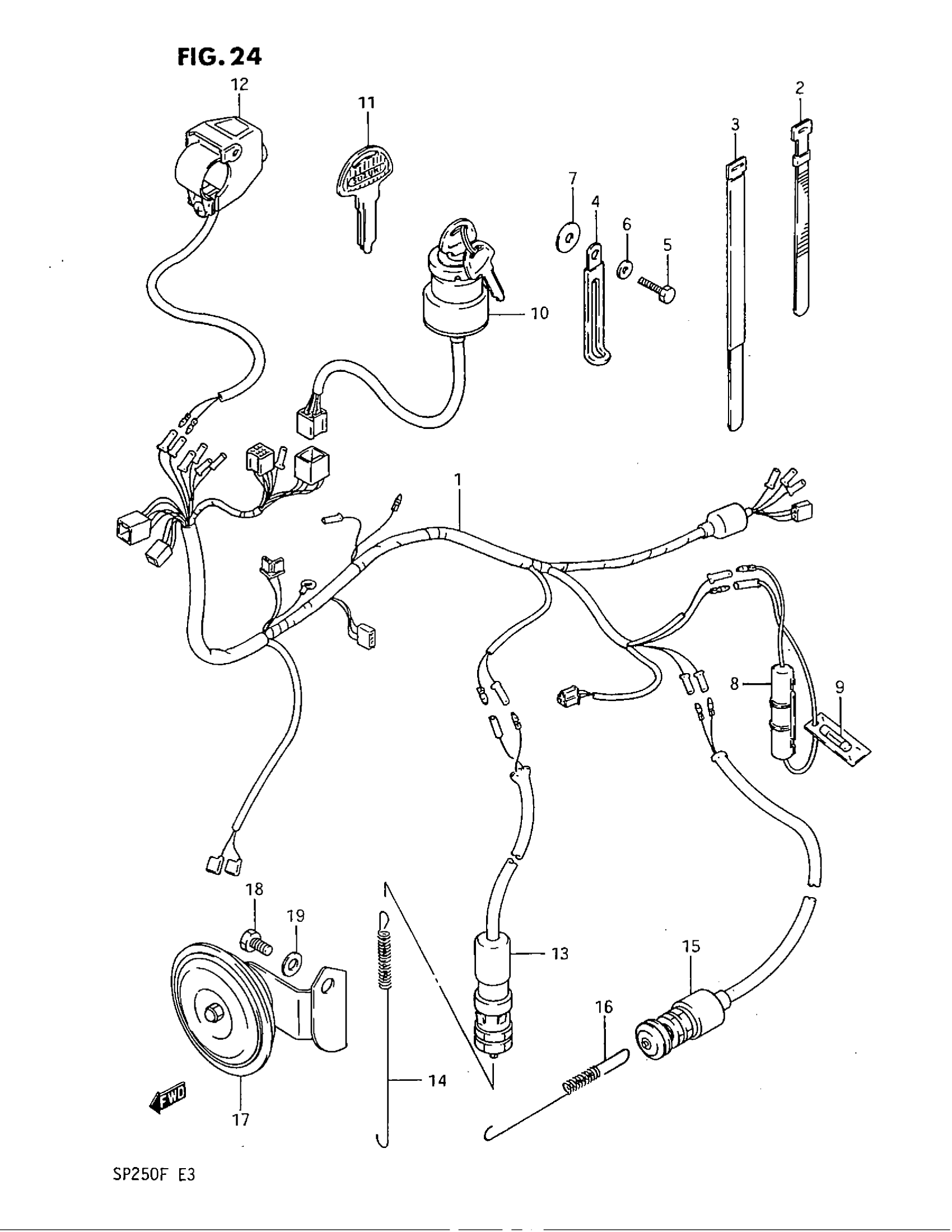

Suzuki SP250 (1985) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS

36610-38215

Unavailable

2

BAND (L:120)

09407-12402

$3.04

3

CLAMP This part replaces 09407-11301.

09407-18302

$2.28

3

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

3

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

4

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

4

CLAMP This part replaces 09404-06412.

09404-06039

$1.74

4

CLAMP This part replaces 09404-08414.

09404-08420

$3.16

5

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

6

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

7

WASHER This part replaces 09160-06006.

09160-06084

$1.78

8

FUSE CASE ASSY | Includes Item(s) 9 This part replaces 36740-27200.

36740-15011

$9.38

9

FUSE (15A)

09481-15001

$2.06

10

NO DESCRIPTION AVAILABLE This part replaces 37110-26900.

37110-26901

Unavailable

11

KEY, BLANK | OPT This part replaces 37145-19710.

37146-49300

$16.01

12

SWITCH ASSY, ENGINE STOP

37830-13A00

Unavailable

13

SWITCH ASSY, STOP LAMP

37740-48071

$19.18

14

SPRING

09443-06019

$3.42

15

SW ASSY SIDE ST This part replaces 37840-49202.

37840-38301

Unavailable

16

SPRING

09443-06016

$3.30

17

HORN ASSY

38500-38211

Unavailable

18

BOLT This part replaces 01107-06104.

01500-0610B

$1.81

19

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
