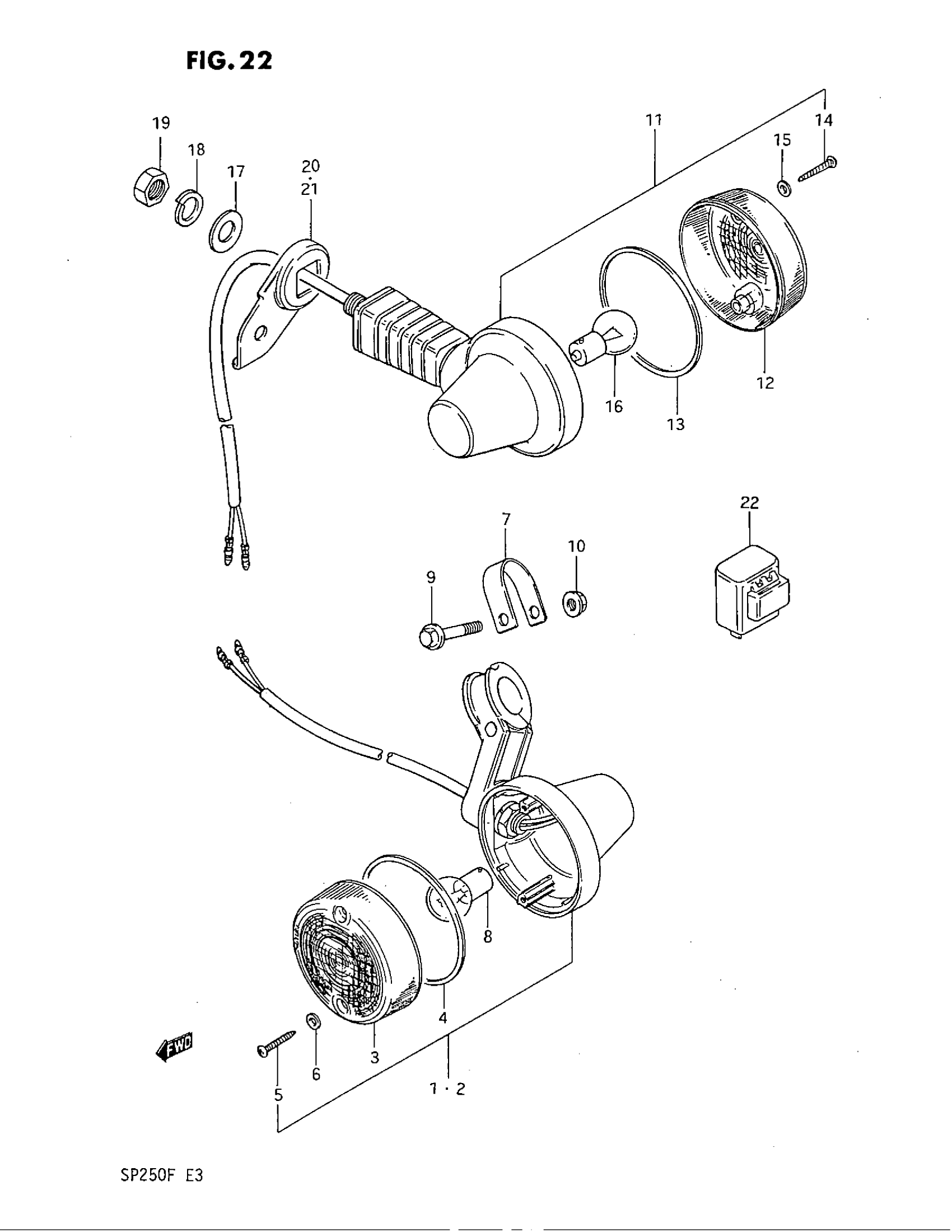

Suzuki SP250 (1985) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP, FRONT TURN SIGNAL RH

35601-38210-999

Unavailable

2

LAMP, FRONT TURN SIGNAL LH | Includes Item(s) 3 - 7

35602-38210-999

Unavailable

3

LENS,FR TRNSIG This part replaces 35612-48530.

35612-01A70

$9.33

4

GASKET

35613-28620

$4.55

5

SCREW This part replaces 03211-04258.

03211-0425B

$2.70

6

GASKET

35627-43010

$2.28

7

PLATE

35616-05210

Unavailable

8

BULB (6V,17W)

09471-06011

Unavailable

9

BOLT

09103-05003

Unavailable

10

NUT

08316-16055

Unavailable

11

LAMP, REAR TURN SIGNAL | Includes Item(s) 12 - 15

35603-38201-999

Unavailable

12

LENS,FR TRNSIG This part replaces 35612-48530.

35612-01A70

$9.33

13

GASKET

35613-28620

$4.55

14

SCREW This part replaces 03211-04258.

03211-0425B

$2.70

15

GASKET

35627-43010

$2.28

16

BULB (6V,17W)

09471-06011

Unavailable

17

WASHER

09160-12048

Unavailable

18

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

$2.10

19

NUT This part replaces 08310-12125.

08310-0012A

$2.36

20

BRACKET, RH

35621-38201

Unavailable

21

BRACKET, LH

35641-38201

Unavailable

22

RELAY ASSY,TRN This part replaces 38610-05200.

38610-05X50

Unavailable
