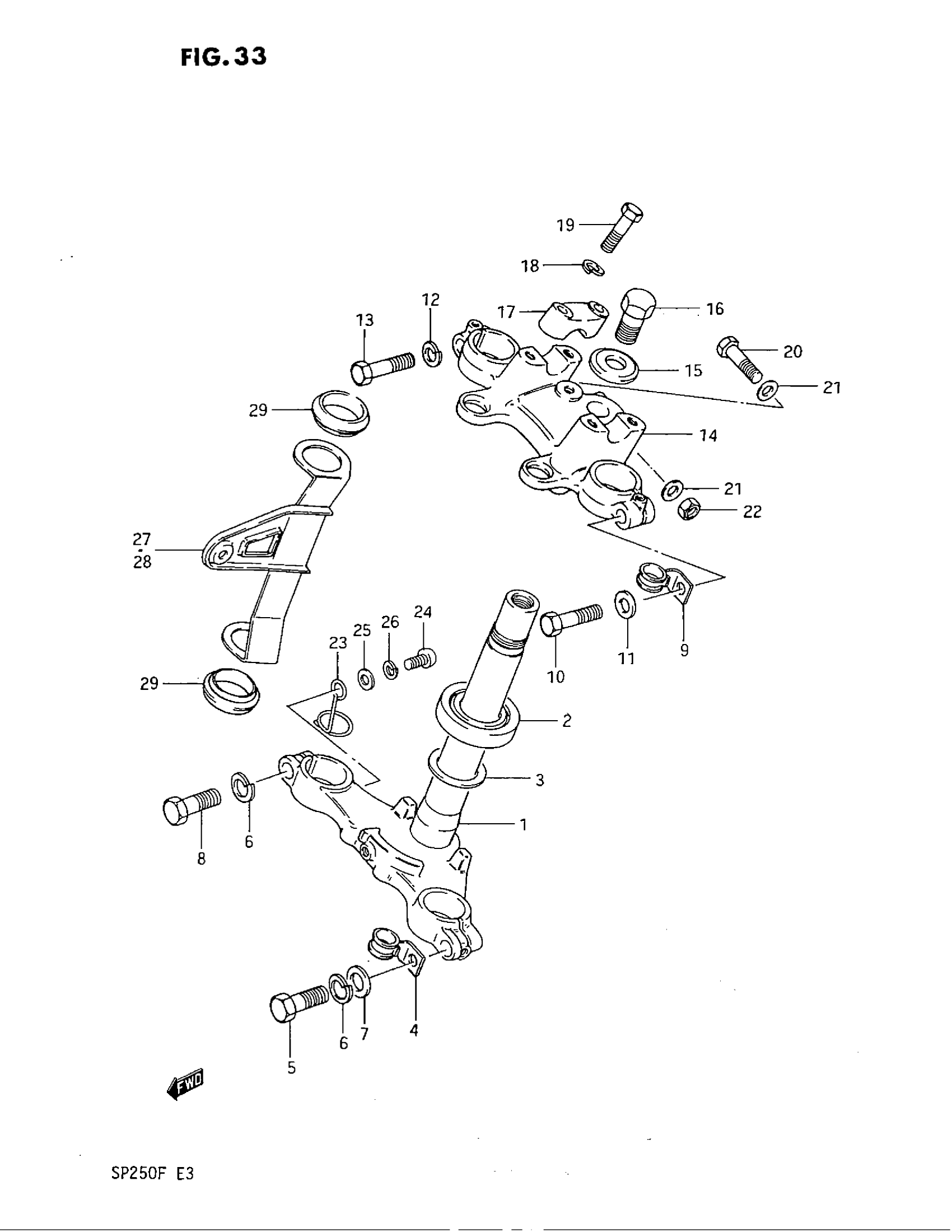

Suzuki SP250 (1985) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM (BLACK) | Includes Item(s) 2 - 3

51410-38270-291

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

4

CLIP

51453-38250

Unavailable

5

BOLT

01107-12455

Unavailable

6

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

$2.10

7

WASHER

08322-11125

Unavailable

8

BOLT

01107-12405

Unavailable

9

CLIP

51455-38250

Unavailable

10

BOLT This part replaces 01107-10405.

01500-1040A

$3.85

11

WASHER, KNUCKLE END This part replaces 08322-21105.

08322-0110A

$1.84

12

LOCK WASHER This part replaces 08321-21105.

08321-0110A

$1.84

13

BOLT

51451-38255

Unavailable

14

HEAD, STEERING STEM (BLACK)

51311-38255-291

Unavailable

15

WASHER

51356-41310

Unavailable

16

BOLT

51351-30540

Unavailable

17

HOLDER, HANDLE (BLACK)

56211-27200-291

$17.90

18

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

19

BOLT This part replaces 01107-08355.

01500-0835B

$3.04

20

BOLT This part replaces 01107-08505.

01500-0850B

$3.77

21

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

22

NUT This part replaces 08310-12085.

08310-0008A

$1.84

23

CLIP

51452-38210

Unavailable

24

.SCREW This part replaces 02112-06148.

02112-0616B

$2.12

25

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

26

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

27

NO DESCRIPTION AVAILABLE This part replaces 51530-38210-291.

51500-38810-291

Unavailable

28

BRACKET, HEADLAMP LH

51540-38210-291

Unavailable

29

GASKET

51556-41410

Unavailable
