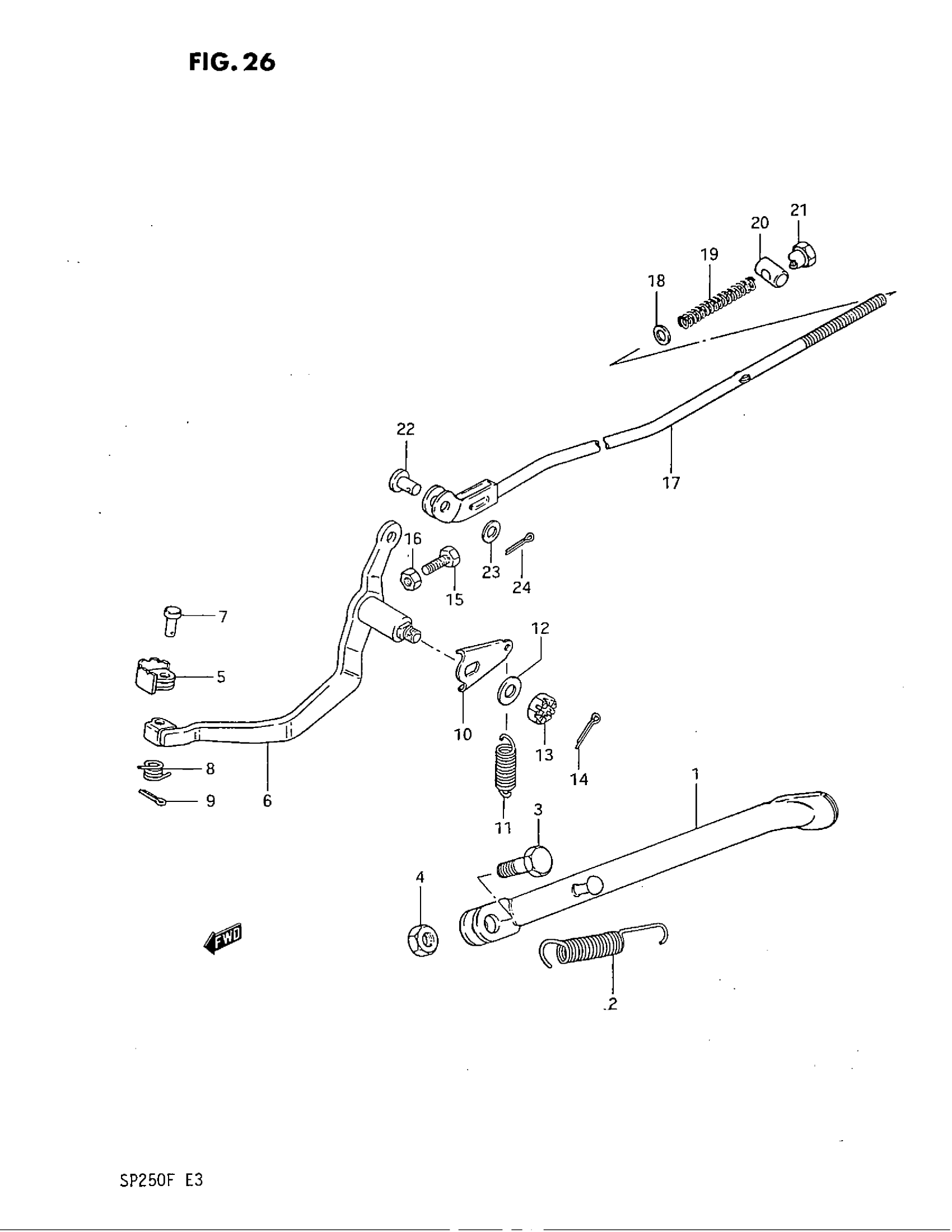

Suzuki SP250 (1985) STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP (BLACK)

42310-38230-019

Unavailable

2

SPRING

09443-14034

Unavailable

3

BOLT This part replaces 09111-10019.

09111-10047

$4.11

4

NUT This part replaces 08310-22108.

08310-00107

$2.19

5

PEDAL, BRAKE

43110-14130

$16.15

6

PIN

09200-06038

$2.38

7

SPRING This part replaces 09444-11004.

09444-11005

$2.86

8

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

9

ARM, BRAKE PEDAL

43120-38210

Unavailable

10

ARM, BRAKE PEDAL RETURN

43128-38200

$3.37

11

SPRING This part replaces 09443-14020.

09443-14015

$2.89

12

WASHER

08211-08202

$2.53

13

NUT This part replaces 08314-41088.

08314-4008B

$3.03

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

BOLT (6x27)

09100-06009

$1.91

16

.NUT This part replaces 08310-11068.

08310-00067

$2.13

17

NO DESCRIPTION AVAILABLE | Includes Item(s) 18 - 24 This part replaces 43300-38200.

43300-38X51

Unavailable

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

SPRING

09440-09004

$2.20

20

PIN

09209-11002

$2.19

21

.NUT This part replaces 09150-06009.

09150-06010

$3.10

22

PIN

09200-06039

Unavailable

23

WASHER This part replaces 08322-21068.

08322-01067

$2.13

24

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
