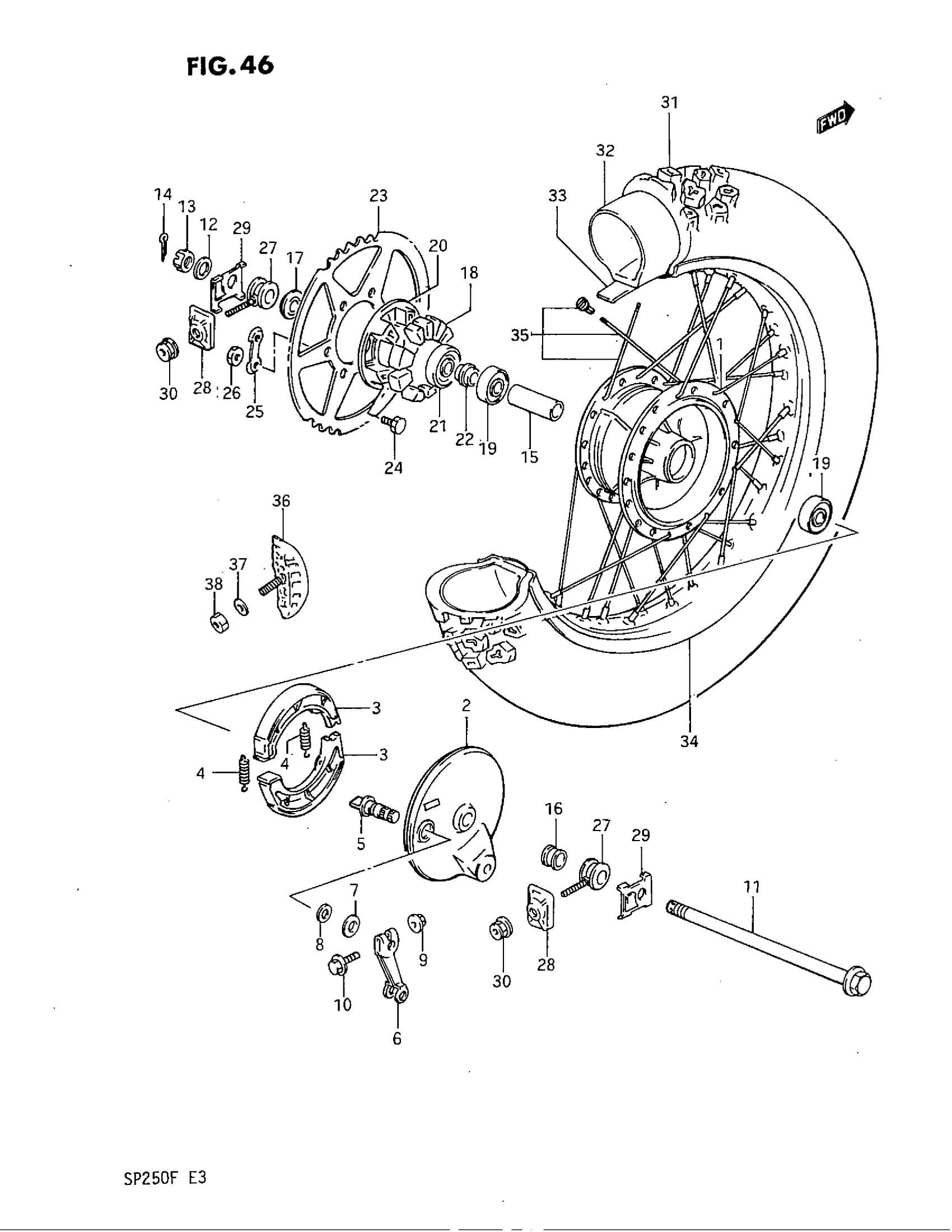

Suzuki SP250 (1985) REAR WHEEL Diagram

#

Description
Price

1

DRUM, REAR HUB

64110-38200

Unavailable

2

PANEL, REAR HUB

64210-38200

Unavailable

3

SHOE SET, BRAKE This part replaces 54410-07003.

54401-07810

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE This part replaces 54441-29304.

54441-29305

$20.02

6

LEVER, REAR BRAKE CAM This part replaces 64451-29900.

64451-38210

$34.57

7

WASHER This part replaces 09160-14001.

09160-14055

$2.39

8

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

9

NUT This part replaces 09159-06017.

08319-31067

$2.03

10

BOLT This part replaces 01517-06358.

01550-06357

$2.77

11

NO DESCRIPTION AVAILABLE This part replaces 64711-38230.

64711-09B00

Unavailable

12

WASHER This part replaces 08322-21168.

08322-01167

$2.10

13

NUT

09141-16001

Unavailable

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

15

SPACER, HUB BEARING

64731-40600

Unavailable

16

SPACER, AXLE RH

64741-38200

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 64750-38200.

64750-38201

Unavailable

18

SHOCK ABSORBER, HUB

64651-38201

Unavailable

19

BEARING, HUB BRUM

08143-62037

$18.47

20

DRUM, SPROCKET MOUNTING

64611-38200

Unavailable

21

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

22

HOLDER, SPROCKET

64733-38200

Unavailable

23

SPROCKET, REAR (NT:42)

64511-38200

Unavailable

24

BOLT This part replaces 09119-08036.

09119-08078

Unavailable

25

WASHER

09169-08011

$2.16

26

NUT This part replaces 08310-12088.

08310-00087

$2.13

27

ADJUSTER, CHAIN

61410-38200

Unavailable

28

PLATE, CHAIN ADJUSTER

61421-38200

$5.21

29

GUIDE WASHER

64712-38200

Unavailable

30

NUT This part replaces 08319-31088.

08319-3108A

$2.32

31

TIRE, REAR (4.60X17) | IRC This part replaces 65100-38210.

65100-38230

Unavailable

31

TIRE, REAR (4.60X17) | BS

65100-38230

Unavailable

32

TUBE ASSY, WHEEL INNER This part replaces 65200-44300.

65200-49030

Unavailable

33

PROTECTOR, INNER TUBE This part replaces 55261-20330.

55261-02B40

$6.88

34

RIM, WHEEL (215X17AL) GOLD

65311-38270

Unavailable

35

SPOKE ASSY, REAR

65320-38200

Unavailable

36

STOPPER, BEAD This part replaces 65270-14200.

65270-28E00

$58.75

37

WASHER This part replaces 08322-11088.

08322-01087

$2.13

38

NUT This part replaces 08310-12088.

08310-00087

$2.13
