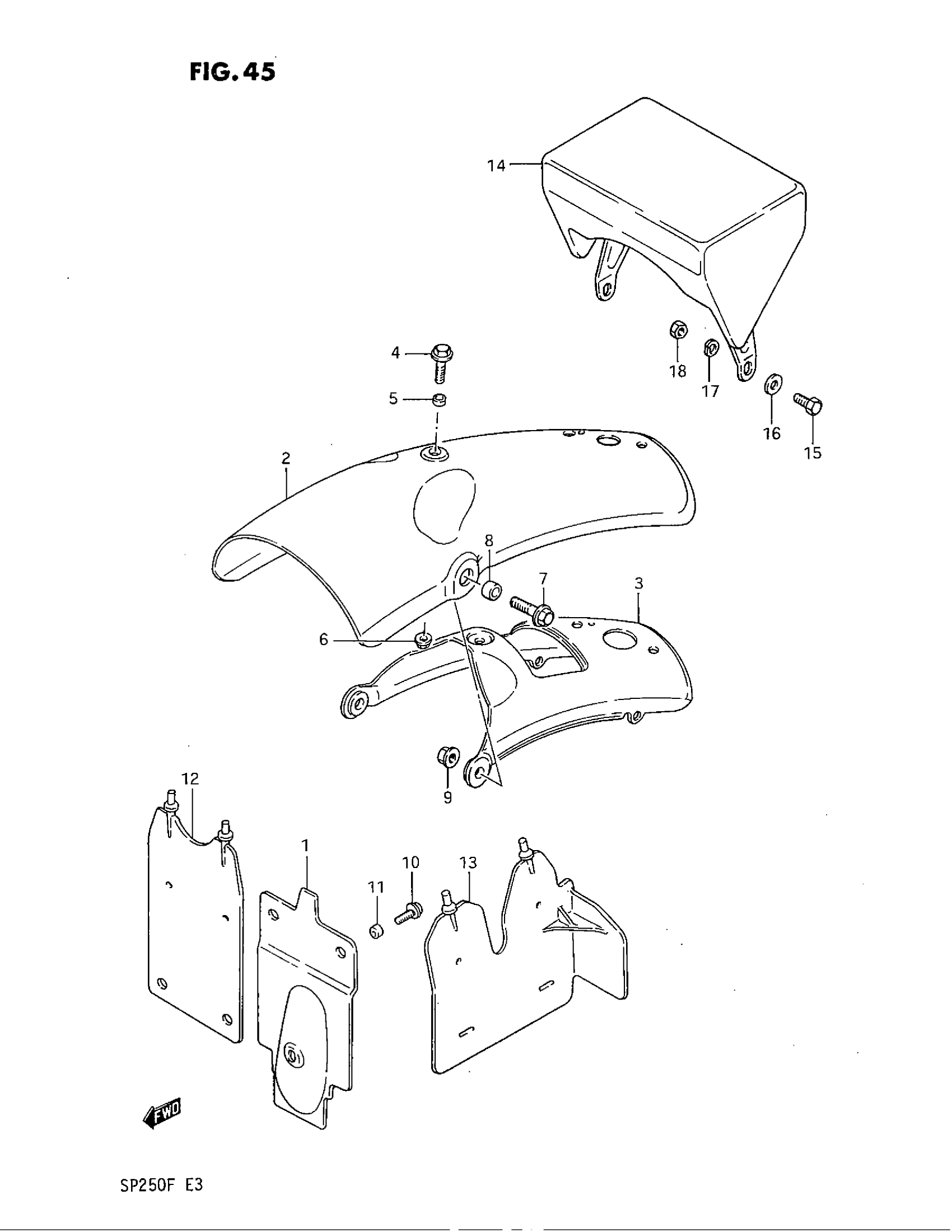

Suzuki SP250 (1985) REAR FENDER Diagram

#

Description
Price

1

REAR FENDER, FRONT

63112-38200

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 63111-48701-14C.

63111-48701-13L

Unavailable

3

REINFORCEMENT

63120-38201

Unavailable

4

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

5

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

6

NUT This part replaces 08319-31068.

08319-31067

$2.03

7

BOLT This part replaces 01517-08255.

01550-0825A

$2.32

8

SPACER

09180-08100

Unavailable

9

NUT This part replaces 08319-31088.

08319-3108A

$2.32

10

SCREW This part replaces 02152-06128.

02112-06127

$1.84

11

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

12

MUDFLAP, FRONT

63411-38200

Unavailable

13

MUDFLAP, FRONT LH

63416-38201

Unavailable

14

BAG ASSY, SEAT TAIL (BLUE) This part replaces 94900-38200-54G.

94900-38220-4UZ

Unavailable

15

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

.NUT This part replaces 08310-11068.

08310-00067

$2.13
