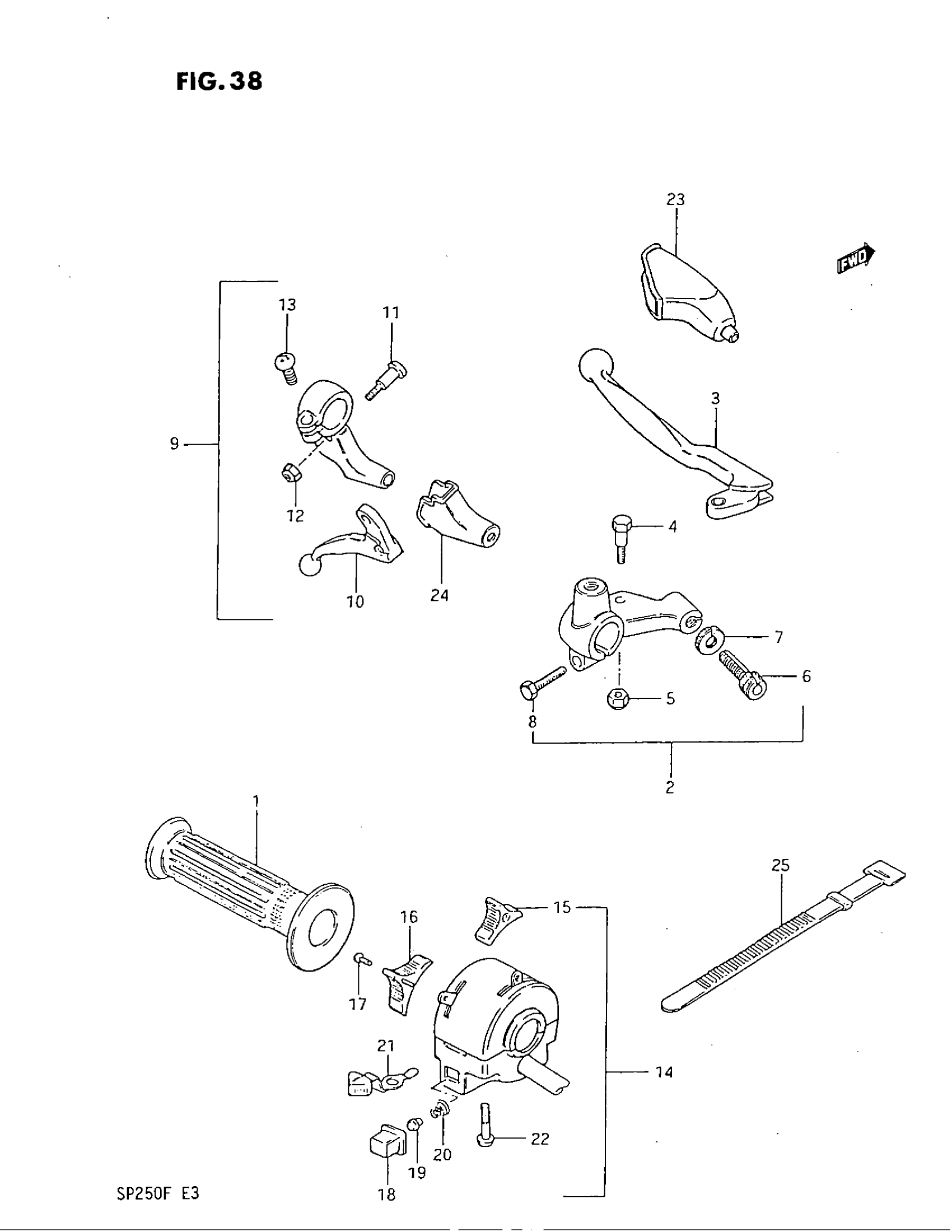

Suzuki SP250 (1985) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP,L This part replaces 57211-45020.

57211-45021

$11.44

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 8 This part replaces 57500-38250.

57500-37200

Unavailable

3

LEVER, CLUTCH

57620-49101

Unavailable

4

BOLT This part replaces 57431-11011.

57431-11013

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

ADJUSTER, CABLE

57441-26010

$4.48

7

NUT

57442-11010

$2.79

8

BOLT

57451-49100

Unavailable

9

LEVER ASSY,DECO | Includes Item(s) 10 - 13 This part replaces 58700-38200.

58700-38210

$152.93

10

LEVER, DECOMP

58731-38200

$49.42

11

SCREW This part replaces 57431-01011.

57431-01012

$5.24

12

NUT

57633-38200

Unavailable

13

SCREW This part replaces 02112-06208.

02112-06207

$1.78

14

SWITCH ASSY, HANDLE LH | Includes Item(s) 15 - 22

37400-38220

Unavailable

15

KNOB, LIGHTING

37414-45602

Unavailable

16

KNOB, DIMMER

37421-45012

$6.17

17

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

18

BUTTON, HORN

57371-45000

$4.52

19

CONTACT

57372-45000

$4.45

20

SPRING

57382-45000

$3.37

21

KNOB, TURN SIGNAL

37513-45011

$7.22

22

SCREW This part replaces 02112-05258.

02112-05257

$1.49

23

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.56

24

COVER

57342-37101

$11.95

25

BAND (L:120)

09407-12402

$3.04
