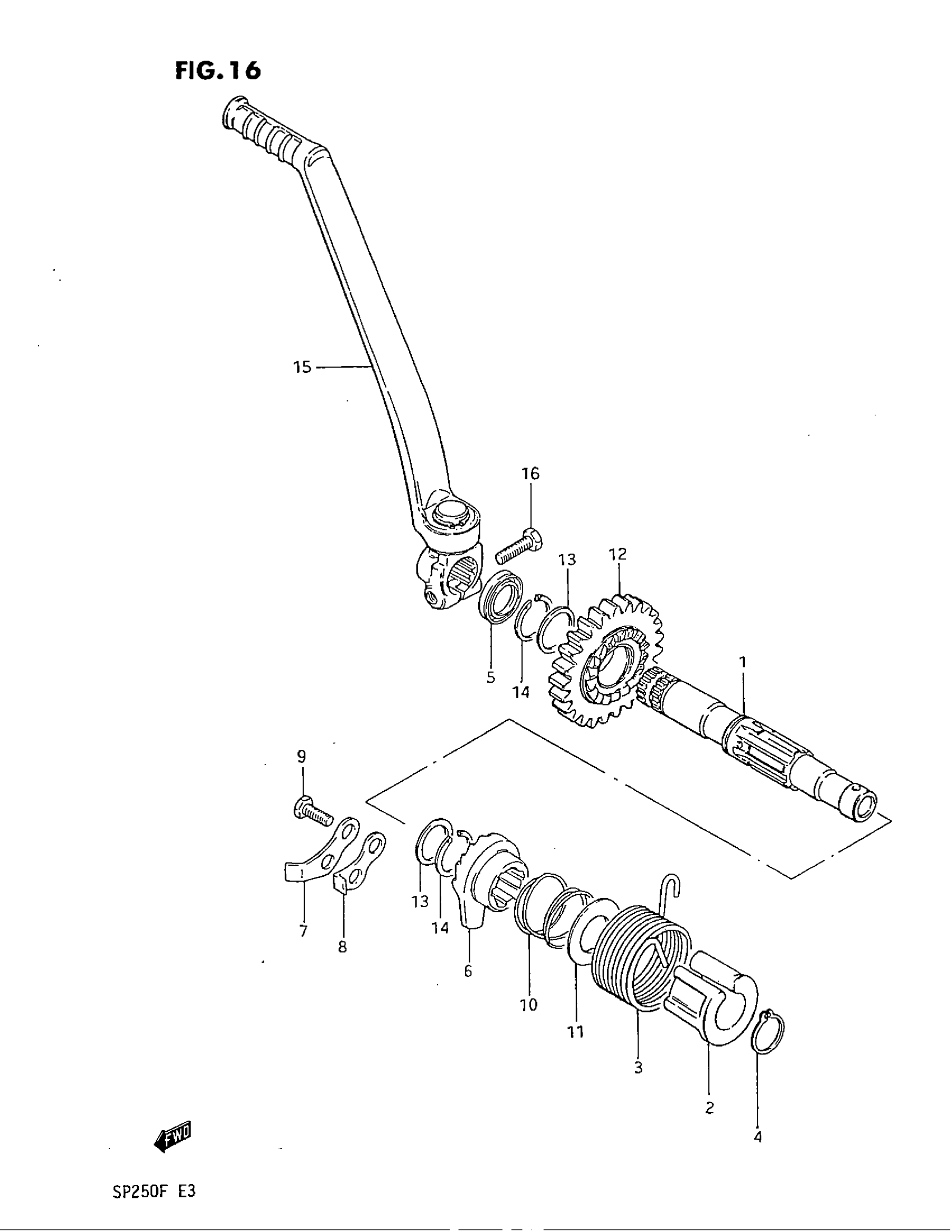

Suzuki SP250 (1985) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-38201

Unavailable

2

GUIDE, SPRING

26221-32400

Unavailable

3

SPRING

09448-45008

$6.99

4

CIRCLIP

09380-17001

$1.98

5

OIL SEAL

09283-20031

$5.24

6

STARTER, KICK This part replaces 26231-38200.

26231-38202

$34.45

7

GUIDE, KICK STARTER

26232-38200

Unavailable

8

STOPPER, KICK STARTER

26233-32400

$5.40

9

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

10

SPRING

09440-32006

$2.38

11

WASHER

08211-17341

$2.50

12

GEAR, DRIVE (NT:25)

26240-38200

Unavailable

13

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

14

CIRCLIP

09380-22006

$3.10

15

LEVER ASSY,KICK This part replaces 26300-38211.

26300-38220

Unavailable

16

BOLT

09100-08194

Unavailable
