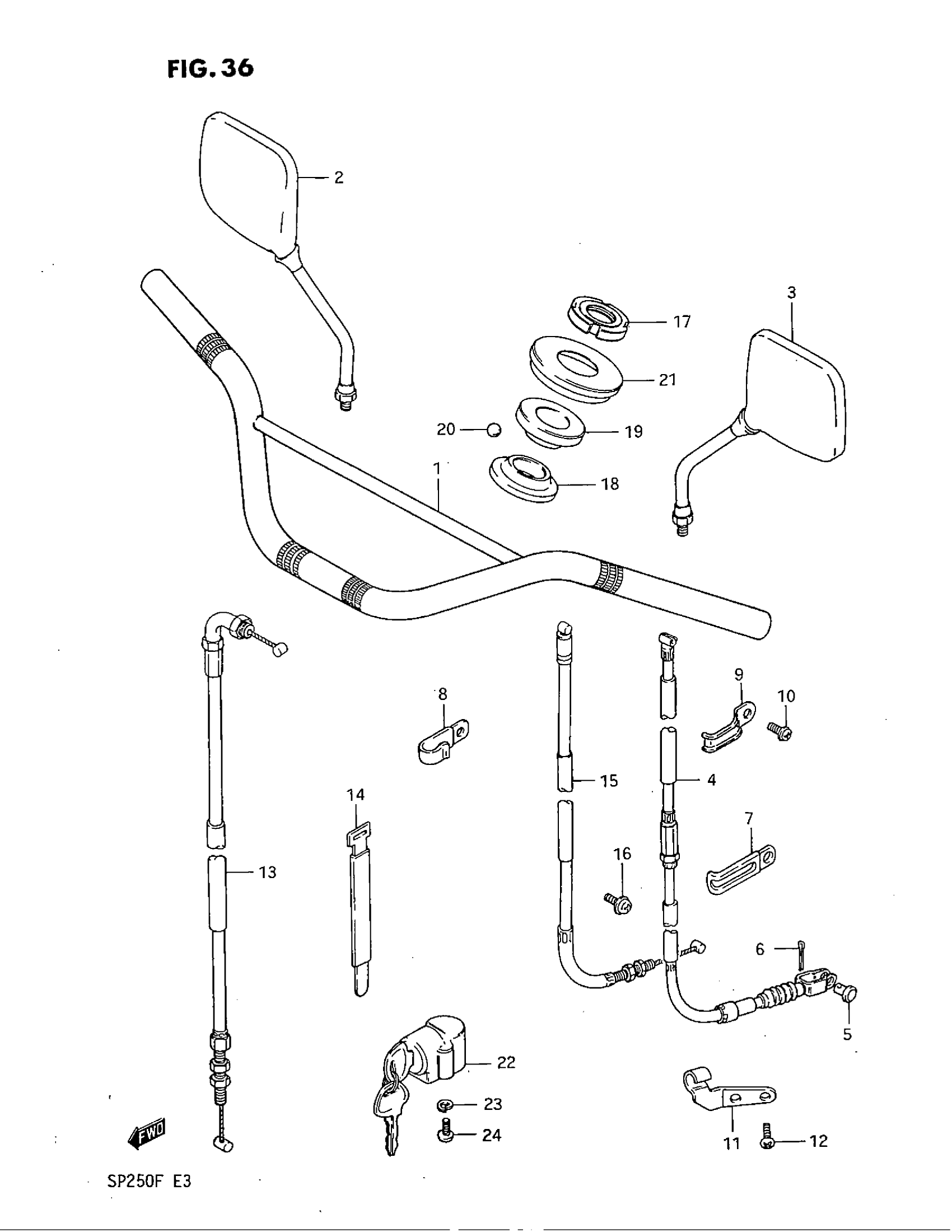

Suzuki SP250 (1985) HANDLEBAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 56110-38220.

56110-38210-291

Unavailable

2

MIRROR ASSY,REA This part replaces 56500-01A50.

56500-13A11

$180.15

3

MIRROR ASSY,REA This part replaces 56600-01A50.

56600-13A11

$180.15

4

CABLE,CLUTCH This part replaces 58200-38200.

58200-38X00

Unavailable

5

PIN

09200-06004

$2.20

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

8

CLAMP This part replaces 09403-09301.

09404-06037

Unavailable

9

CLAMP, UPPER

09403-07310

Unavailable

10

STOPPER, CL RLSE CAM SHAFT This part replaces 02152-06108.

02142-0610A

$1.49

11

STOPPER, CLUTCH CABLE This part replaces 58634-38200.

58634-38210

$8.42

12

SCREW This part replaces 02112-06125.

02112-0612A

$1.49

13

CABLE, THROTTLE

58300-38200

Unavailable

14

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

15

CABLE ASSY,DECO This part replaces 58900-38201.

58900-09B00

Unavailable

16

STOPPER, CL RLSE CAM SHAFT This part replaces 02152-06108.

02142-0610A

$1.49

17

NUT, STEERING STEM

51631-40200

Unavailable

18

RACE, INNER This part replaces 51611-40200.

51611-40201

Unavailable

19

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

Unavailable

20

STEEL BALL

06111-08003

$1.49

21

DUST SEAL, UPPER

51643-40200

$7.96

22

LOCK ASSY, STEERING

51910-25311

$40.33

23

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

24

SCREW This part replaces 02112-05128.

02112-05127

$1.97
