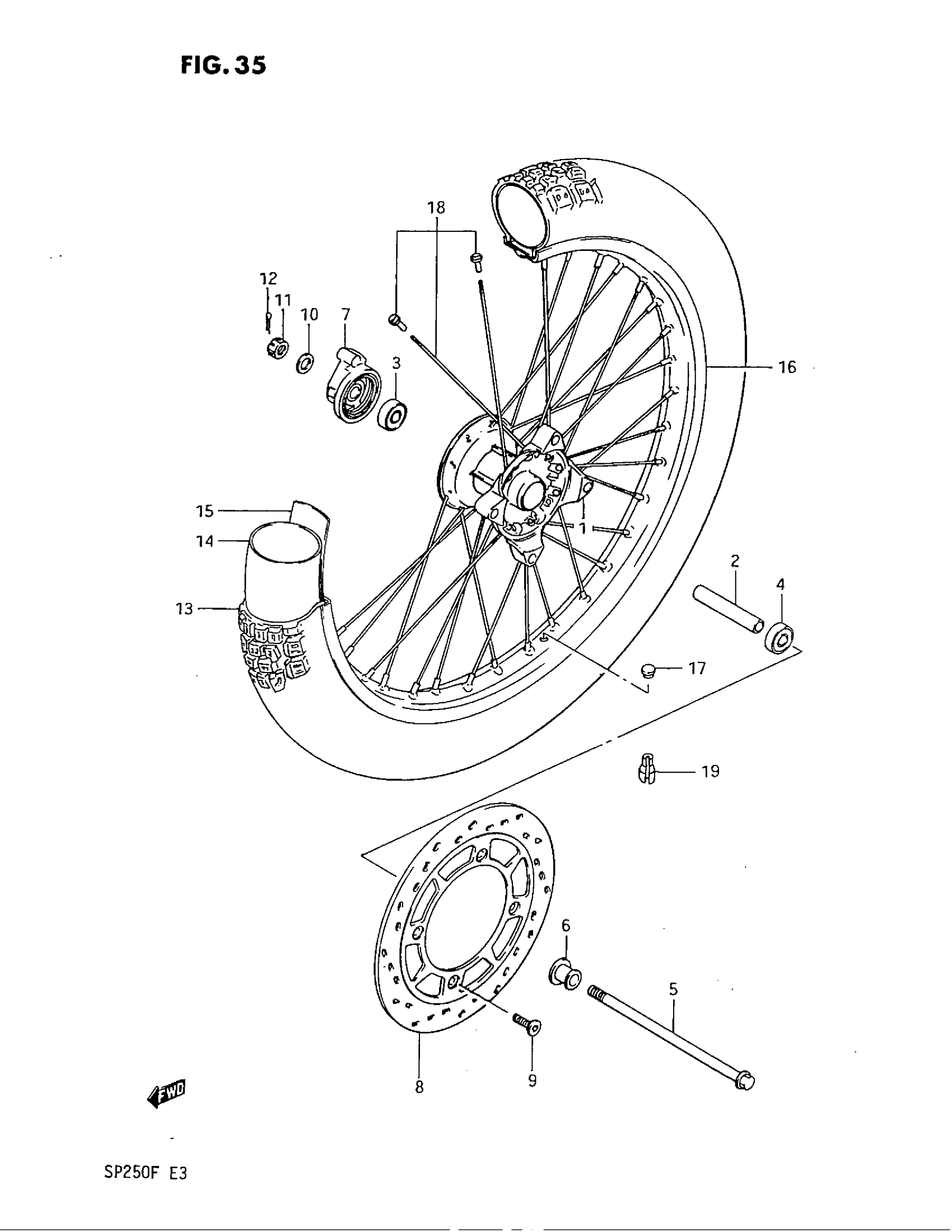

Suzuki SP250 (1985) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54111-13A00.

54111-13A01

Unavailable

2

SPACER (12.5X19X60.50) This part replaces 09180-12109.

09180-12146

$13.61

3

BEARING This part replaces 08113-62017.

08113-6201B

$10.15

4

BEARING This part replaces 08123-62017.

08133-62017

$18.47

5

AXLE, FRONT

54711-48700

Unavailable

6

SPACER, FR AXLE This part replaces 54740-05210.

54740-02B40

$15.68

7

BOX ASSY, SPEEDOMETER

54600-13A00

Unavailable

8

DISK, FRONT BRAKE

59221-38200

Unavailable

9

BOLT This part replaces 59421-03A01.

09106-08155

$3.76

10

WASHER This part replaces 08322-11128.

08322-01127

$1.84

11

NUT This part replaces 08314-41128.

08314-4012A

$2.50

12

PIN This part replaces 04111-30308.

04111-3030A

$1.49

13

TIRE, FRONT (3.00-21) | IRC

55100-37410

Unavailable

13

TIRE, FRONT (3.00-21) | BS

55100-38230

Unavailable

14

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

15

PROTECTOR, INNER TUBE This part replaces 55261-16510.

55261-14540

$3.83

16

NO DESCRIPTION AVAILABLE This part replaces 55311-38260.

55311-15D10

Unavailable

17

CAP, BEAD STOPPER

09250-08013

$2.68

18

SPOKE SET, FR This part replaces 55320-13A00.

55320-29E00

Unavailable

19

BALANCER

55411-30000

Unavailable
