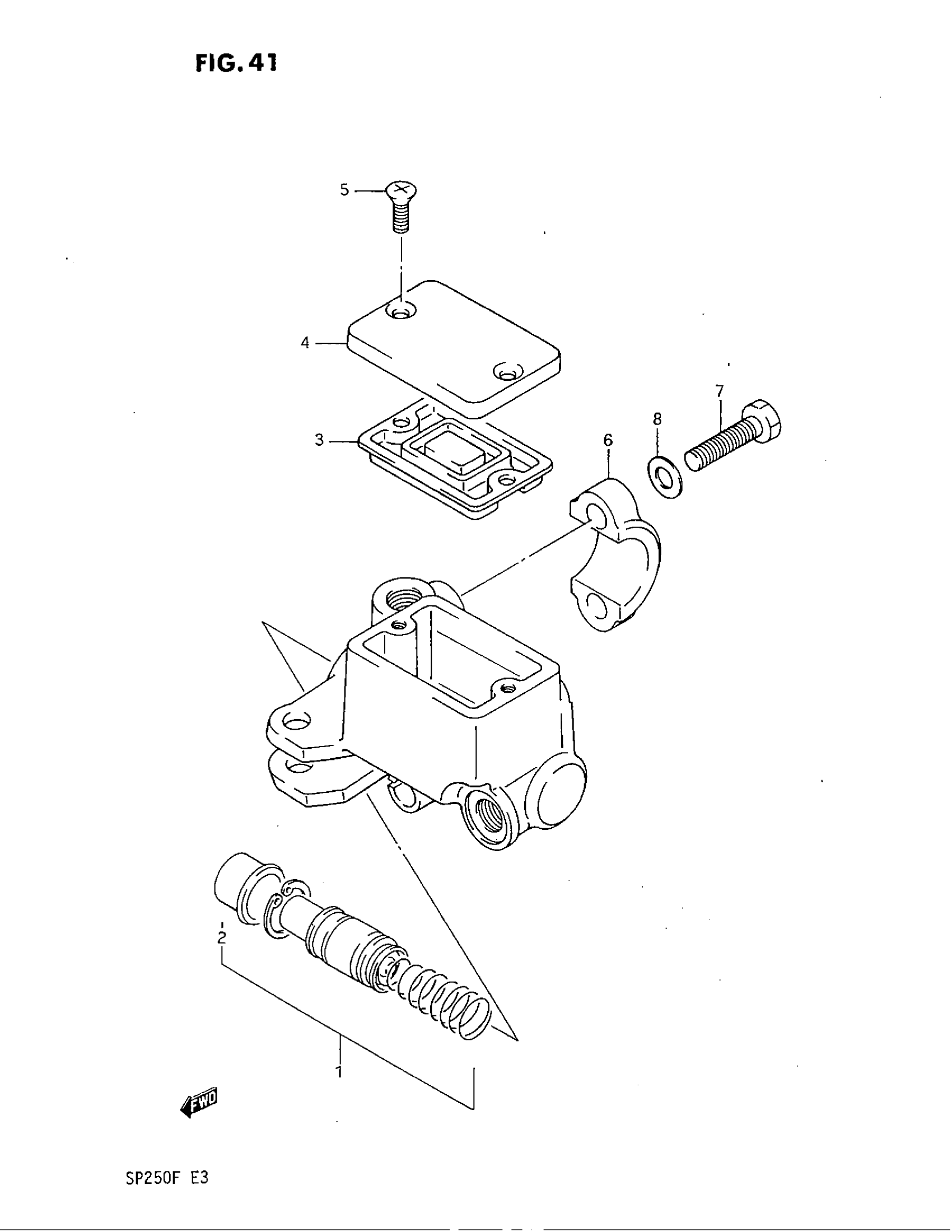

Suzuki SP250 (1985) FRONT MASTER CYLINDER Diagram

#

Description

Price

CYLINDER, FR MA | Includes Item(s) 1 - 8 This part replaces 59600-13A20.

59600-13A60

Unavailable

1

PISTON & CUP SET

59600-13820

$58.13

2

BOOT

59666-44300

$5.80

3

DIAPHRAGM

59667-04700

$9.78

4

CAP This part replaces 59669-04710.

69669-24A01

$15.10

5

SCREW

69689-49300

$1.91

6

.HOLDER

59671-36500

$12.21

7

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

8

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
