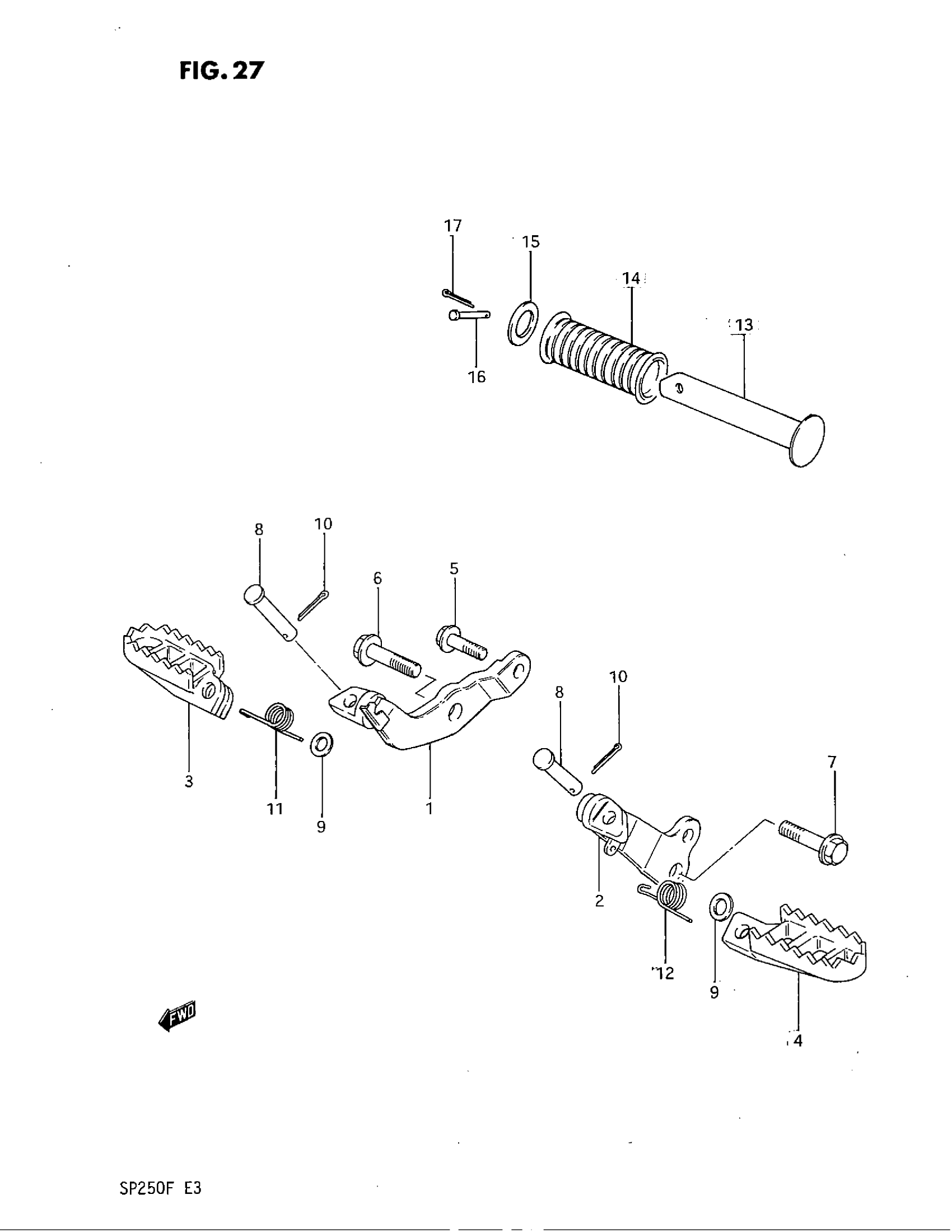

Suzuki SP250 (1985) FOOTREST Diagram

#

Description
Price

1

HOLDER, FOOTREST RH (BLACK)

43510-38200-019

Unavailable

2

HOLDER, FOOTREST LH (BLACK)

43520-38200-019

Unavailable

3

FOOTREST, FRONT RH (BLACK)

43551-37202-019

Unavailable

4

FOOTREST, FRONT LH (BLACK)

43561-40401-019

Unavailable

5

BOLT, PROP SHAFT REAR This part replaces 01517-10205.

01550-1020A

$3.05

6

BOLT, RH

01527-12305

Unavailable

7

BOLT This part replaces 01527-12255.

01550-1225A

$4.05

8

PIN This part replaces 09200-08035.

09200-08064

$6.13

9

WASHER This part replaces 08322-21088.

08322-01087

$2.13

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

11

SPRING, RH

09448-14022

Unavailable

12

SPRING,FR FOOTR This part replaces 09448-14018.

09448-14018-XC0

Unavailable

13

BAR, PILLION FOOTREST

43610-03001

$6.52

14

RUBBER

43612-03001

$5.15

15

WASHER This part replaces 09160-19006.

09160-19024

$2.65

16

PIN

09200-06010

$1.72

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
