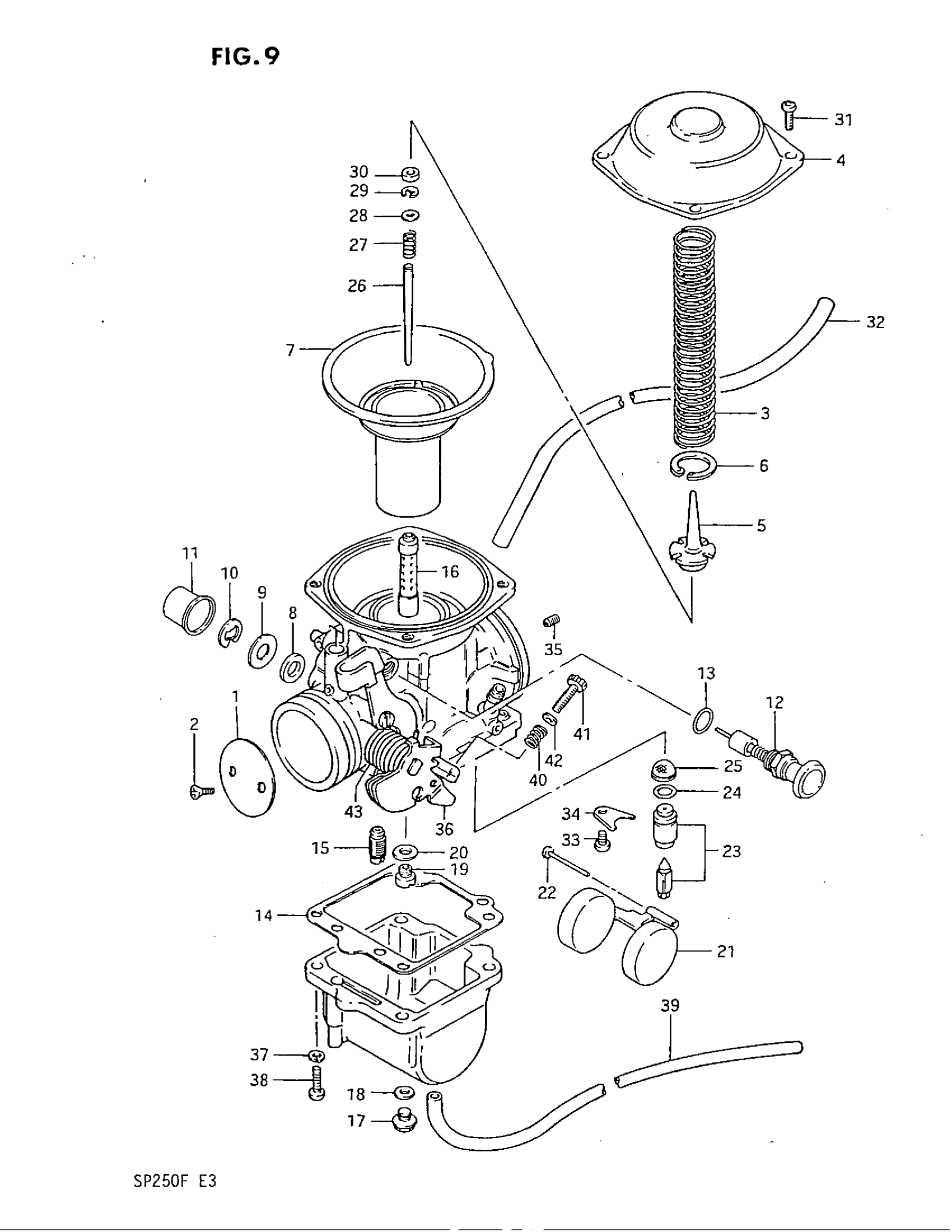

Suzuki SP250 (1985) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 43

13200-38210

Unavailable

1

THROTTLE VALVE (100)

13551-38300

Unavailable

2

SCREW

13604-44080

$2.92

3

SPRING

13503-37100

Unavailable

4

COVER

13502-38300

Unavailable

5

HOLDER, GUIDE

13389-44030

Unavailable

6

CLIP, SPRING

13581-44030

$6.78

7

DIAPHRAGM ASSY This part replaces 13500-38211.

13500-38351

$192.47

8

SEAL This part replaces 13651-51010.

13651-51011

$2.20

9

PACKING

13557-47070

$3.59

10

E RING

13617-44080

$2.90

11

CAP

13578-47070

$4.52

12

PLUNGER ASSY This part replaces 13410-38210.

13411-37400

Unavailable

13

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

14

.GASKET This part replaces 13251-37100.

13251-37101

$11.25

15

.JET, PILOT (#42.5)

09492-42010

$9.32

16

JET, NEEDLE (O-9)

09494-00362

Unavailable

17

SCREW, PLUG

13247-44080

$7.97

18

PACKING

13246-44080

$2.80

19

JET, MAIN (125)

09491-25010

$11.02

20

WASHER

13382-03110

$2.80

21

FLOAT ASSY

13250-37100

$30.36

22

PIN, FROAT

13254-92311

$2.07

23

VALVE ASSY, NEEDLE This part replaces 13370-37400.

13370-24C80

$89.23

24

O RING This part replaces 66263-99050.

13374-35C00

$5.99

25

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

26

NEEDLE, JET (5DT88)

13383-38210

Unavailable

27

SPRING

13388-44030

$8.12

28

WASHER

13382-44030

$3.71

29

E RING

13394-10010

$5.45

30

RING This part replaces 13387-38210.

13387-47010

$7.22

31

SCREW This part replaces 02112-05108.

02112-05107

$1.49

32

HOSE,5X10X600 | L:400->350 This part replaces 13683-11420.

44421-13ER0

$10.06

33

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

34

PLATE

13373-39110

$6.64

35

JET, PILOT AIR (145)

09493-29001

Unavailable

36

SHAFT ASSY

13550-38300

Unavailable

37

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

38

SCREW This part replaces 02112-05168.

02112-05167

$1.97

39

HOSE (3.5X6.5X600) This part replaces 13684-38300.

09351-35653-600

$4.64

40

SPRING This part replaces 13271-44220.

13268-37420

$5.32

41

ADJUSTER This part replaces 13267-37100.

13267-25D00

$14.20

42

RING

13574-45110

Unavailable

43

SPRING

13573-38300

Unavailable
