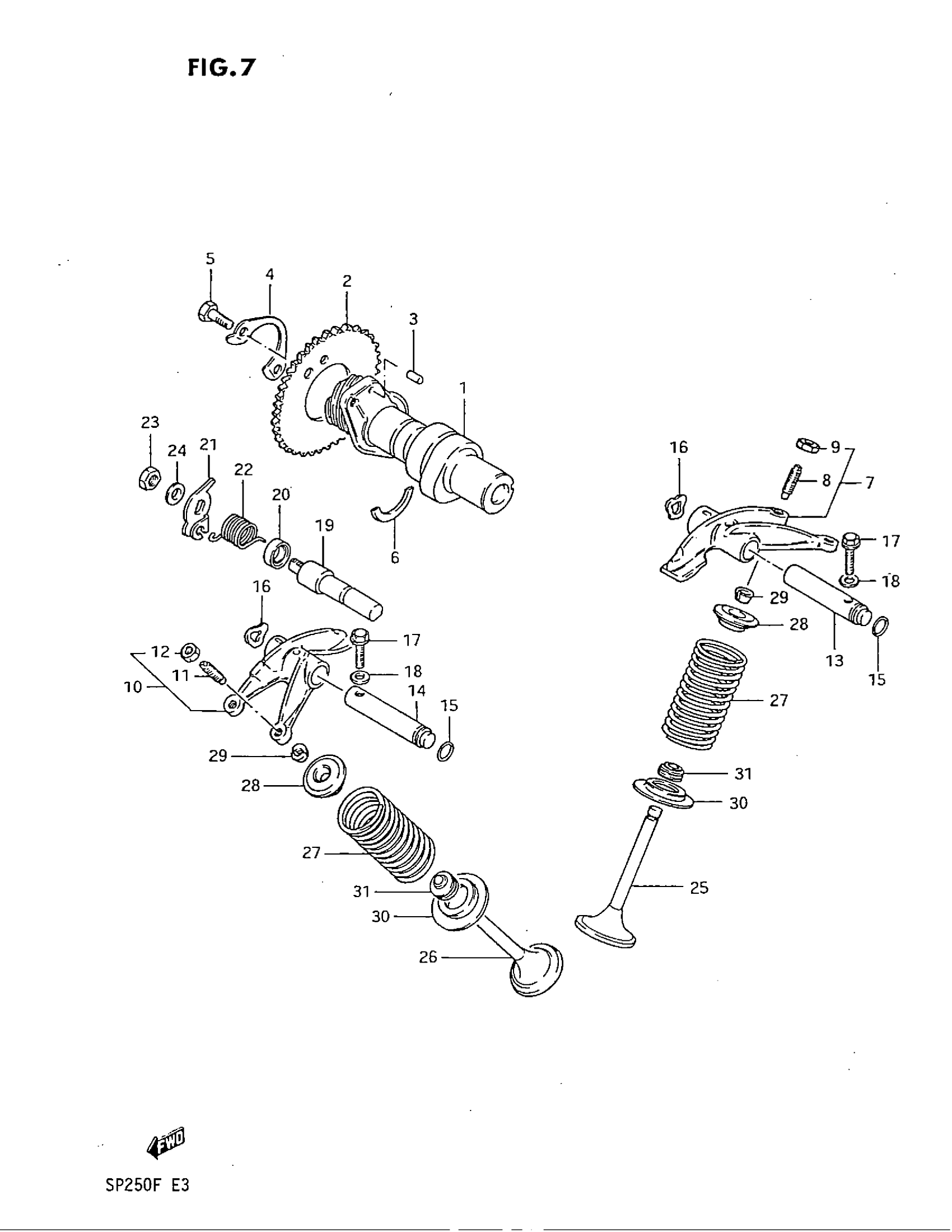

Suzuki SP250 (1985) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT This part replaces 12711-38200.

12711-38212

Unavailable

2

SPROCKET (NT:42)

12741-37400

Unavailable

3

PIN

04221-05109

$1.49

4

WASHER This part replaces 12747-44000.

12747-44001

$2.50

5

BOLT

09111-06027

$1.72

6

C RING

09390-25003

$2.48

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9 This part replaces 12840-38200.

12840-38201

Unavailable

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING This part replaces 12843-49210.

12843-27A00

$2.94

10

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 11 - 12 This part replaces 12850-38200.

12850-38201

Unavailable

11

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

12

.NUT,TAPPET ADJUSTING This part replaces 12843-49210.

12843-27A00

$2.94

13

SHAFT, ROCKER ARM IN | L:91.5

12861-38200

Unavailable

14

SHAFT, ROCKER ARM EX | L:76

12871-38200

$29.25

15

.O RING (D:1.9,ID:8.6) This part replaces 09280-09004.

09280-09005

$3.70

16

WASHER

09164-12018

$1.49

17

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

18

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

19

SHAFT, DECOMPRESSION

12941-37103

Unavailable

20

SEAL, OIL This part replaces 09284-10008.

09282-10014

$6.70

21

LEVER, SHAFT RH This part replaces 12942-37100.

12942-37101

Unavailable

22

SPRING

09448-17014

$4.07

23

NUT, ADJUSTER This part replaces 08310-22085.

09140-08021

$2.63

24

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

25

VALVE, INTAKE (OD:26)

12911-38200

$43.92

26

VALVE, EXHAUST This part replaces 12912-38200.

12912-38201

$76.35

27

VALVE SPRING

12921-38211

$9.58

28

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

29

COTTER, VALVE

12932-49200

$2.28

30

SEAT, SPRING

12933-38200

$6.38

31

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70
