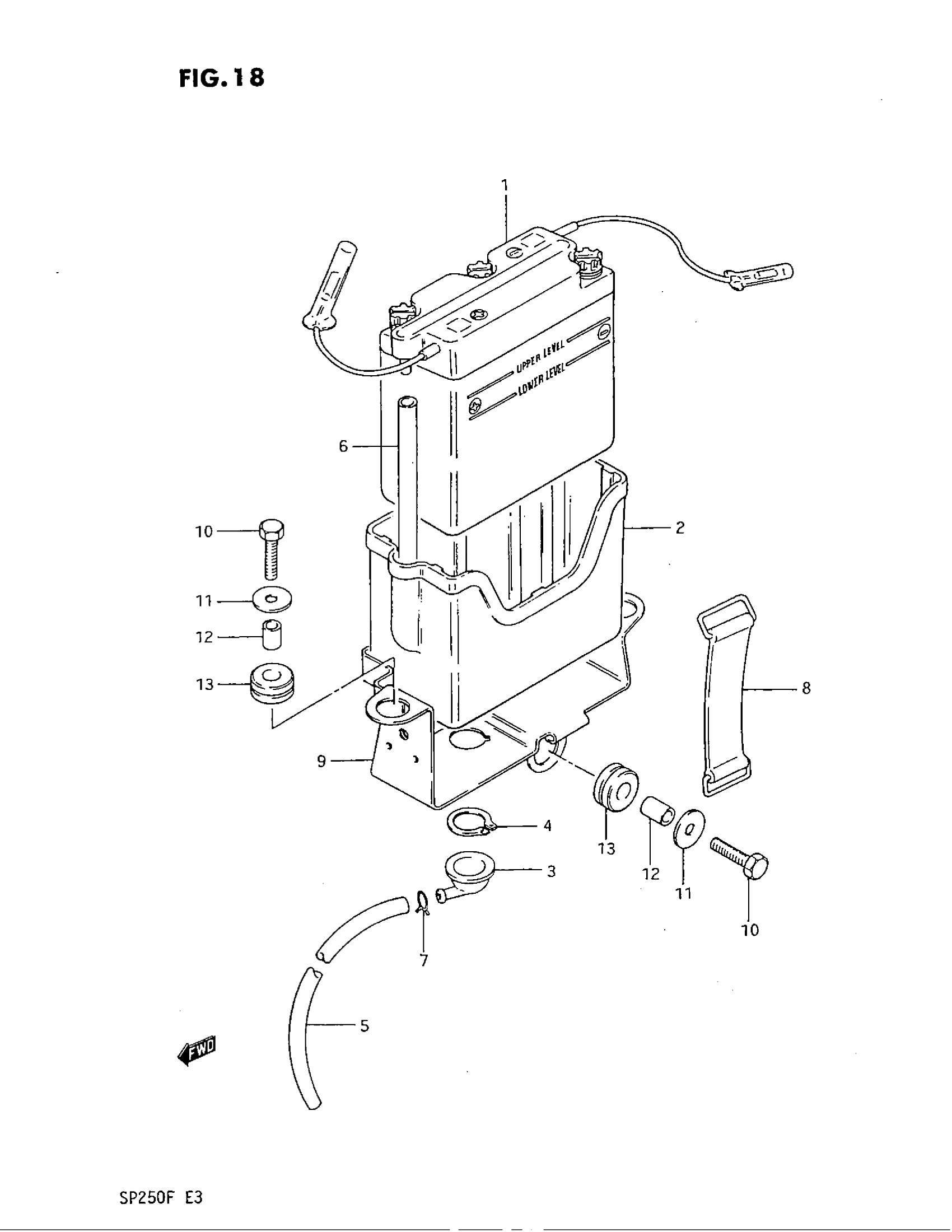

Suzuki SP250 (1985) BATTERY Diagram

#

Description
Price

1

6N4B-2A BATTERY This part replaces 33610-32620.

33610-03611

$79.23

2

CASE, BATTERY

33661-32400

Unavailable

3

FUNNEL, EXHAUST

33662-32401

Unavailable

4

CIRCLIP This part replaces 08331-31178.

08331-31179

$1.90

5

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$6.78

6

HOSE,BATTERY EX This part replaces 33681-47000.

33680-16A11

$6.78

7

CLIP

09401-08301

$1.65

8

BAND, BATTERY

09462-00034

$4.24

9

HOLDER, BATTERY

41540-38201

Unavailable

10

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

11

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

12

SPACER

09180-06038

$1.98

13

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97
