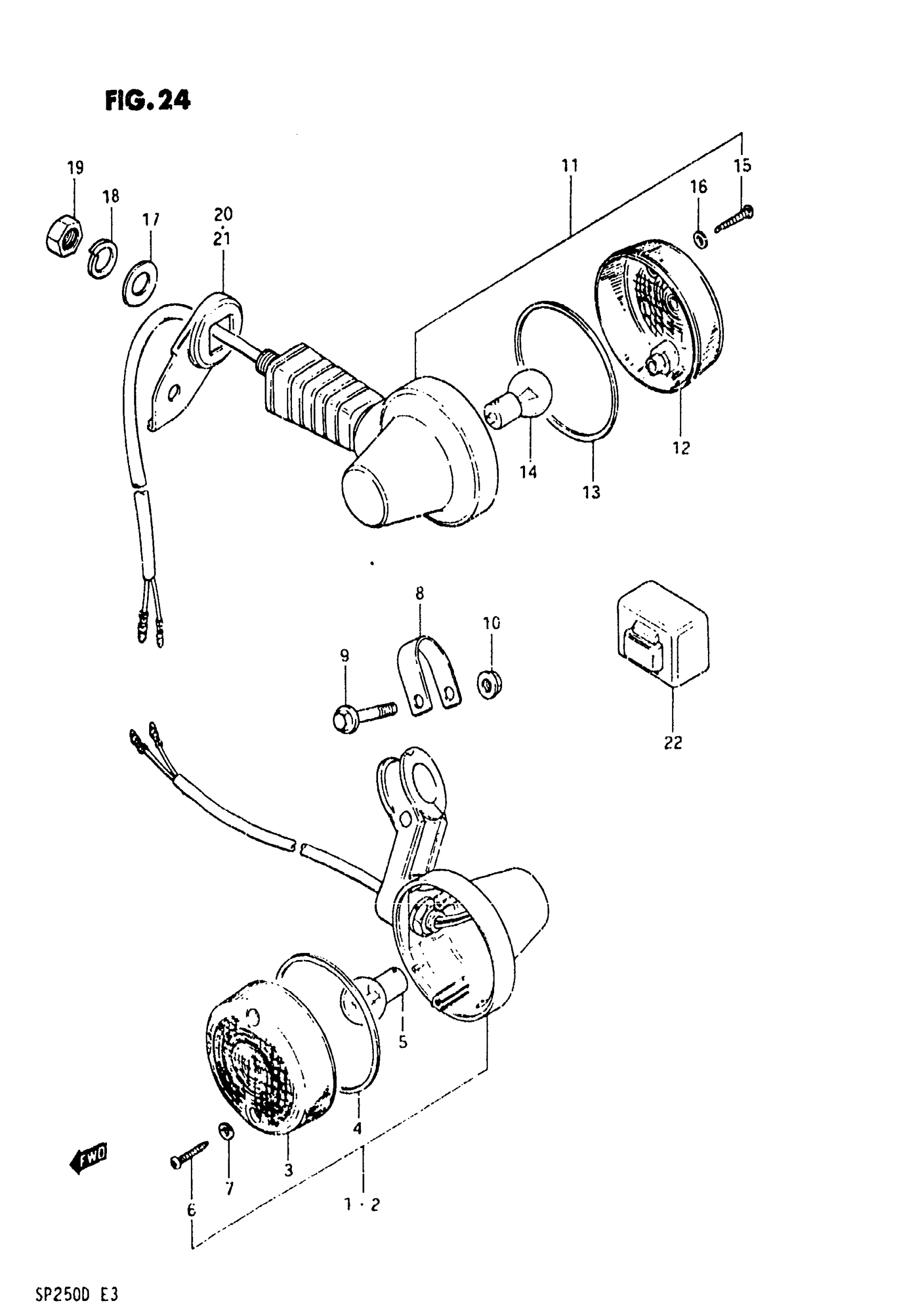

Find the part on the Turn Signal Lamp diagram for your 1983 Suzuki SP250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki SP250 Turn Signal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP, FRONT TURN SIGNAL RH This part replaces 35601-38210.

35601-38210-999

1
Out of stock

2

LAMP, FRONT TURN SIGNAL LH | Includes Item(s) 3 - 8 This part replaces 35602-38210.

35602-38210-999

1
Out of stock

3

LENS,FR TRNSIG This part replaces 35612-48530.

35612-01A70

2
Out of stock

4

GASKET

35613-28620

2
Out of stock

5

BULB (6V,17W)

09471-06011

2
Out of stock

6

SCREW This part replaces 03211-04258.

03211-0425B

4
Out of stock

7

GASKET

35627-43010

4

$2.65

In stock

8

PLATE

35616-05210

2
Out of stock

9

BOLT

09103-05003

2
Out of stock

10

NUT This part replaces 08316-16058.

08316-1005A

2
Out of stock

11

LAMP, REAR TURN SIGNAL | MODEL Z This part replaces 35603-38210.

35603-38201-999

2
Out of stock

11

LAMP, REAR TURN SIGNAL | MODEL D; Includes Item(s) 12 - 16 This part replaces 35603-38211.

35603-38201-999

2
Out of stock

12

LENS,FR TRNSIG This part replaces 35612-48530.

35612-01A70

2
Out of stock

13

GASKET

35613-28620

2
Out of stock

14

BULB (6V,17W)

09471-06011

2
Out of stock

15

SCREW This part replaces 03211-04258.

03211-0425B

4
Out of stock

16

GASKET

35627-43010

4

$2.65

In stock

17

WASHER This part replaces 09160-12049.

09160-12048

2
Out of stock

18

LOCK WASHER This part replaces 08321-21128.

08321-01127

2
Out of stock

19

NUT, FIXED DRIVE FACE This part replaces 08310-12128.

09140-12039

2
Out of stock

20

BRACKET, RH

35621-38201

1
Out of stock

21

BRACKET, LH

35641-38201

1
Out of stock

22

RELAY ASSY,TRN This part replaces 38610-48600.

38610-05X50

1
Out of stock
