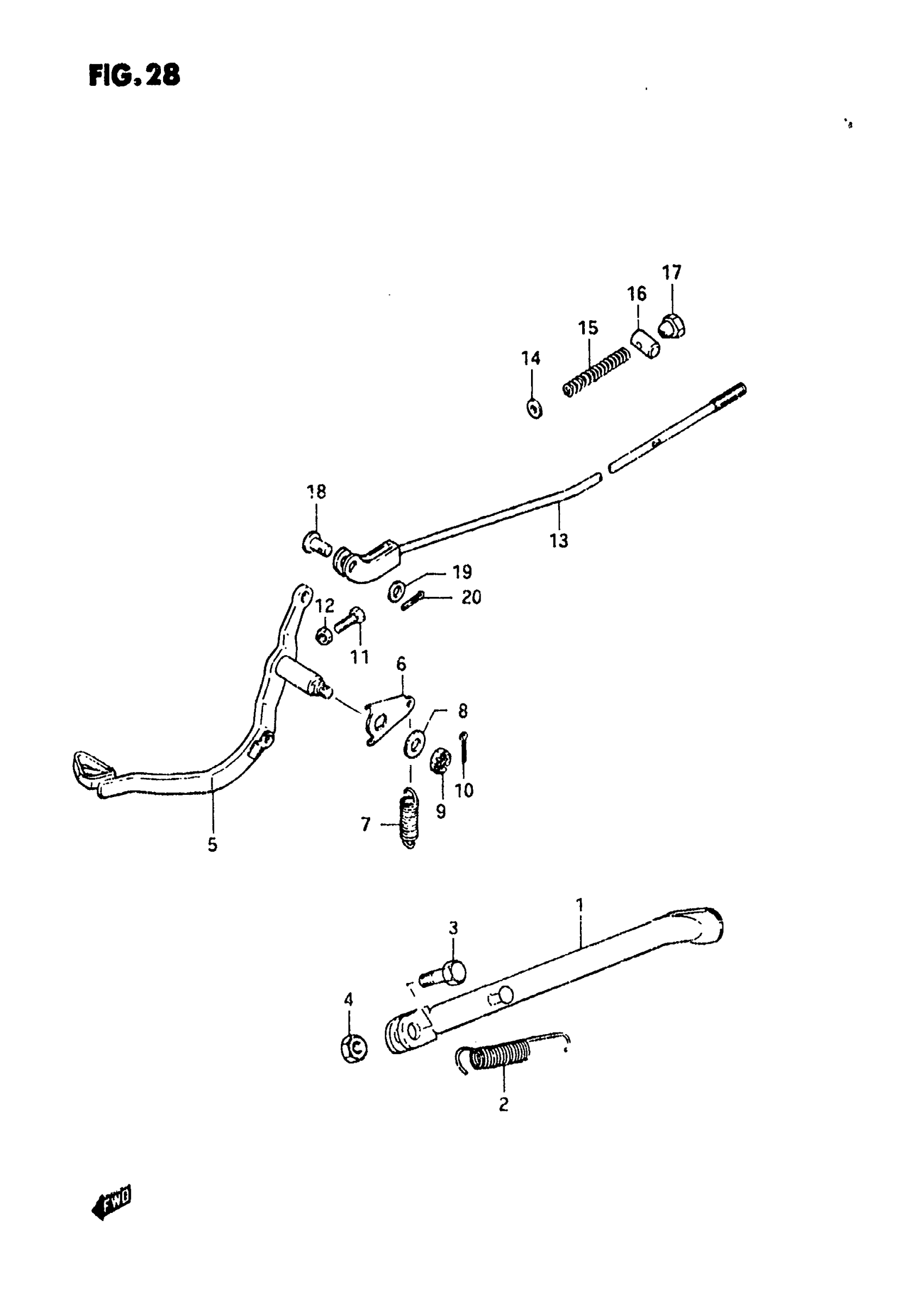

Suzuki SP250 (1983) STAND - REAR BRAKE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 42310-38200.

42310-38240-019

Unavailable

2

SPRING

09443-17007

$3.71

3

BOLT (10X30)

09100-10067

$2.71

4

NUT This part replaces 08310-22108.

08310-00107

$2.25

5

PEDAL, BRAKE

43110-38200

Unavailable

6

ARM, BRAKE PEDAL

43128-38200

$3.80

7

SPRING This part replaces 09443-14020.

09443-14015

$2.80

8

WASHER

08211-08202

$2.29

9

NUT This part replaces 08314-41088.

08314-4008B

$3.30

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

11

BOLT (6x27)

09100-06009

$1.79

12

.NUT This part replaces 08310-11068.

08310-00067

$1.91

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 20 This part replaces 43300-38200.

43300-38X51

Unavailable

14

WASHER This part replaces 08322-21068.

08322-01067

$1.93

15

SPRING

09440-09004

$2.06

16

PIN

09209-11002

$2.17

17

.NUT | MODEL Z This part replaces 09150-06001.

09150-06010

$2.88

17

.NUT | MODEL D This part replaces 09150-06009.

09150-06010

$2.88

18

PIN

09200-06039

Unavailable

19

WASHER This part replaces 08322-21068.

08322-01067

$1.93

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25
