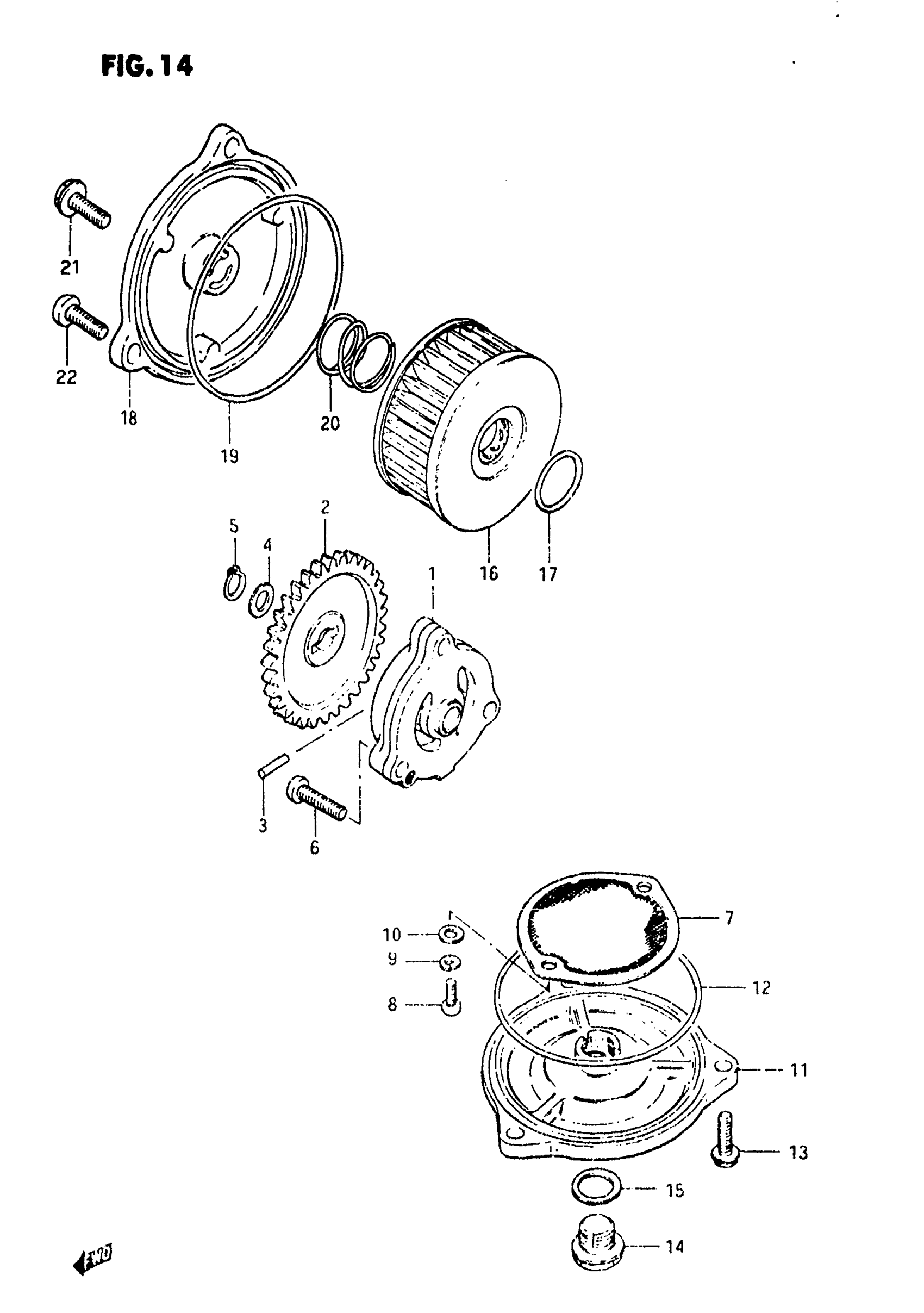

Suzuki SP250 (1983) OIL PUMP Diagram

#

Description
Price

1

PUMP, ENGINE OIL

16400-38200

Unavailable

2

GEAR, DRIVEN (NT:33)

16331-38200

$51.22

3

PIN

09261-04009

$1.56

4

WASHER

08221-10185

$2.35

5

CIRCLIP

08331-31109

$1.82

6

SCREW This part replaces 02112-06256.

02112-0625A

$1.85

7

STRAINER, ENGINE OIL

16520-37400

$9.17

8

SCREW This part replaces 02112-05128.

02112-05127

$2.01

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.89

10

WASHER This part replaces 08322-21058.

08322-01057

$1.93

11

CAP

16523-38200

$27.40

12

O RING

09280-82001

$4.81

13

BOLT This part replaces 01547-06208.

01547-06207

$2.09

14

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.86

15

GASKET

09168-14004

$1.69

16

FILTER, ENGINE OIL

16510-38240

$5.55

17

O RING

09280-16005

$2.31

18

CAP,OIL FILTER | MODEL Z This part replaces 16512-38210.

16512-14D00

$40.83

18

CAP,OIL FILTER | MODEL D This part replaces 16512-38200.

16512-14D00

$40.83

19

.O RING (D:2.4,ID:73)

09280-72001

$4.60

20

SPRING

09440-21004

$2.99

21

BOLT | MODEL Z This part replaces 01547-06208.

01547-06207

$2.09

22

SCREW | MODEL D This part replaces 02112-06205.

02112-0620A

$1.49
