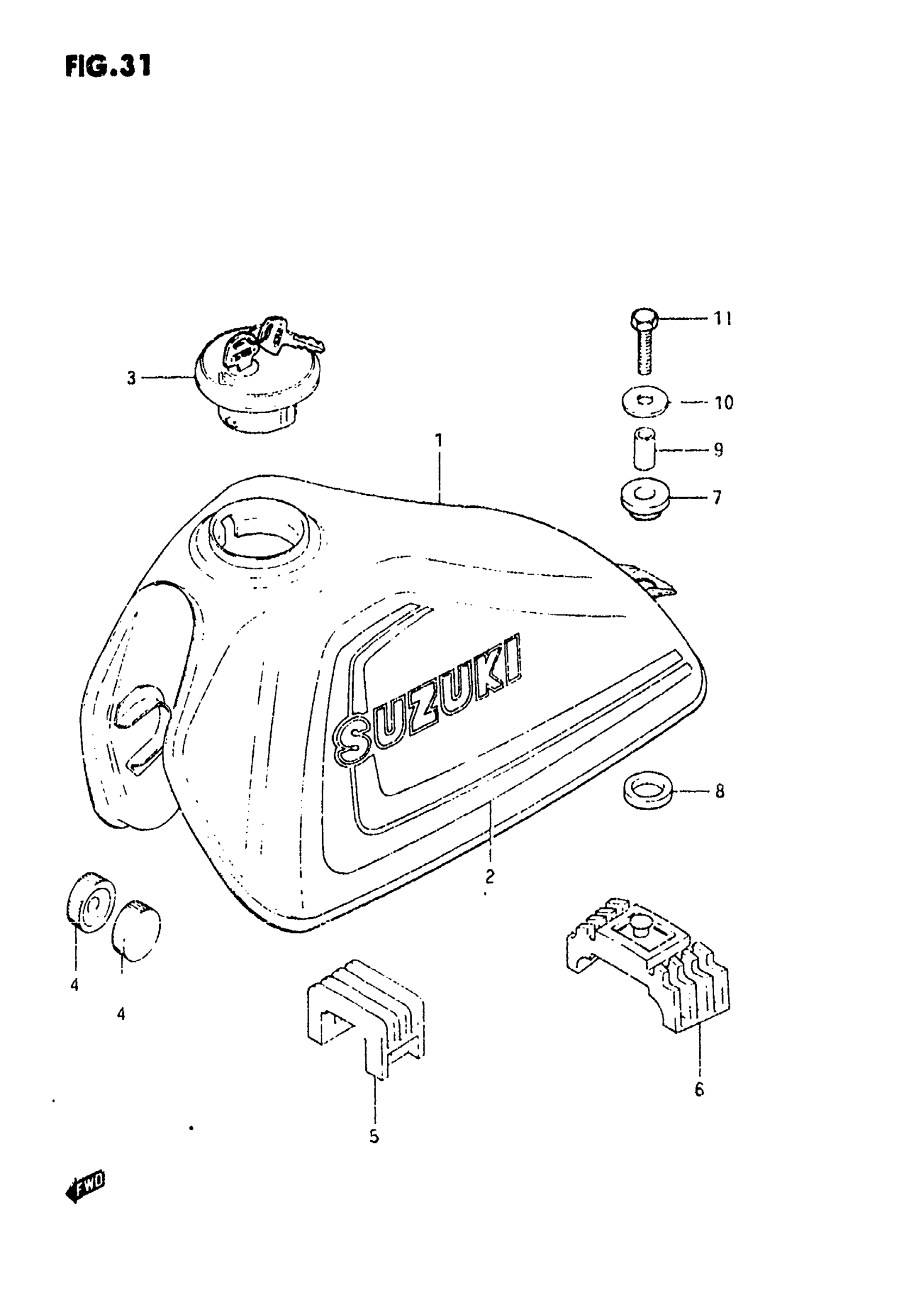

Suzuki SP250 (1983) FUEL TANK (MODEL D) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-38260-07P.

44110-38201-YD8

Unavailable

2

TAPE SET

68110-38230-73J

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-30516-KEY.

44200-30832

$105.35

4

CUSHION, FRONT

09329-10016

$2.88

5

CUSHION, UPPER FRONT

44541-38200

Unavailable

6

CUSHION, UPPER REAR

44542-38200

Unavailable

7

CUSHION, REAR NO.1 This part replaces 09320-12010.

09320-12013

$2.68

8

CUSHION, REAR NO.2 This part replaces 09320-12023.

09320-12017

$2.02

9

SPACER

09180-08067

$2.40

10

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.17

11

BOLT This part replaces 01107-08308.

01500-08307

$2.82
