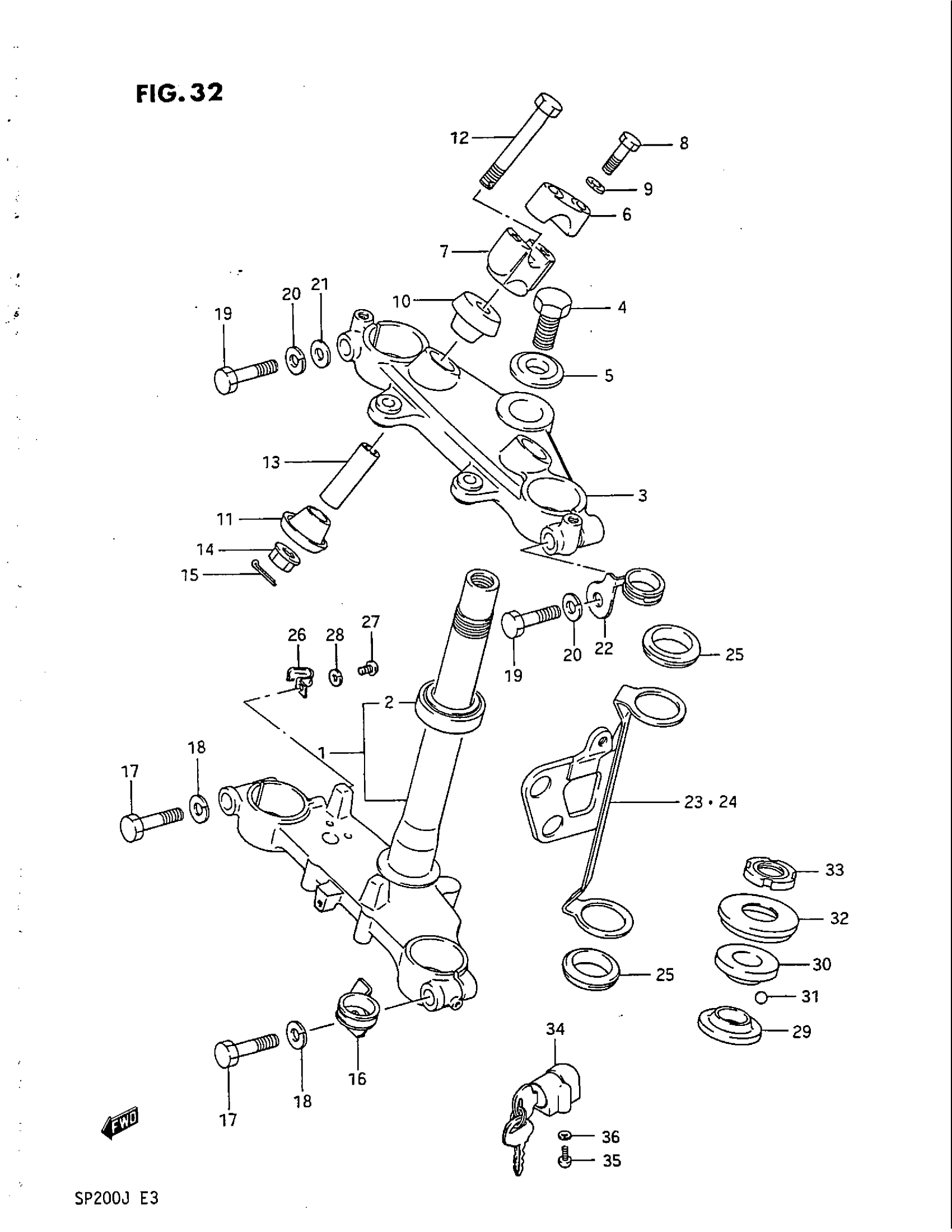

Suzuki SP200 (1988) STEERING STEM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 51410-44A10-291.

51410-44A10

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

STEM HEAD, STEERING (BLACK)

51311-42A00-291

Unavailable

4

BOLT

51352-42A00

Unavailable

5

WASHER This part replaces 51356-20510.

51356-41310

Unavailable

6

HOLDER, HANDLE UPPER (BLACK)

56211-27200-291

$17.90

7

HOLDER, HANDLE LOWER (BLACK)

56221-42A00-291

$45.38

8

BOLT This part replaces 01107-08355.

01500-0835B

$3.04

9

LOCK WASHER This part replaces 08321-31084.

08321-0108A

$1.84

10

CUSHION,RUBBER, This part replaces 56240-42A00.

56240-42A01

$30.47

11

RUBBER,LWR This part replaces 56260-42A00.

56260-42A01

$35.23

12

BOLT, LOWER HANDLE This part replaces 56222-42A00.

56321-28C60

Unavailable

13

SPACER

56243-42A00

$8.03

14

NUT

08319-31107

$2.73

15

PIN This part replaces 04111-20308.

04111-2030A

$1.50

16

CLIP

51452-42A00

Unavailable

17

BOLT

51451-42A00

Unavailable

18

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

19

BOLT

51451-42A00

Unavailable

20

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

21

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.84

22

CLIP

51455-42A00

Unavailable

23

BRACKET, HEADLAMP RH

51530-42A00

Unavailable

24

BRACKET, HEADLAMP LH

51540-42A00

Unavailable

25

CUSHION

51553-34280

$5.50

26

CLIP

51452-05130

Unavailable

27

SCREW This part replaces 02112-06108.

02112-06107

$1.49

28

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

29

RACE, STEERING INNER

51611-40201

Unavailable

30

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

Unavailable

31

STEEL BALL

06111-08003

$1.49

32

DUST SEAL

51643-40200

$7.96

33

NUT, STEERING STEM

51631-40200

Unavailable

34

LOCK ASSY, STEERING

51900-30831

Unavailable

35

SCREW This part replaces 02112-05128.

02112-05127

$1.97

36

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84
