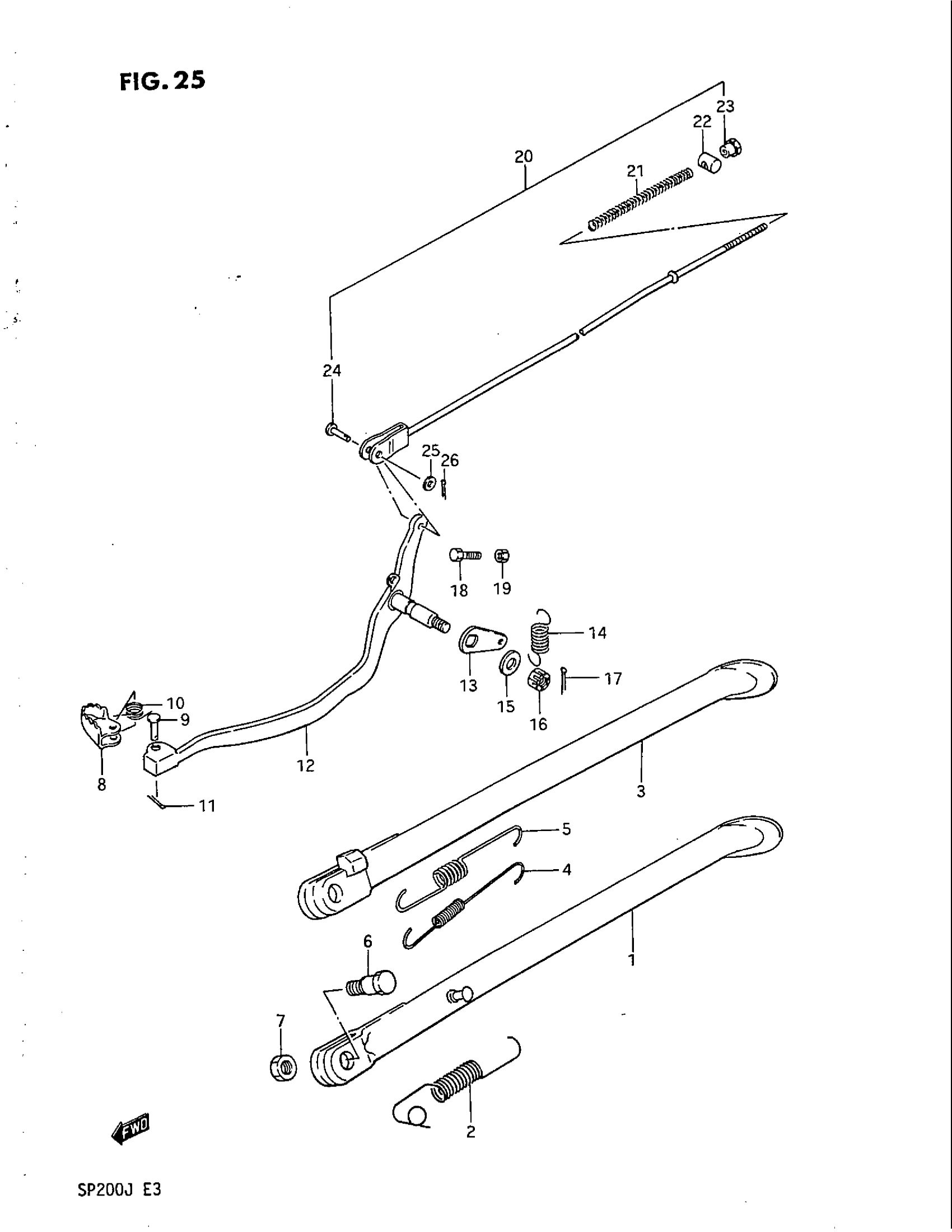

Suzuki SP200 (1988) STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP (BLACK) | MODEL G

42310-42A10-019

Unavailable

2

SPRING | MODEL G

09443-15024

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 42310-42A21-019.

42310-42A23-019

Unavailable

4

SPRING | MODEL H/J

09443-12035

$9.48

5

SPRING | MODEL H/J

09443-20003

$16.32

6

BOLT This part replaces 09111-10019.

09111-10047

$4.11

7

NUT This part replaces 08310-22107.

08310-00107

$2.19

8

PEDAL, BRAKE

43110-14130

$16.15

9

PIN

09200-06038

$2.38

10

SPRING This part replaces 09444-11004.

09444-11005

$2.86

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

ARM, BRAKE PEDAL This part replaces 43120-44A10.

43120-44A12

$73.53

13

ARM, BRAKE PEDAL RETURN

43128-38200

$3.37

14

SPRING

09443-14002

$2.12

15

WASHER

08211-08202

$2.53

16

NUT This part replaces 08314-41088.

08314-4008B

$3.03

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

18

BOLT (6x27)

09100-06009

$1.91

19

.NUT This part replaces 08310-11067.

08310-00067

$2.13

20

ROD ASSY, REAR BRAKE | Includes Item(s) 21 - 26 This part replaces 43300-42A01.

43300-42A02

$19.82

21

SPRING

09440-09004

$2.20

22

.PIN (13X18) This part replaces 09209-13005.

09209-13018

$3.42

23

.NUT This part replaces 09150-06009.

09150-06010

$3.10

24

PIN

09200-06013

$2.00

25

WASHER This part replaces 08322-21067.

08322-01067

$2.13

26

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
