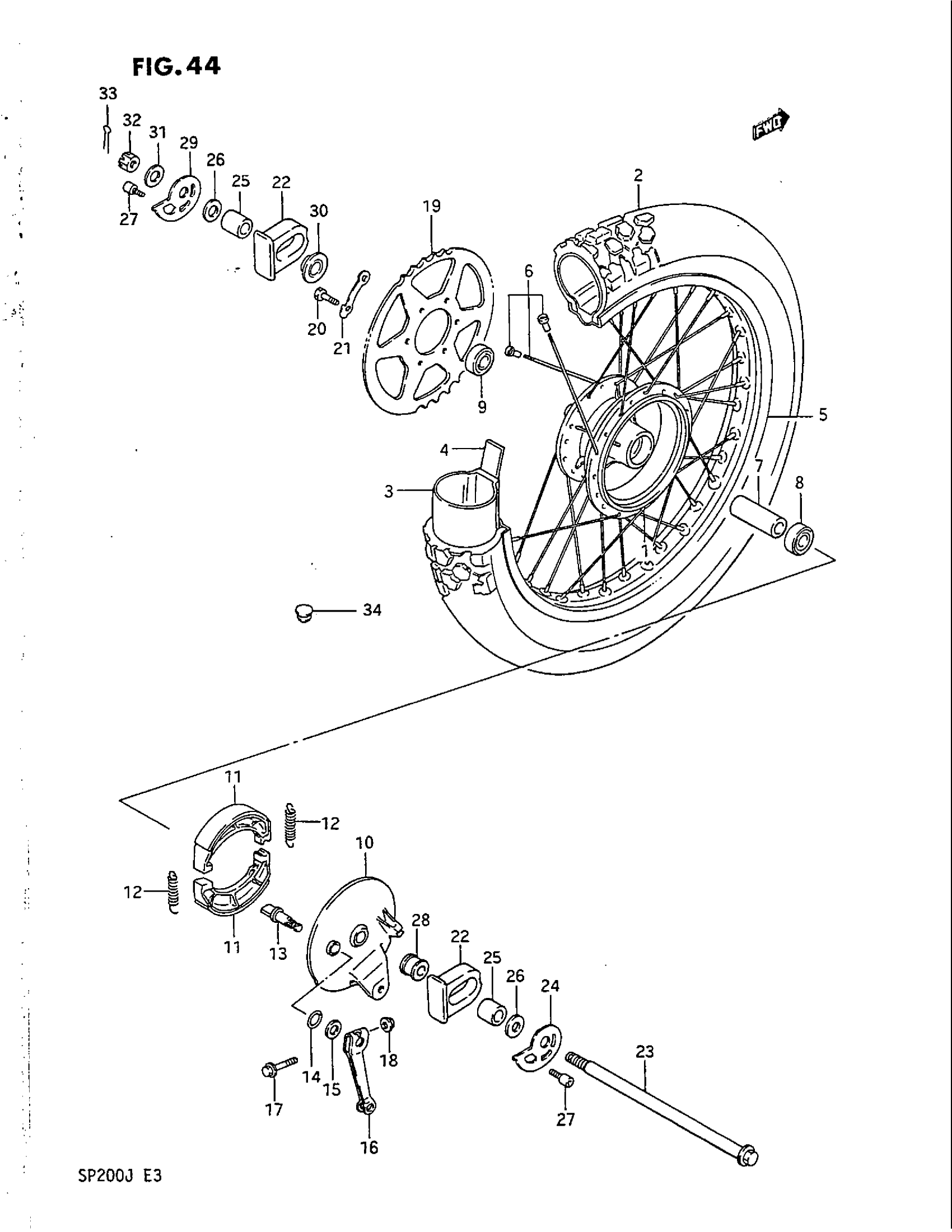

Suzuki SP200 (1988) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL (BLACK) This part replaces 64110-44A00.

64110-44A01

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 65100-42A00.

65100-01A50

Unavailable

3

TUBE ASSY, WHEEL INNER This part replaces 65200-33030.

65200-44AA0

$53.43

4

PROTECTOR, INNER TUBE This part replaces 65261-29230.

65261-33030

$5.50

5

RIM, REAR WHEEL (215X18) GOLD | TO 65311-42A11MODEL G/H This part replaces 65311-42A01.

65311-42A11

Unavailable

5

RIM, REAR WHEEL (215X18) GOLD | MODEL J

65311-42A11

Unavailable

6

SPOKE ASSY, REAR

65320-42A01

Unavailable

7

SPACER, HUB BEARING

09180-15013

$13.53

8

BEARING, RH

08143-62027

$16.01

9

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

10

PANEL, REAR HUB

64210-48000

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL G/H This part replaces 54410-37400.

54400-37820

Unavailable

11

SHOE SET,BRAKE | MODEL J This part replaces 54410-37410.

54400-37830

Unavailable

12

SPRING This part replaces 09443-07001.

09443-07025

$2.08

13

CAM, BRAKE This part replaces 54441-29304.

54441-29305

$20.02

14

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

15

WASHER This part replaces 09160-14001.

09160-14055

$2.39

16

LEVER, BRAKE CAM

64451-30501

$20.06

17

BOLT This part replaces 01517-06408.

01550-06407

$2.69

18

NUT This part replaces 09159-06017.

08319-31067

$2.03

19

SPROCKET, REAR (NT:45) This part replaces 64511-42A00.

64511-42A01

$61.40

20

BOLT

09111-08065

Unavailable

21

WASHER

09169-08013

$2.23

22

CAP,RR SWINGARM This part replaces 61470-42A00.

61470-42A01

$10.05

23

AXLE, REAR This part replaces 64711-44A10.

64711-44A11

$49.02

24

ADJUSTER, CHAIN RH

61411-42A00

$12.57

25

SPACER

61413-42A00

$10.07

26

WASHER

09160-15039

$2.23

27

BOLT

61431-42A10

$7.08

28

SPACER, AXLE RH

64741-42A00

$13.05

29

ADJUSTER, CHAIN LH

61421-42A00

$13.05

30

SPACER, AXLE LH

64750-42A00

$12.80

31

WASHER (14.5X30X3.2) This part replaces 09160-14033.

09160-14062

$2.81

32

NUT, HUB This part replaces 08314-41148.

08314-4014B

$4.24

33

PIN This part replaces 04111-30308.

04111-3030A

$1.49

34

PLUG | FOR 65311-42A11

09250-08013

$2.68
