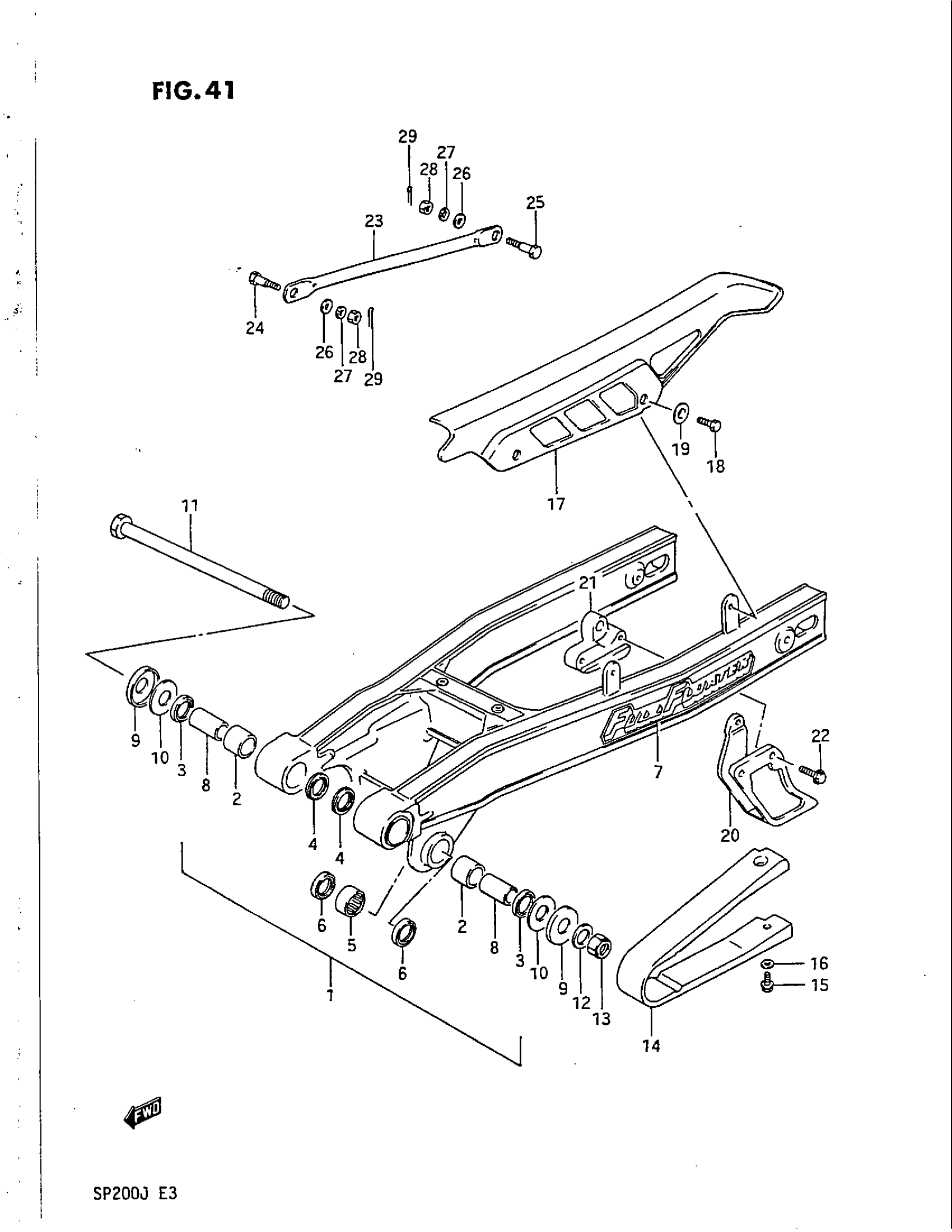

Suzuki SP200 (1988) REAR SWINGING ARM Diagram

SWINGINGARM ASS | Includes Item(s) 2 - 7 This part replaces 61100-42832.

61100-42841

$691.53

.BUSHING, RR SWGARM PIVOT

61261-13700

$16.28

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

OIL SEAL

09286-20001

$4.32

BEARING This part replaces 09263-20031.

09263-20053

$27.58

DUST SEAL

62647-44A00

$6.26

EMBLEM

68381-44A00-69L

Unavailable

SPACER, RR SWGARM PVT

61251-42A00

$23.07

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.93

THRUST WASHER

08211-14322

$3.72

SHAFT, RR SWINGINGARM PIVOT This part replaces 61211-44A00.

61211-44A11

$37.12

WASHER | MODEL G This part replaces 08322-11145.

08322-0114A

$1.84

WASHER | MODEL H/J This part replaces 09160-14043.

09160-14027

$2.42

NUT This part replaces 08319-21145.

08319-2114A

$3.96

BUFFER, CHAIN TOUCH DEFENSE This part replaces 61273-42A00.

61273-42A01

$37.53

BOLT This part replaces 01517-05168.

01550-05167

$2.43

WASHER

09169-05012

$2.38

CASE, CHAIN This part replaces 61311-01A02.

61311-01A03

$63.38

BOLT This part replaces 01107-06104.

01500-0610B

$1.81

WASHER

09169-06026

$2.20

GUIDE, CHAIN This part replaces 61341-13A00.

61341-13A10

$38.45

RUBBER,CHAIN GU This part replaces 61345-42A00.

61345-42A01

$12.52

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

TORQUE LINK, REAR (SILVER)

64311-42A00-13L

$23.07

NO DESCRIPTION AVAILABLE This part replaces 64321-42A00.

09119-08088

Unavailable

BOLT, REAR

09111-08013

$3.04

WASHER This part replaces 08322-11088.

08322-01087

$2.13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

NUT

09140-08008

$1.49

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
