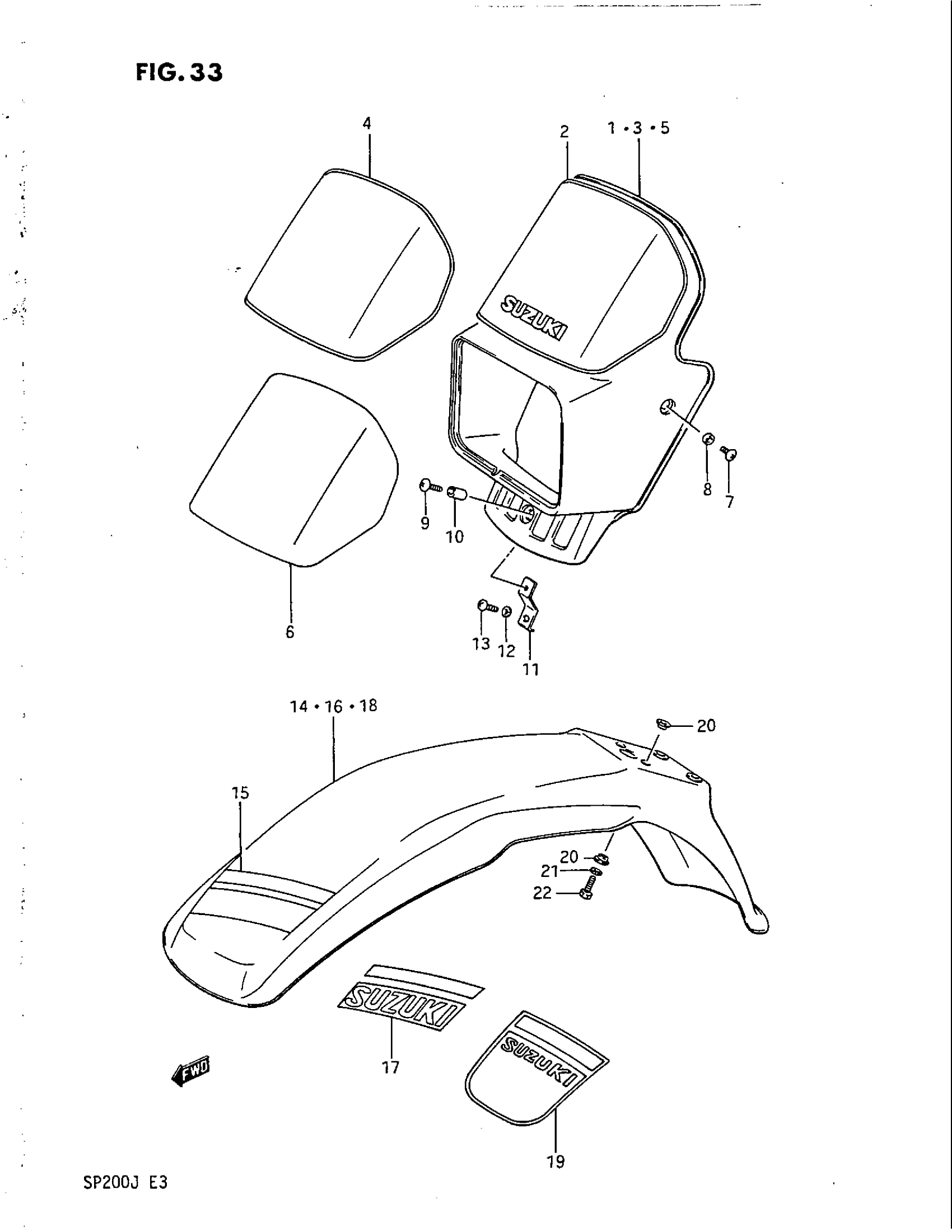

Suzuki SP200 (1988) HEADLAMP HOUSING - FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G; Includes Item(s) 2 This part replaces 51810-44A00-14C.

51811-14A00-13L

Unavailable

2

TAPE SET | MODEL G

68250-14A10-73K

Unavailable

3

COVER, HEADLAMP (RED) | MODEL H; Includes Item(s) 4

51810-44A40-14C

Unavailable

4

TAPE SET | MODEL H

68250-42A10-71Z

Unavailable

5

COVER, HEADLAMP (RED) | MODEL J; Includes Item(s) 6

51810-42A20-14C

Unavailable

6

TAPE SET (WHITE) | MODEL J

68250-42A20-064

Unavailable

7

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

8

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.11

9

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

10

SPACER (6.1X8X12) This part replaces 09180-06035.

09180-06249

$2.10

11

BRACE, HOUSING LOWER

51814-44A00

$5.50

12

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

13

SCREW This part replaces 02112-06128.

02112-06127

$1.84

14

NO DESCRIPTION AVAILABLE | MODEL G; Includes Item(s) 15 This part replaces 53110-44A00-07X.

53111-44A00-13L

Unavailable

15

TAPE SET | MODEL G

68150-44A00-7CL

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL H; Includes Item(s) 17 This part replaces 53110-44A50-14C.

53111-44A00-13L

Unavailable

17

TAPE SET | MODEL H

68150-42A00-9DH

Unavailable

18

FENDER, FRONT (RED) | MODEL J; Includes Item(s) 19

53110-44A80-14C

Unavailable

19

TAPE SET | MODEL J

68150-14A00-9UG

Unavailable

20

WASHER (6.3X16X1)

09169-06053

$1.49

21

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

22

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97
