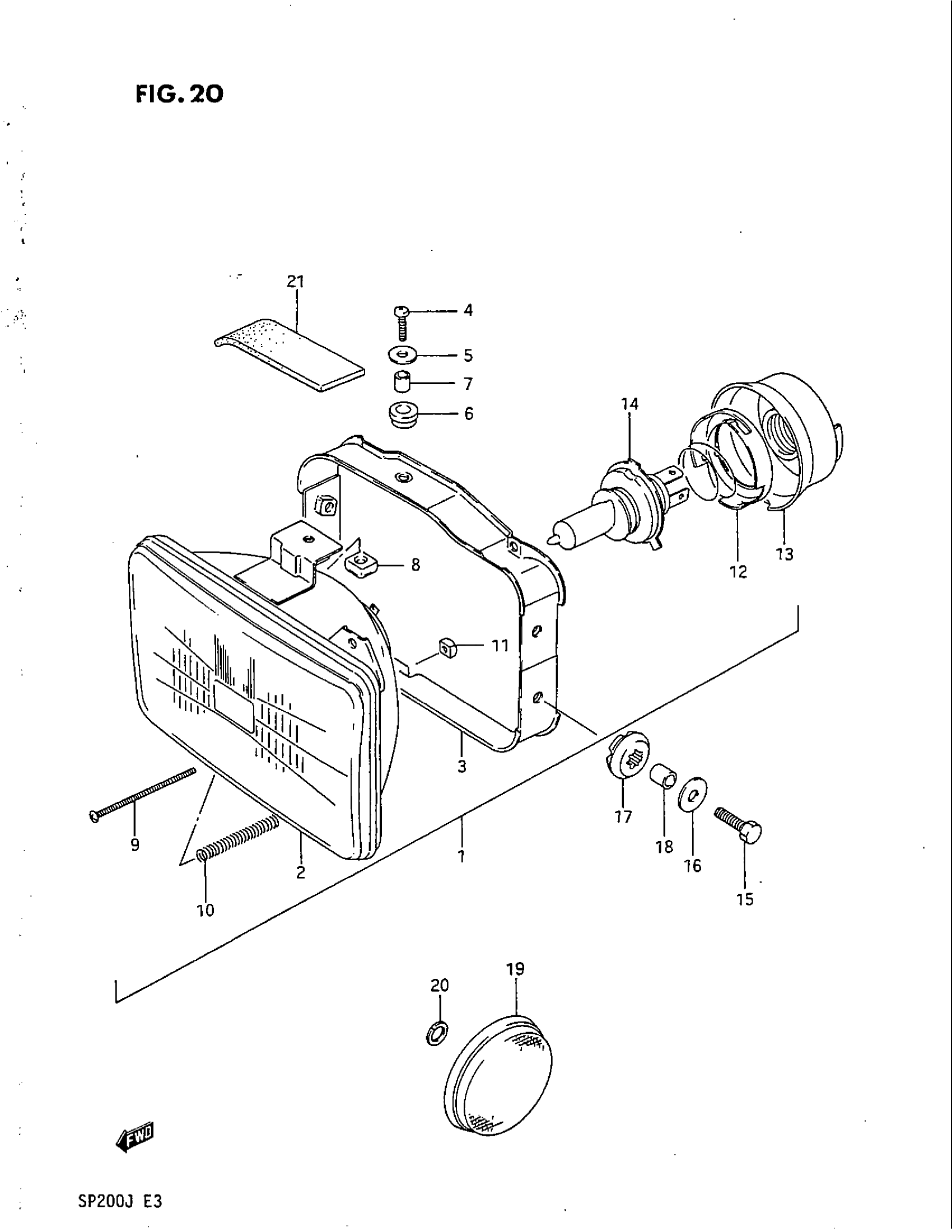

Suzuki SP200 (1988) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 14

35100-13A30

Unavailable

2

UNIT

35121-13A30

Unavailable

3

HOUSING

35141-14A00

$37.53

4

SCREW This part replaces 02112-05208.

02112-05207

$1.97

5

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$1.93

6

CUSHION

35139-45230

$1.98

7

SPACER

35133-14A00

Unavailable

8

NUT

35135-45900

$3.25

9

SCREW This part replaces 35151-49200.

35151-45900

$3.65

10

SPRING

35154-49200

$5.50

11

NUT

35135-45600

$3.65

12

HOLDER, BULB

35136-01A00

Unavailable

13

.COVER SOCKET

35173-01440

$17.37

14

BULB (12V,45/45W)

09471-12102

Unavailable

15

BOLT This part replaces 01107-06207.

01500-06207

$2.28

16

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

17

CUSHION

09320-09018

$2.44

18

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

19

REFLEX REFLECTOR, FRONT SIDE

35950-30910

$30.05

20

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

21

PROTECTOR, WIRE HARNESS This part replaces 36920-44A00.

36920-14D00

$7.77
