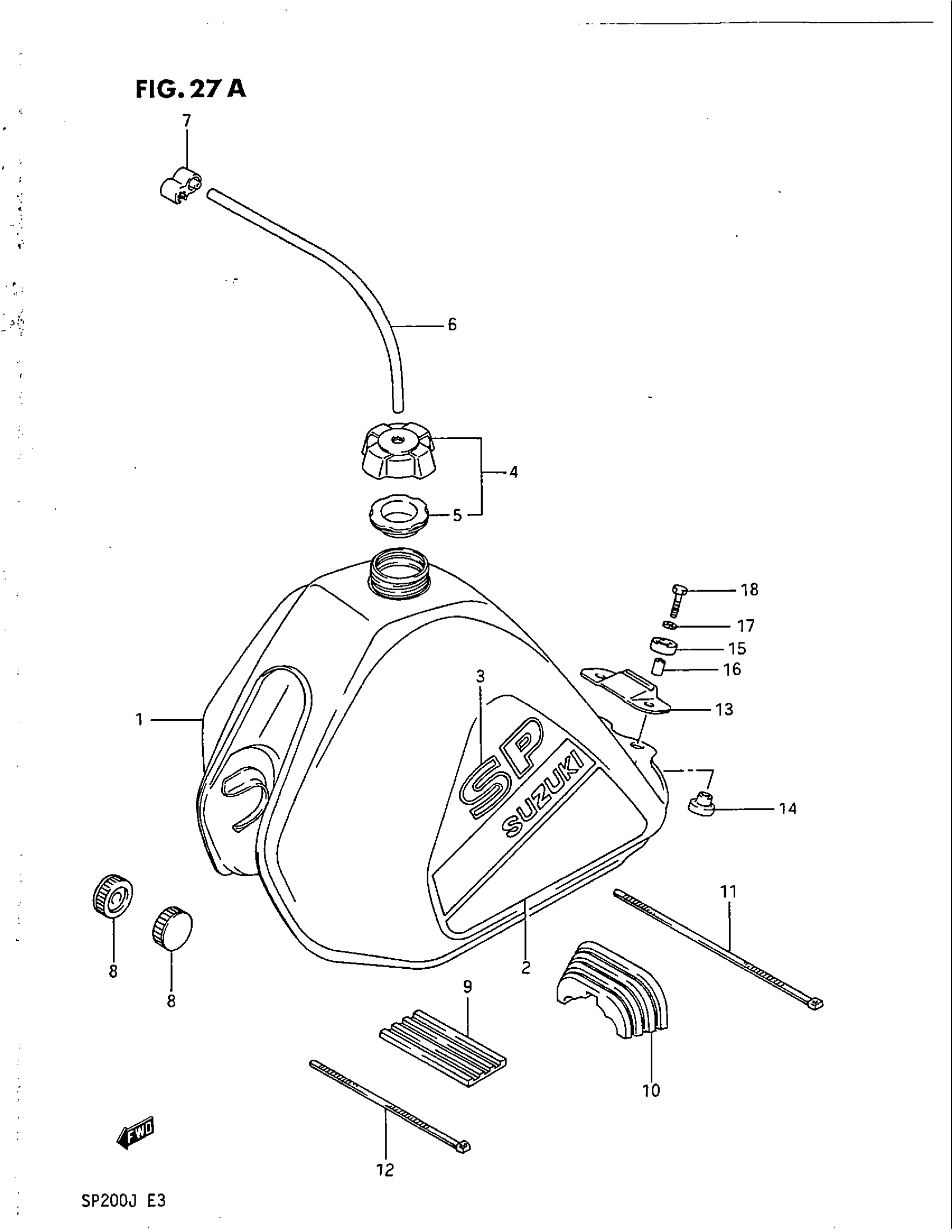

Suzuki SP200 (1988) FUEL TANK (MODEL J) Diagram

#

Description
Price

1

TANK,FUEL | Includes Item(s) 2 - 3 This part replaces 44100-44A80-14C.

44110-44A05-YD8

Unavailable

2

TAPE SET, FUEL TANK | MODEL G

68110-44A50-9UF

Unavailable

3

EMBLEM (WHITE) | MODEL G

68111-44A20-064

Unavailable

4

CAP SET, FUEL TANK | Includes Item(s) 5

44200-01890

Unavailable

5

GASKET This part replaces 44248-05210.

44248-05211

$3.76

6

HOSE,5X10X600 This part replaces 09352-50823-240.

44421-13ER0

$10.06

7

CLAMP

44486-32101

$3.65

8

CUSHION, FRONT

09329-10016

$3.10

9

CUSHION, UPPER FRONT

44541-14500

$8.28

10

CUSHION

44542-14A00

$15.42

11

CLAMP

09407-25402

$4.64

12

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

13

PLATE, SEAT HOOK

45119-42A00

$6.55

14

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

15

CUSHION, REAR NO.2

09320-14013

$2.11

16

SPACER This part replaces 09180-06072.

09180-06271

$2.35

17

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

18

BOLT This part replaces 01107-06306.

01500-0630A

$2.19
