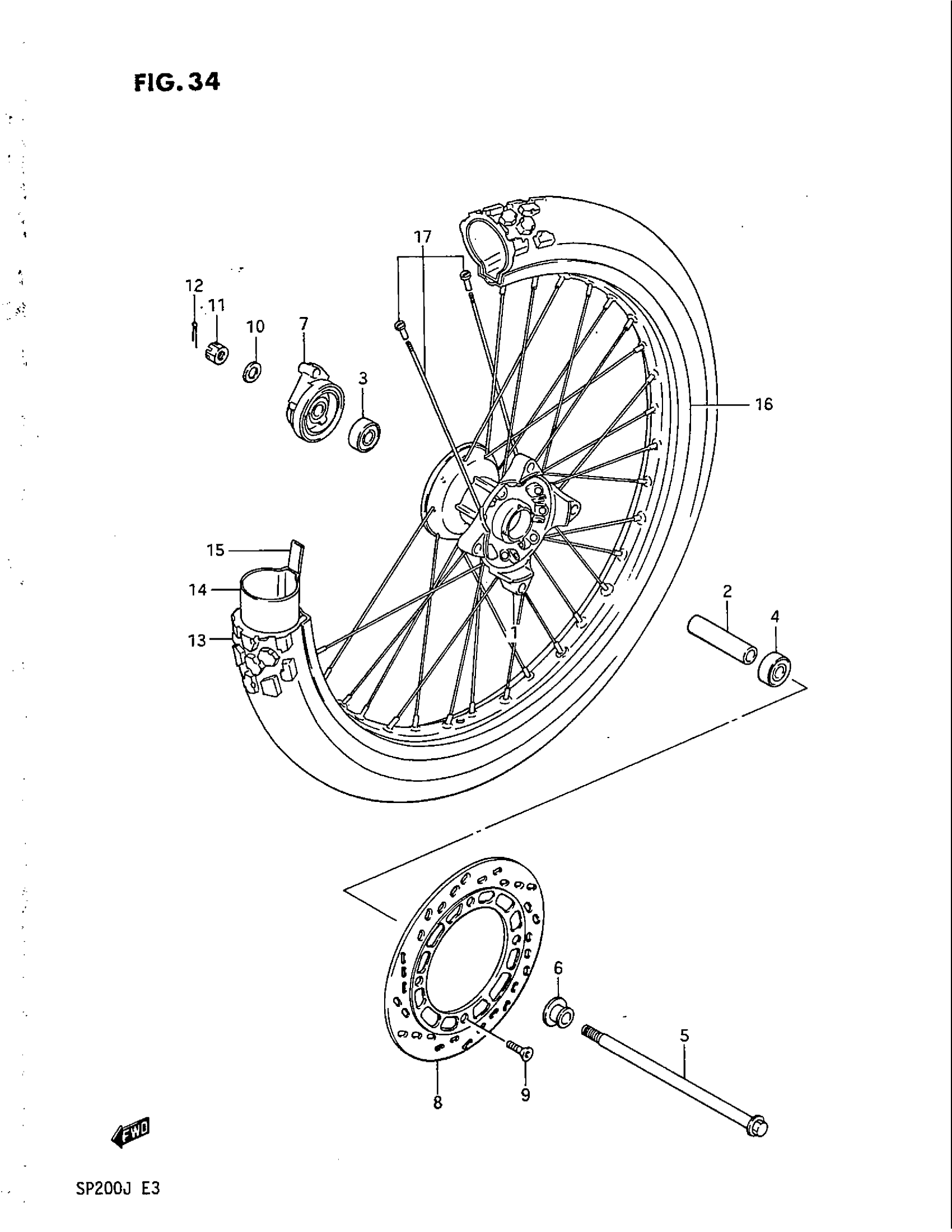

Suzuki SP200 (1988) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL (BLACK) This part replaces 54111-44A00.

54111-44A01

Unavailable

2

SPACER (12.5X19X60.50) This part replaces 09180-12109.

09180-12146

$13.61

3

BEARING This part replaces 08113-62017.

08113-6201B

$10.15

4

BEARING | MODEL G/H This part replaces 08123-62017.

08133-62017

$18.47

4

BEARING, LH | MODEL J

08133-62017

$18.47

5

AXLE, FRONT This part replaces 54711-44A00.

54711-44A01

$37.83

6

SPACER, FR AXLE This part replaces 54740-05211.

54740-02B40

$15.68

7

BOX ASSY,SPEEDO This part replaces 54600-01A00.

54600-01A01

$78.92

8

DISC, FRONT BRAKE This part replaces 59221-13A00.

59221-13A01

$319.20

9

BOLT This part replaces 59421-03A01.

09106-08155

$3.76

10

WASHER This part replaces 08322-11128.

08322-01127

$1.84

11

NUT This part replaces 08314-31128.

08314-3112A

$2.41

12

PIN This part replaces 04111-30308.

04111-3030A

$1.49

13

NO DESCRIPTION AVAILABLE | BS This part replaces 55100-44A00.

55100-01A50

Unavailable

14

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

15

PROTECTOR, INNER TUBE This part replaces 55261-16510.

55261-14540

$3.83

16

RIM, FRONT WHEEL (1.60X21AL)

55311-42A02

Unavailable

17

SPOKE SET, FRONT WHEEL

55320-42A00

$64.68
