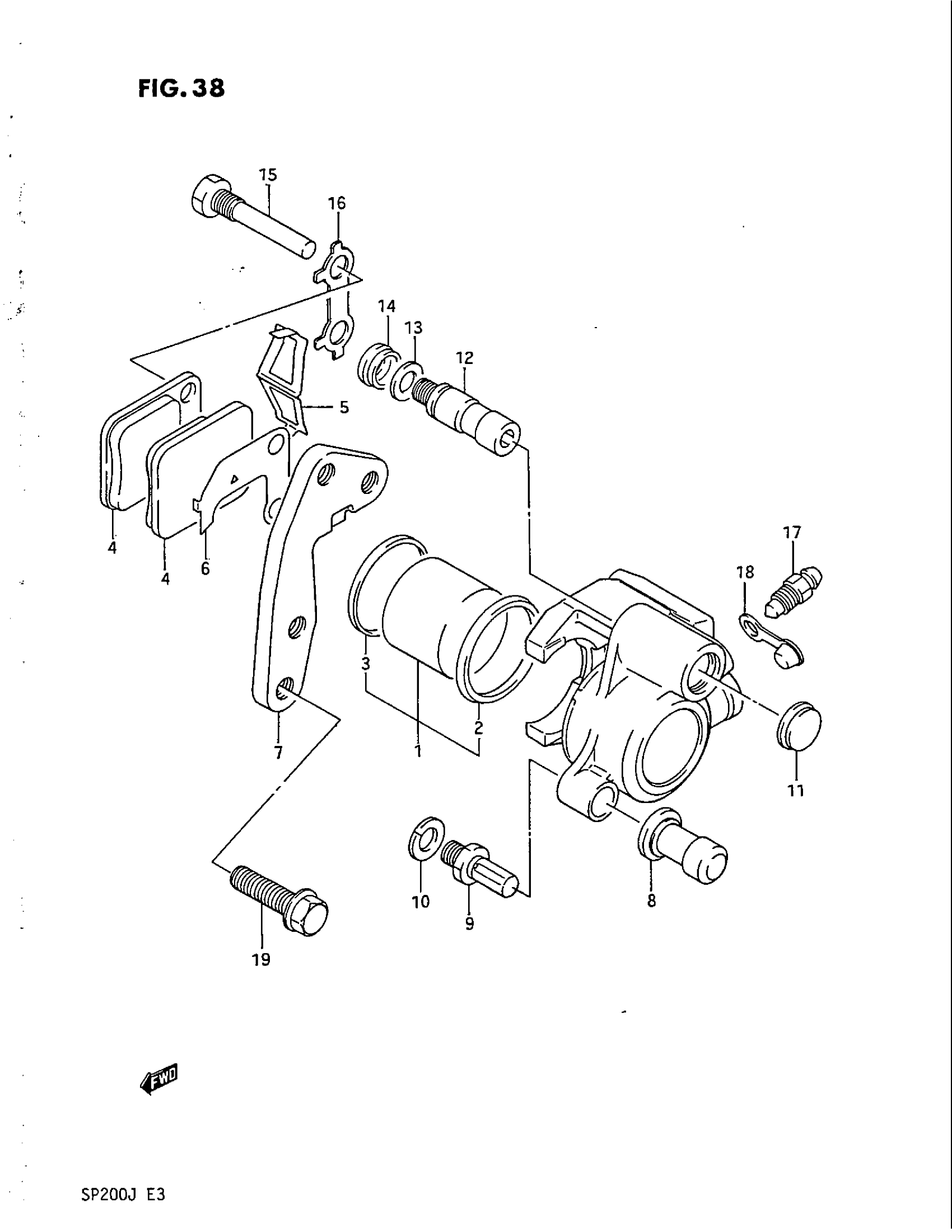

Suzuki SP200 (1988) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY, FRONT LH | MODEL G/H This part replaces 59300-42A01.

59300-42A10-999

$218.75

CALIPER ASSY, FRONT LH | MODEL J; Includes Item(s) 1 - 18 This part replaces 59300-42A10.

59300-42A10-999

$218.75

1

PISTON SET

59300-13810

$37.72

2

..SEAL SET,PISTON This part replaces 59107-13A00.

69100-13820

$8.52

3

BOOT

59108-13A00

Unavailable

4

PAD SET | MODEL G/H This part replaces 59340-42A00.

59100-38870

$48.64

4

PAD SET | MODEL J This part replaces 59340-42A10.

59100-38870

$48.64

5

SPRING

59315-13A00

$11.02

6

SHIM

59371-13A00

$9.37

7

BRACKET

59351-13A01

Unavailable

8

BOOT

59386-13A00

$7.95

9

BOLT

59382-13A00

$7.69

10

WASHER

59314-13A00

$2.02

11

DUST SEAL

59384-13A00

$5.24

12

PIN

59305-13A01

$20.03

13

SPRING

59306-13A00

$3.15

14

BOOT

59303-13A00

$5.80

15

PIN

59345-13A00

$6.98

16

WASHER

59346-13A00

$4.17

17

BLEEDER

59121-01A00

$8.73

18

CAP

59122-01A00

$4.34

19

BOLT This part replaces 01517-08307.

01550-08307

$3.54
