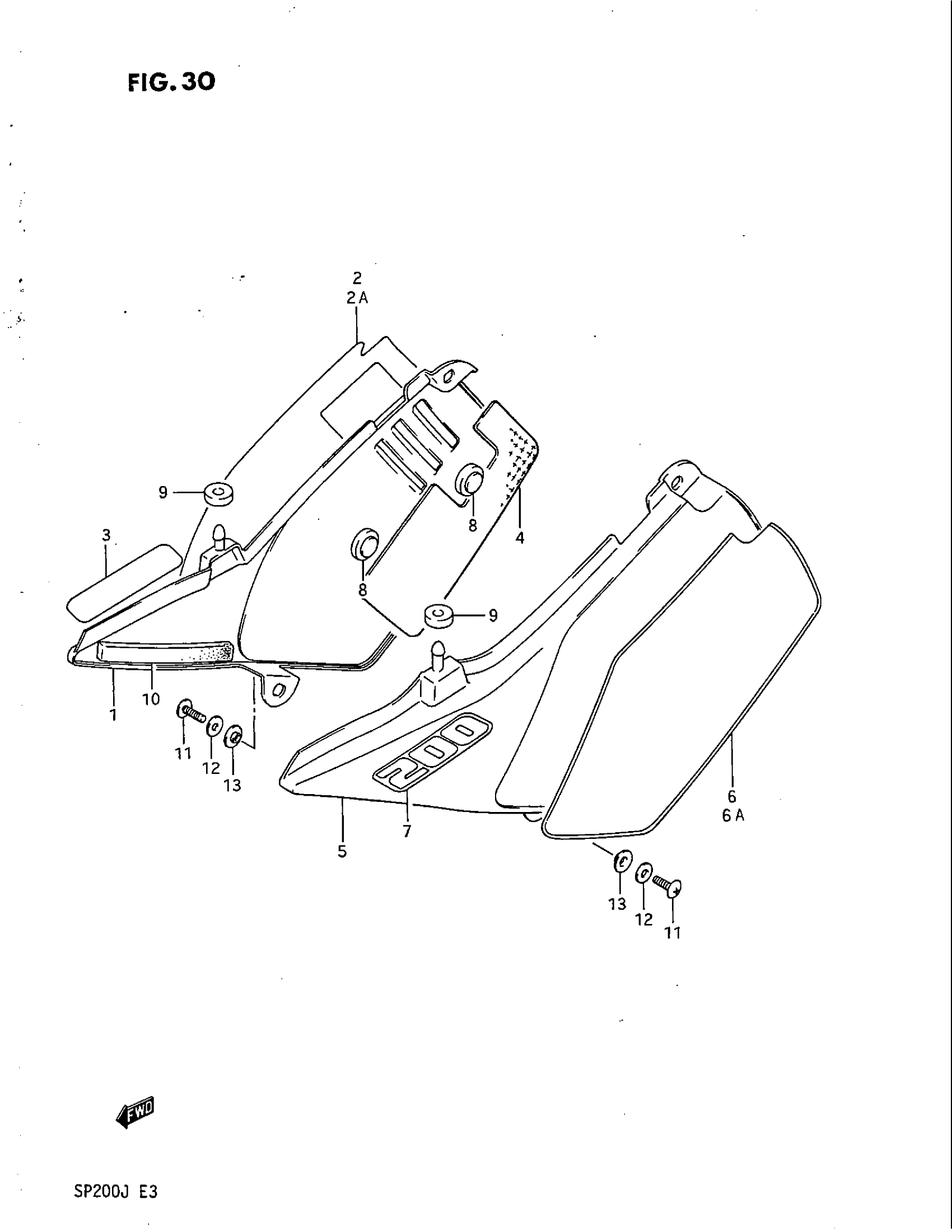

Suzuki SP200 (1988) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (RED) | MODEL G

47110-44A40-14C

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 47110-42A50-14C.

47110-42A00-13L

Unavailable

1

COVER, FRAME RH (RED) | MODEL J; Includes Item(s) 2 - 4

47110-42A80-14C

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL G

68130-44A20-73K

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL H

68130-44A20-71Z

Unavailable

2A

TAPE, FRAME COVER RH (WHITE) | MODEL J

68135-44A10-064

Unavailable

3

EMBLEM | MODEL G

68131-42A00-7AG

Unavailable

4

HEAT SHIELD,FRA This part replaces 47166-42A00.

47166-42A01

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 47210-44A40-14C.

47211-42A00-13L

Unavailable

5

COVER, FRAME LH (RED) | MODEL H

47210-42A50-14C

Unavailable

5

COVER, FRAME LH (RED) | MODEL J; Includes Item(s) 6 - 7

47210-42A80-14C

Unavailable

6

TAPE SET, FRAME COVER LH | MODEL G

68140-44A20-73K

Unavailable

6

TAPE SET, FRAME COVER LH | MODEL H

68140-44A20-71Z

Unavailable

6A

TAPE, FRAME COVER LH (WHITE) | MODEL J

68145-44A10-064

Unavailable

7

EMBLEM | MODEL G

68131-42A00-7AG

Unavailable

8

CUSHION, MUFFLER

09321-10018

$5.45

9

CUSHION, BOSS

47161-14A00

$2.08

10

CUSHION

47161-42A00

Unavailable

11

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

12

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

13

WASHER This part replaces 09169-06028.

09169-06041

$2.20
