1988 Suzuki SP200 Cylinder Head Diagram

← All diagrams

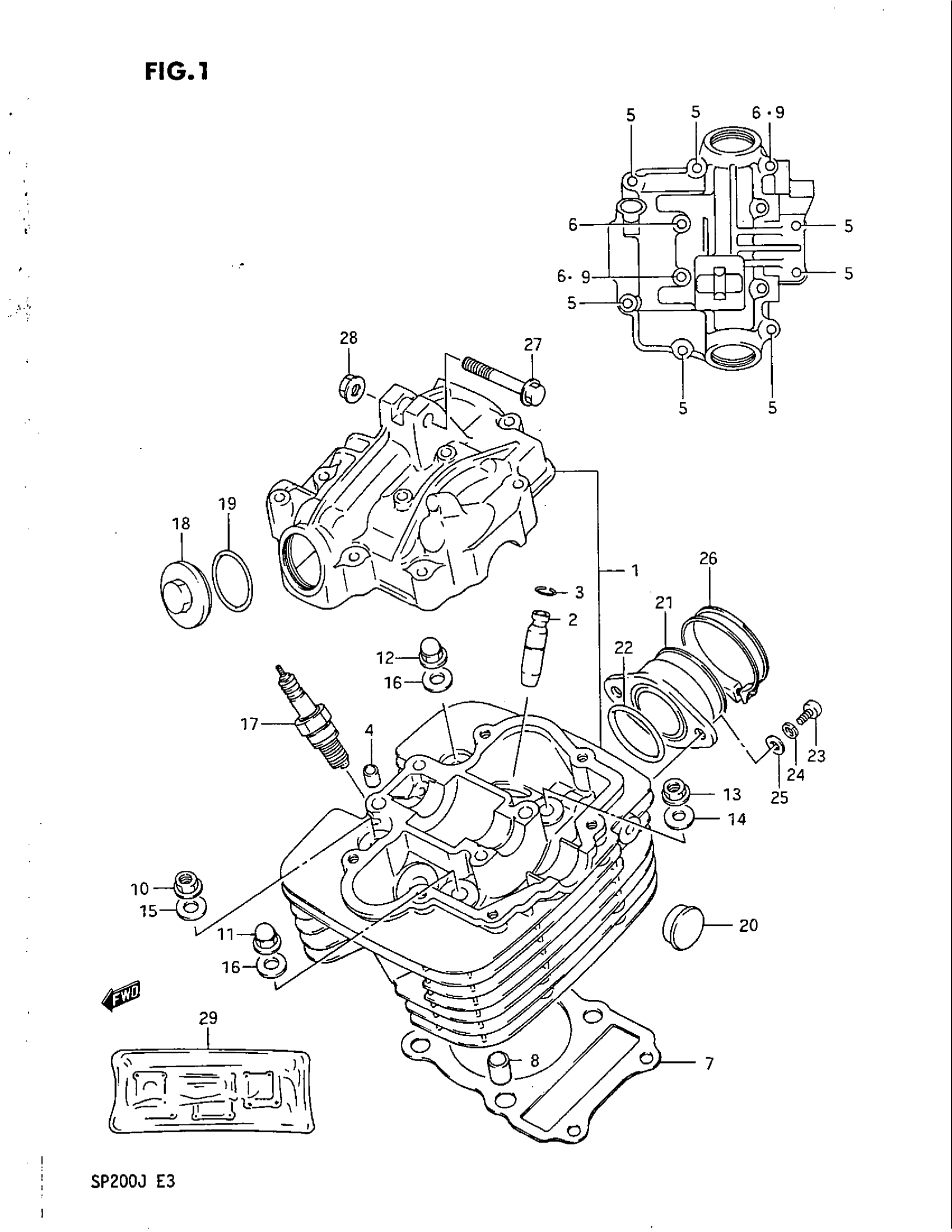

Find the part on the Cylinder Head diagram for your 1988 Suzuki SP200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki SP200 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASSY | Includes Item(s) 2 - 6

11100-42A03

1
Out of stock

2

GUIDE, VALVE (0S:0.3)

11115-05270

2
Out of stock

3

.RING (10X85)

09381-10004

2
Out of stock

4

PIN

09206-08001

2
Out of stock

5

BOLT This part replaces 01517-06354.

01550-0635A

7
Out of stock

6

BOLT This part replaces 01517-06605.

01550-0660A

3
Out of stock

7

GASKET, CYLINDER HEAD

11141-18A00

1
Out of stock

8

PIN

04211-11169

2
Out of stock

9

WASHER

09168-06023

2
Out of stock

10

NUT This part replaces 08316-16085.

08316-1008B

1
Out of stock

11

NUT This part replaces 09159-08064.

09159-08049

1
Out of stock

12

NUT This part replaces 09159-08047.

09159-08049

1
Out of stock

13

NUT (CHROME) This part replaces 08316-16088.

08316-10087

1
Out of stock

14

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

1
Out of stock

15

WASHER

09160-08039

1
Out of stock

16

GASKET This part replaces 09168-08012.

09168-08013

2
Out of stock

17

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

1
Out of stock

17

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

1
Out of stock

18

CAP, INSPECTION

11175-05260

2
Out of stock

19

.O RING (D:3,ID:29.5)

09280-30001

2
Out of stock

20

PLUG, HEAD

09241-22002

1
Out of stock

22

O RING | E.NO.104779~ This part replaces 13118-42A01.

09280-35001

1
Out of stock

23

SCREW This part replaces 02112-06164.

02112-0616A

2
Out of stock

24

2

$1.97

In stock

25

.WASHER This part replaces 08322-21064.

08322-0106B

2
Out of stock

26

CLAMP

09402-48208

1
Out of stock

27

BOLT,8X50 This part replaces 09103-08082.

09103-08395

1
Out of stock

28

NUT This part replaces 08319-31085.

08319-3108A

1
Out of stock

29

NO DESCRIPTION AVAILABLE | OPT:MODEL G This part replaces 11400-42810.

11400-42818

1
Out of stock

29

NO DESCRIPTION AVAILABLE | OPT:MODEL H/J This part replaces 11400-42811.

11400-42818

1
Out of stock
