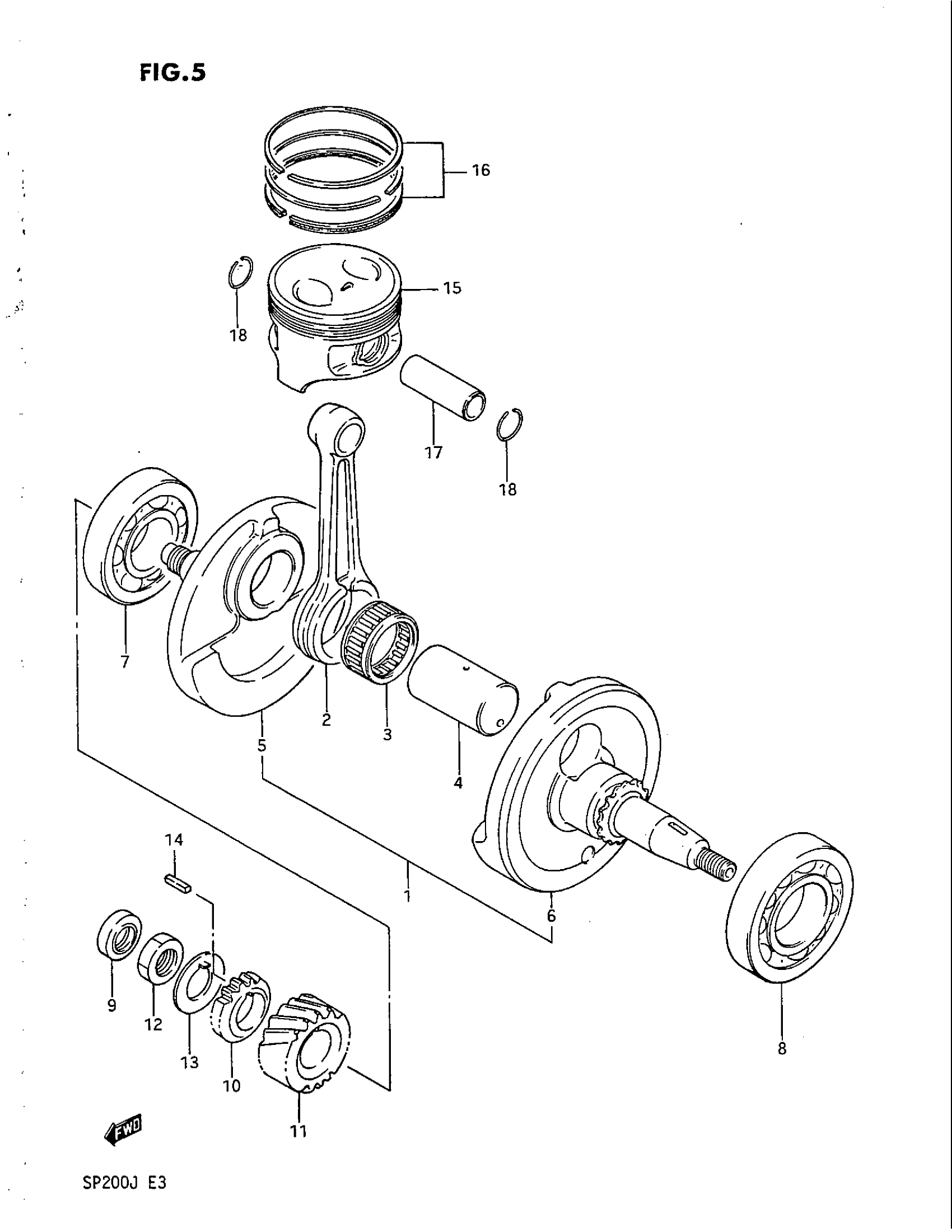

Suzuki SP200 (1988) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 6

12200-42A02

Unavailable

2

ROD, CONNECTING

12161-42A01

$116.47

3

BEARING

09263-31008-0B0

$49.53

4

PIN, CRANK This part replaces 12210-42A00.

12210-42A01

$40.02

5

CRANKSHAFT, RH

12221-42A02

Unavailable

6

CRANKSHAFT, LH

12261-42A02

Unavailable

7

BEARING, RH

09262-28014

$57.95

8

BEARING (35X72X17) This part replaces 09262-35035.

09262-35038

$46.10

9

OIL SEAL (12X21X7) This part replaces 09282-12001.

09282-12009

$13.11

10

GEAR, OIL PUMP DRIVE

16321-42A00

Unavailable

11

GEAR, PRIMARY DRIVE (NT:19) This part replaces 21111-42A00.

21111-42A01

Unavailable

12

NUT

09140-18004

$3.23

13

LOCK WASHER

09166-18003

$2.38

14

KEY

09421-04007

$7.37

15

PISTON This part replaces 12111-42A02.

12111-42A20-0F0

$92.68

15

PISTON SET,OS0. | OPT This part replaces 12111-42A02-050.

12100-42A40-050

$113.45

15

PISTON SET (OS:1.0) | OPT This part replaces 12111-42A02-100.

12100-42A00-100

Unavailable

16

RING SET, PISTON This part replaces 12140-22A10.

12140-19B10

$41.60

16

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-22A10-050.

12140-19B10-050

$50.83

16

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-22A10-100.

12140-19B10-100

$50.83

17

PIN, PISTON

12151-22A02

$12.15

18

SNAP RING This part replaces 09381-16002.

09381-16001

$1.67
