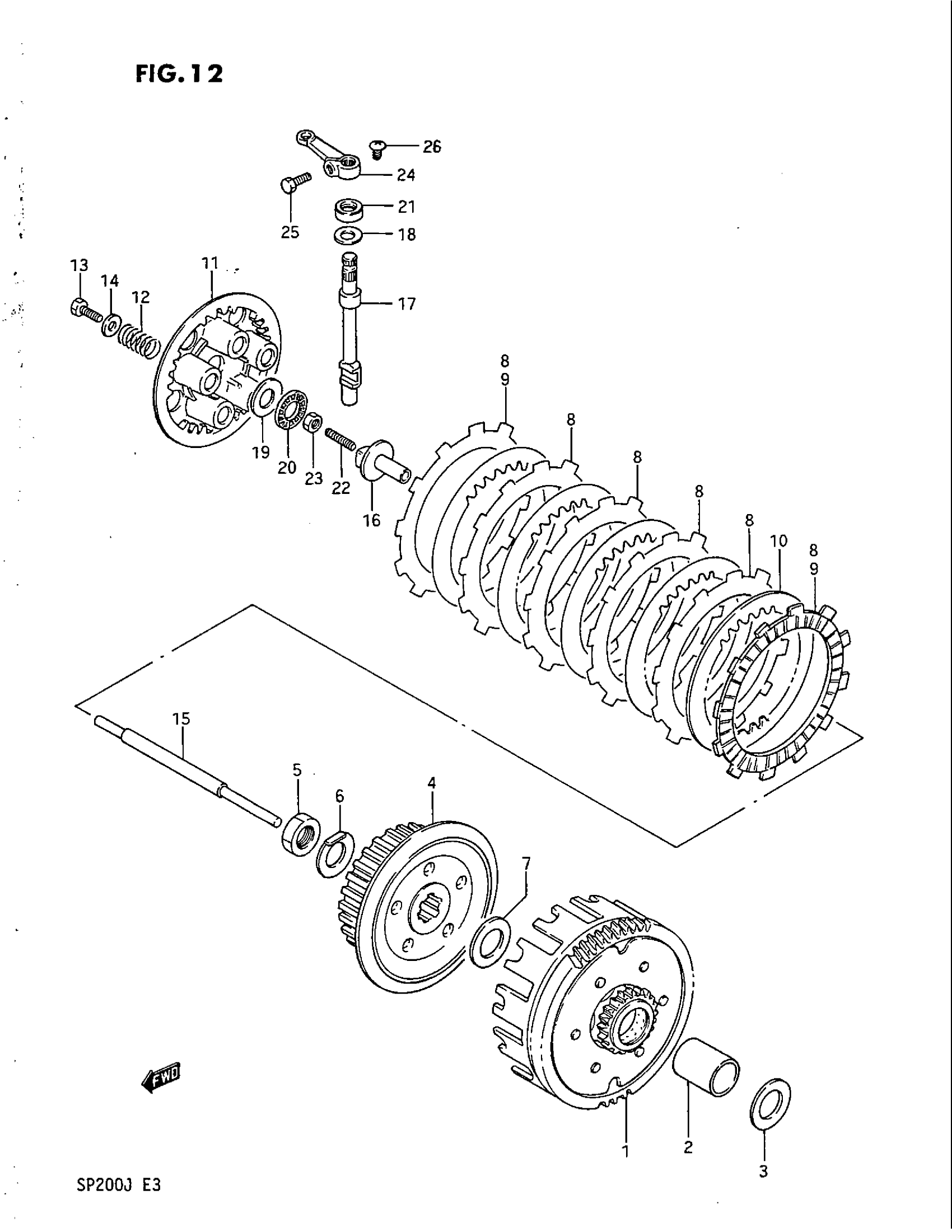

Suzuki SP200 (1988) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | MODEL G/H,NT:60 This part replaces 21200-42A01.

21200-42A02

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | MODEL J,NT:60

21200-42A02

Unavailable

2

SPACER, PRIMARY DRIVEN This part replaces 09180-20010.

21251-13E00

$23.38

3

WASHER

08211-20353

Unavailable

4

HUB, CLUTCH SLEEVE | MODEL G/H This part replaces 21411-42A00.

21411-42A04

$66.47

4

HUB, CLUTCH SLEEVE | MODEL J This part replaces 21411-42A01.

21411-42A04

$66.47

5

NUT This part replaces 09140-16014.

09140-16005

$3.75

6

LOCK WASHER

09169-16003

$2.45

7

WASHER

08211-20352

Unavailable

8

PLATE, CLUTCH DRIVE (T:3.0) | ~E.NO.102745E.NO.102746~ This part replaces 21441-19A00.

21441-25C01

$20.77

9

PLATE, CLUTCH DRIVE | E.NO.102746~ This part replaces 21441-13A00.

21441-13A01

$14.73

10

PLATE, CLUTCH DRIVEN (T:1.6)

21451-19A00

$7.58

11

DISC, CL PRESSURE This part replaces 21462-14102.

21462-14130

$24.87

12

SPRING

09440-15021

$3.89

13

BOLT

09100-05002

$1.49

14

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

15

ROD, CLUTCH PUSH This part replaces 23110-05202.

23110-05203

$18.02

16

PIECE, CLUTCH PUSH This part replaces 23121-42A00.

23121-38201

$26.73

17

CAMSHAFT, CLUTCH RELEASE

23122-05200

$50.10

18

WASHER, CLUTCH RELEASE This part replaces 08211-10201.

09181-10195

$1.99

19

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

20

THRUST BEARING (15X28X2)

09263-15003

$8.29

21

SEAL, CLUTCH RELEASE ARM This part replaces 09282-10007.

09282-10012

$7.98

22

SCREW

09134-06010

$3.12

23

.NUT This part replaces 08310-22067.

08310-00067

$2.13

24

ARM, CLUTCH RELEASE This part replaces 23271-46000.

23271-46010

$28.97

25

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

26

SCREW

02142-06108

$2.45
