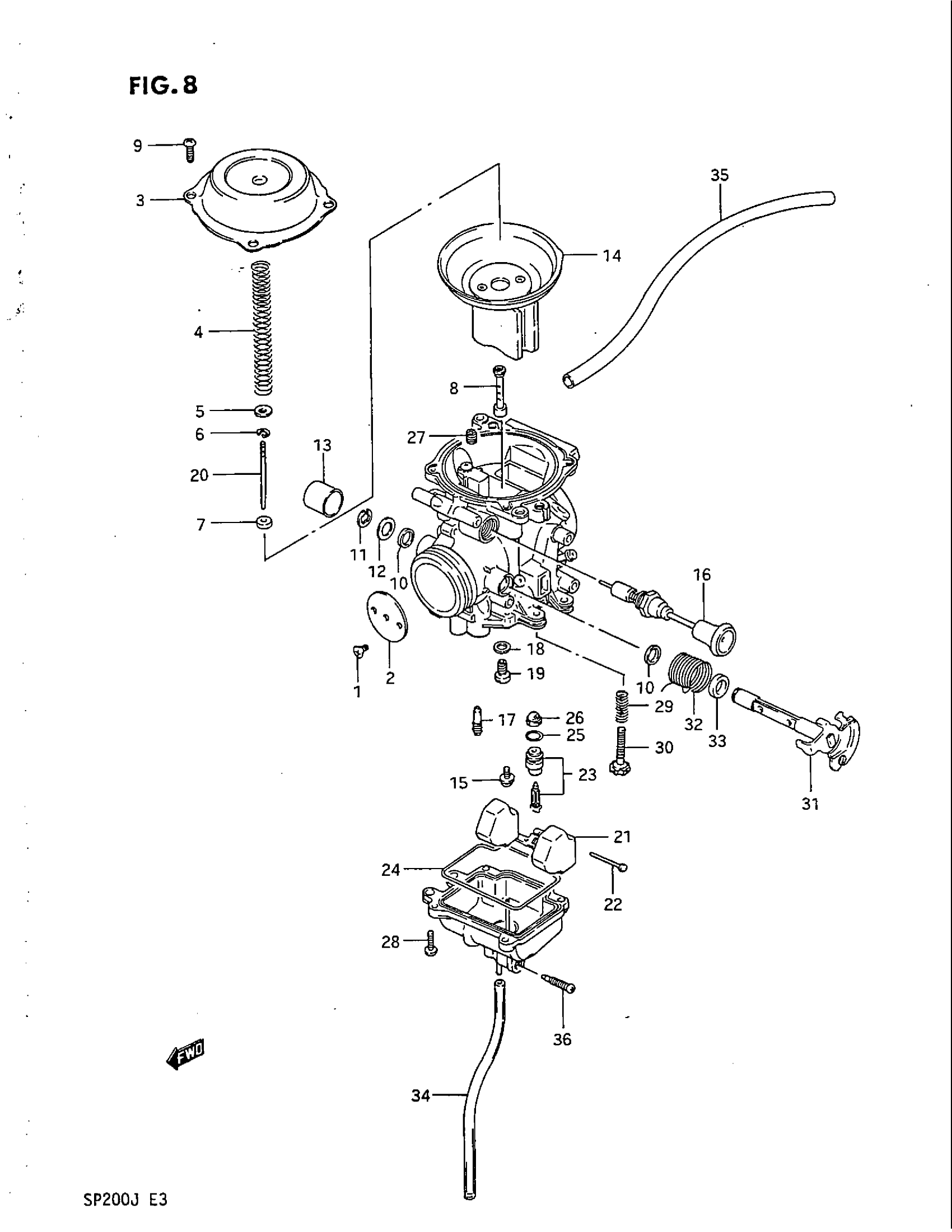

Suzuki SP200 (1988) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 36

13200-42A10

Unavailable

1

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.92

2

VALVE, THROTTLE

13551-42A10

Unavailable

3

COVER

13502-42A00

$38.47

4

SPRING

13417-42A00

$6.79

5

RING

13382-42A00

$4.48

6

CLIP, NEEDLE This part replaces 13415-47070.

13394-10010

$5.45

7

RING

13387-47010

$7.22

8

JET, NEEDLE (P-4)

09494-00512

Unavailable

9

SCREW This part replaces 02112-04085.

02112-0408A

$1.49

10

SEAL This part replaces 13556-44010.

13556-05A11

$3.59

11

E RING

13617-44080

$2.90

12

WASHER

13557-47070

$3.59

13

CAP

13578-47070

$4.52

14

DIAPHRAGM ASSY This part replaces 13500-42A00.

13500-42A01

$170.83

15

SCREW

13602-43410

$2.92

16

PLUNGER ASSY This part replaces 13411-42A00.

13411-42A20

$38.78

17

JET, PILOT (40)

09492-40014

$9.38

18

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

19

JET, MAIN (122.5)

09491-24013

$11.38

20

NEEDLE, JET | 5D25

13383-42A10

Unavailable

21

FLOAT

13250-42A00

$34.08

22

PIN

13254-92311

$2.07

23

VALVE ASSY, NEEDLE (2.0) This part replaces 13370-42A10.

13370-44500

$50.98

24

O RING, FLOAT CHAMBER

13251-42A00

$9.03

25

O RING This part replaces 66263-99050.

13374-35C00

$5.99

26

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

27

JET, PILOT AIR (150)

09493-30003

Unavailable

28

SCREW This part replaces 13602-05A40.

02112-0412A

$1.49

29

SPRING This part replaces 13271-44220.

13268-37420

$5.32

30

ADJUSTER This part replaces 13267-37100.

13267-25D00

$14.20

31

SHAFT ASSY, THROTTLE

13550-42A00

Unavailable

32

SPRING

13573-42A00

Unavailable

33

RING

13574-45120

Unavailable

34

HOSE This part replaces 13684-44A00.

09351-30001-600

$3.57

35

HOSE,5X10X600 | L:550->250 This part replaces 13684-22A00.

44421-13ER0

$10.06

36

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99
