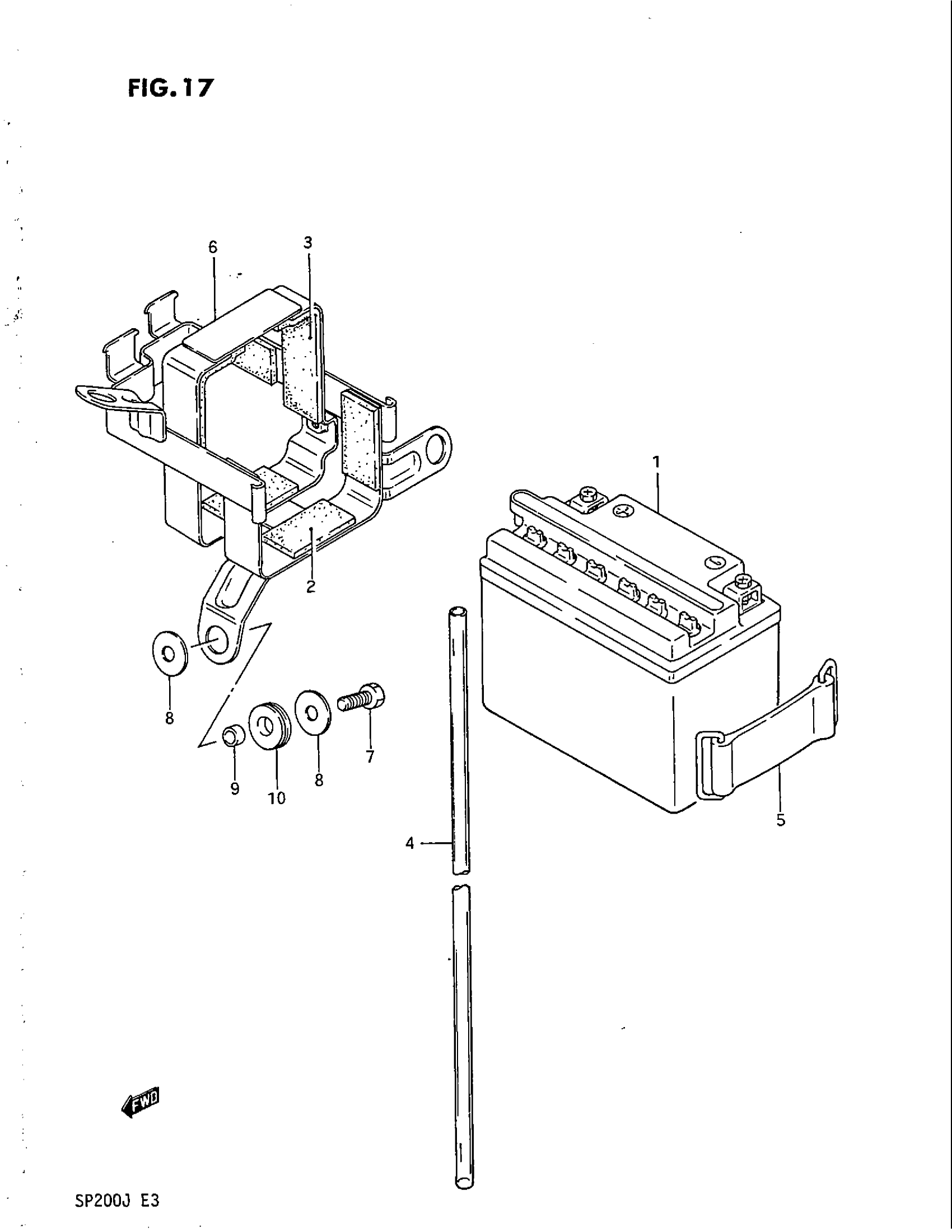

Suzuki SP200 (1988) BATTERY Diagram

#

Description

Price

1

BATTERY (12V,4AH)

33610-42A30

Unavailable

2

CUSHION, REAR FENDER REAR | 130X20X3->40X20X3 This part replaces 33652-01A00.

33651-37000

$4.48

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

4

HOSE,BATTERY EX | L:600->500 This part replaces 33680-31003.

33680-16A11

$6.78

5

BAND, TOOL This part replaces 09462-00073.

09462-00093

$9.24

6

HOLDER, BATTERY

41540-44A00

Unavailable

7

BOLT This part replaces 01107-06207.

01500-06207

$2.28

8

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

9

SPACER (6.5X9X5) This part replaces 09180-06109.

09180-06306

$2.03

10

CUSHION This part replaces 09320-08030.

09320-08511

$2.02
