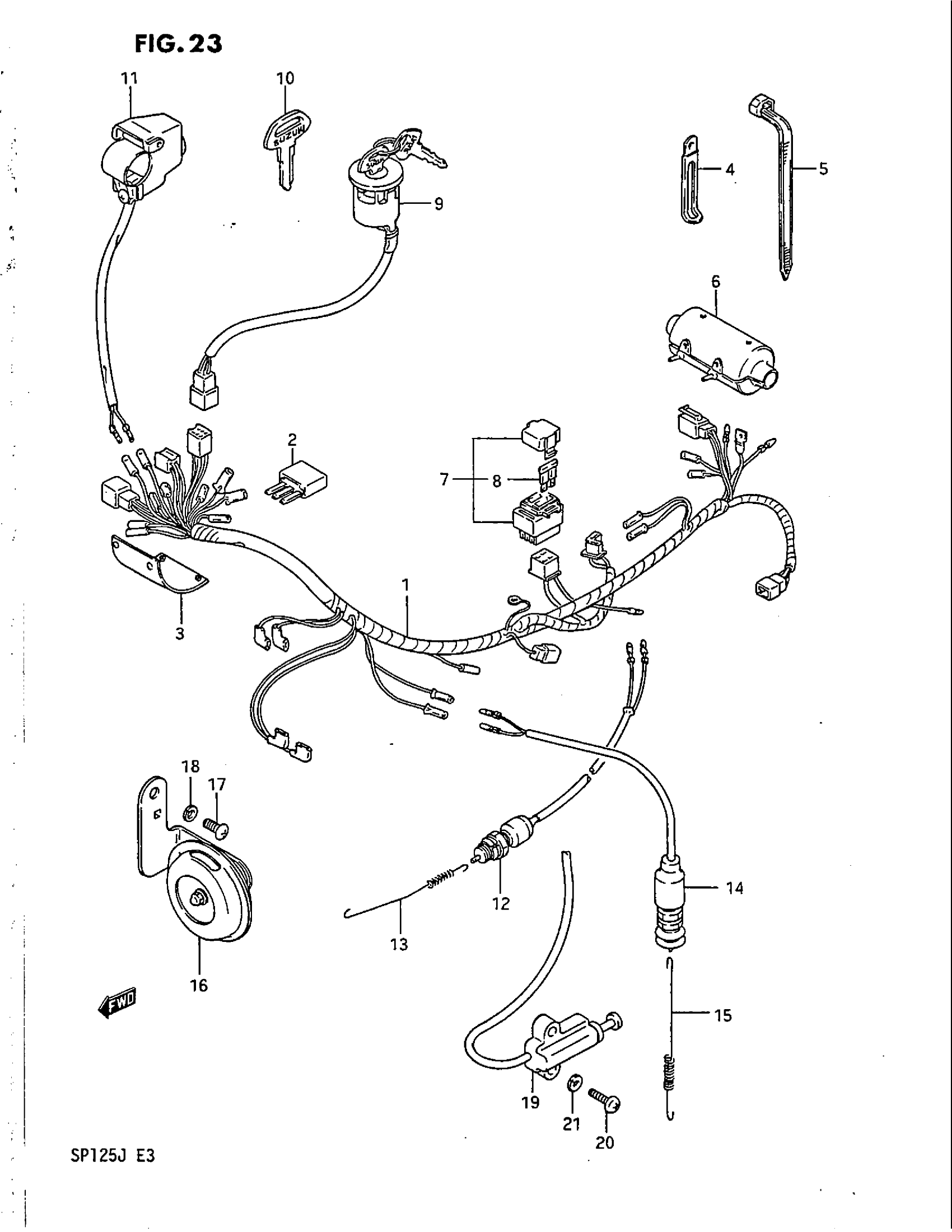

Find the part on the Wiring Harness diagram for your 1988 Suzuki SP125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki SP125 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | MODEL G

36610-44A10

1
Out of stock

1

HARNESS, WIRING | MODEL H/J; Includes Item(s) 2

36610-44A60

1
Out of stock

2

.DIODE | MODEL H/J This part replaces 36611-38A00.

36611-38A10

1
Out of stock

4

CLAMP | MODEL G This part replaces 09404-06401.

09404-06039

1
Out of stock

4

CLAMP(L:80) | MODEL H This part replaces 09404-06404.

09404-06036

2
Out of stock

4

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

2
Out of stock

5

CLAMP (L:95) | MODEL G/H

09407-11401

1
Out of stock

5

CLAMP (L:125) | MODEL GMODEL HMODEL J

09407-14403

5
Out of stock

5

CLAMP (L:165)

09407-18402

4
Out of stock

5

CLAMP (L:235)

09407-25401

1
Out of stock

6

BOOT, WIRING HARNESS

36618-30610

1
Out of stock

7

1

$25.08

In stock

8

FUSE (15A)

09481-15101

1

$2.77

In stock

9

SWITCH ASSY,IGN | MODEL G This part replaces 37110-13A01.

37110-13A30

1
Out of stock

9

SWITCH ASSY,IGN | MODEL H/J This part replaces 37110-01A01.

37110-13A20

1
Out of stock

10

KEY, BLANK | OPT This part replaces 37145-02400.

37146-49300

1
Out of stock

11

SWITCH ASSY, ENGINE STOP

37830-13A00

1
Out of stock

12

SWITCH ASSY, STOP LAMP

37740-04A10

1
Out of stock

13

SPRING

09443-06064

1
Out of stock

14

SW ASSY SIDE ST | MODEL G This part replaces 37840-49202.

37840-38301

1
Out of stock

15

SPRING | MODEL G

09443-06060

1
Out of stock

16

HORN ASSY

38500-44A00

1
Out of stock

17

SCREW This part replaces 02112-06125.

02112-0612A

1
Out of stock

18

1

$1.97

In stock

19

SWITCH ASSY,SID | MODEL H This part replaces 37840-44A00.

37840-44X52

1
Out of stock

19

SWITCH ASSY,SID | MODEL J This part replaces 37840-44A10.

37840-44X52

1
Out of stock

20

2

$1.55

In stock

21

.WASHER | MODEL H/J This part replaces 08322-21064.

08322-0106B

2
Out of stock
