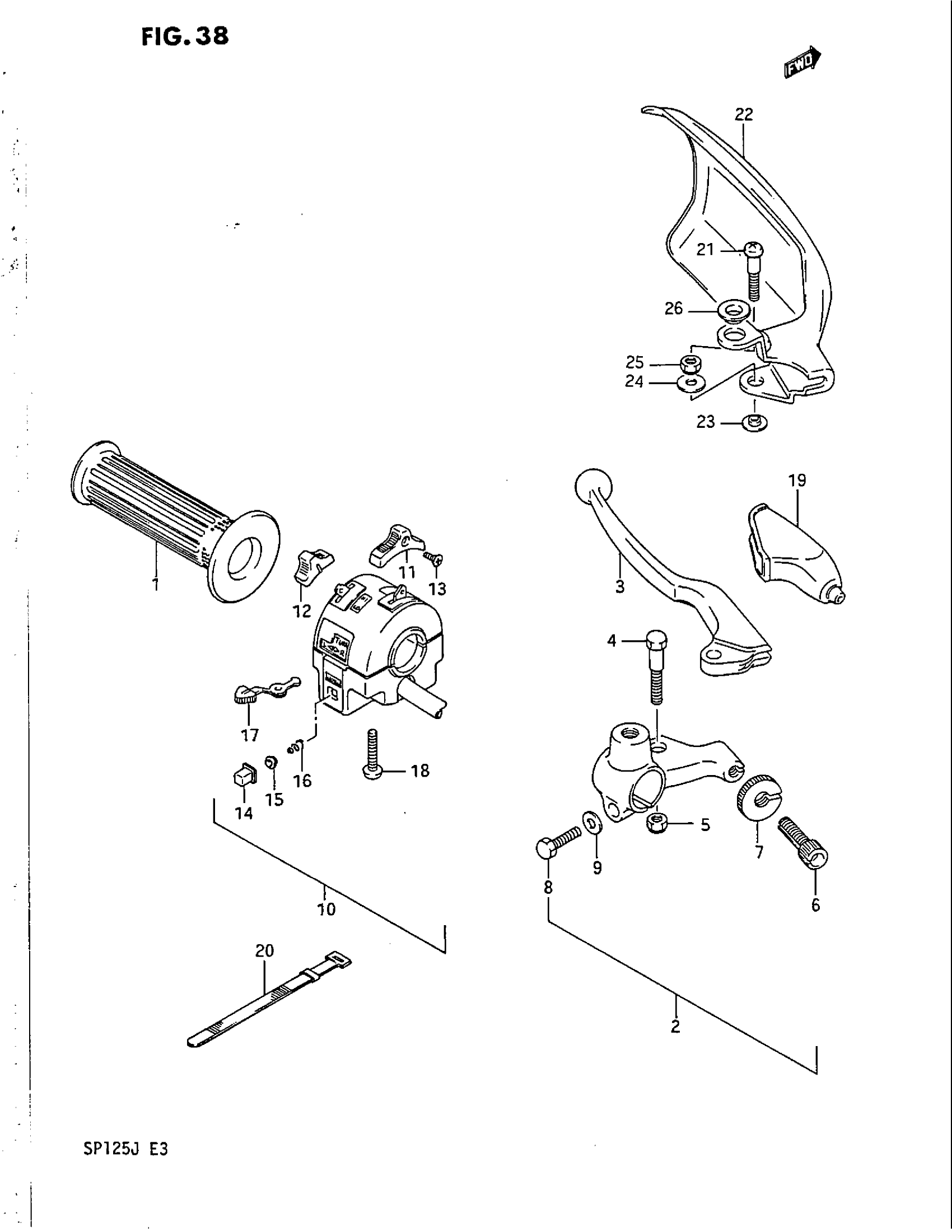

Suzuki SP125 (1988) LIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP,L This part replaces 57211-45020.

57211-45021

$11.48

2

LEVER ASSY, CLUTCH | MODEL G This part replaces 57500-49121.

57500-37200

Unavailable

2

LEVER ASSY, CLUTCH | MODEL H/J; Includes Item(s) 3 - 9

57500-42A00

Unavailable

3

LEVER, CLUTCH (BLACK) | MODEL G

57620-49101

Unavailable

3

LEVER, CLUTCH (WHITE) | MODEL H/J

57620-26500

$28.23

4

SCREW

57431-49110

$5.95

5

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

6

ADJUSTER, CABLE

57441-44400

$5.91

7

NUT This part replaces 57442-44400.

57442-11010

$2.80

8

BOLT

01204-06204

$2.97

9

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24

10

SWITCH ASSY, HANDLE LH | Includes Item(s) 11 - 18

37400-14A30

Unavailable

11

KNOB, LIGHTING

37414-45602

Unavailable

12

KNOB, DIMMER

37421-45012

$6.95

13

SCREW This part replaces 02122-03068.

02122-03067

$1.81

14

BUTTON, HORN

57371-45000

$5.10

15

CONTACT

57372-45000

$5.02

16

SPRING

57382-45000

$3.80

17

KNOB, TURN SIGNAL

37513-45011

$8.15

18

SCREW

02112-05257

$1.49

19

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.02

20

BAND (L:120)

09407-12402

$2.80

21

SCREW | OPT

57431-14A00

$8.97

22

GUARD, KNUCKLE LH (RED) | OPT

57541-14A00-14C

Unavailable

23

WASHER | OPT

09169-06033

$1.57

24

WASHER | OPT

09160-06019

$1.38

25

.NUT | OPT This part replaces 08319-21068.

08319-2106A

$1.89

26

WASHER,KNUCKLE COVER UPPER,L | OPT This part replaces 09169-10010.

09169-10024

$2.20
