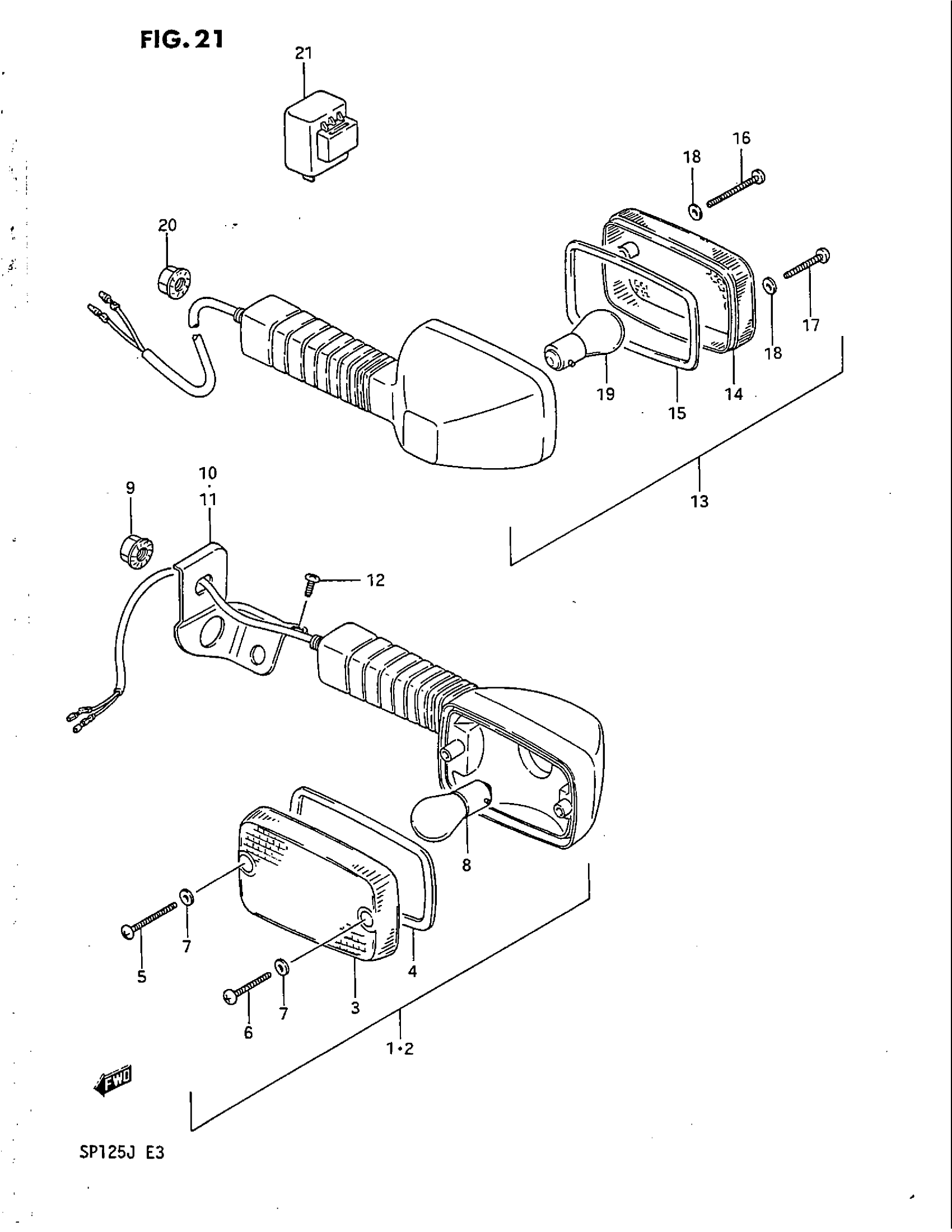

Suzuki SP125 (1988) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR TURN SIGNAL | Includes Item(s) 2 - 8 This part replaces 35601-44A31.

35603-44A31-999

Unavailable

2

LAMP ASSY, REAR TURN SIGNAL This part replaces 35601-14A53-999.

35603-44A31-999

Unavailable

3

LENS

35612-02181

Unavailable

4

GASKET

35613-48700

Unavailable

5

SCREW (4X38)

35623-02180

Unavailable

6

SCREW This part replaces 03211-04308.

03211-04306

$1.78

7

GASKET

35627-43010

$2.28

8

BULB (6V,21CP)

09471-06011

Unavailable

9

NUT This part replaces 08316-26105.

08316-2010B

$3.43

10

BRACKET, FRONT TURN RH This part replaces 35670-44A00.

35670-44A01

$11.30

11

BRACKET, FRONT TURN LH This part replaces 35680-44A00.

35680-44A01

$11.30

12

SCREW

02142-06108

$2.45

13

LAMP ASSY, REAR TURN SIGNAL | Includes Item(s) 14 - 18

35603-44A31-999

Unavailable

14

LENS

35612-02181

Unavailable

15

GASKET

35613-48700

Unavailable

16

SCREW (4X38)

35623-02180

Unavailable

17

SCREW This part replaces 03211-04308.

03211-04306

$1.78

18

GASKET

35627-43010

$2.28

19

BULB (6V,21CP)

09471-06011

Unavailable

20

NUT This part replaces 08316-26105.

08316-2010B

$3.43

21

RELAY ASSY,TRN This part replaces 38610-05200.

38610-05X50

Unavailable
